Grundfos 84Z06119 - BALDOR 56C
Grundfos 84Z06119 - BALDOR 56C
Grundfos 84Z06119 - BALDOR 56C
Grundfos 84Z06119 - BALDOR 56C

Grundfos 84Z06119 - BALDOR 56C

Save $457.24
GRUNDFOSSKU: 84Z06119
Price:
$536.76 $994.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

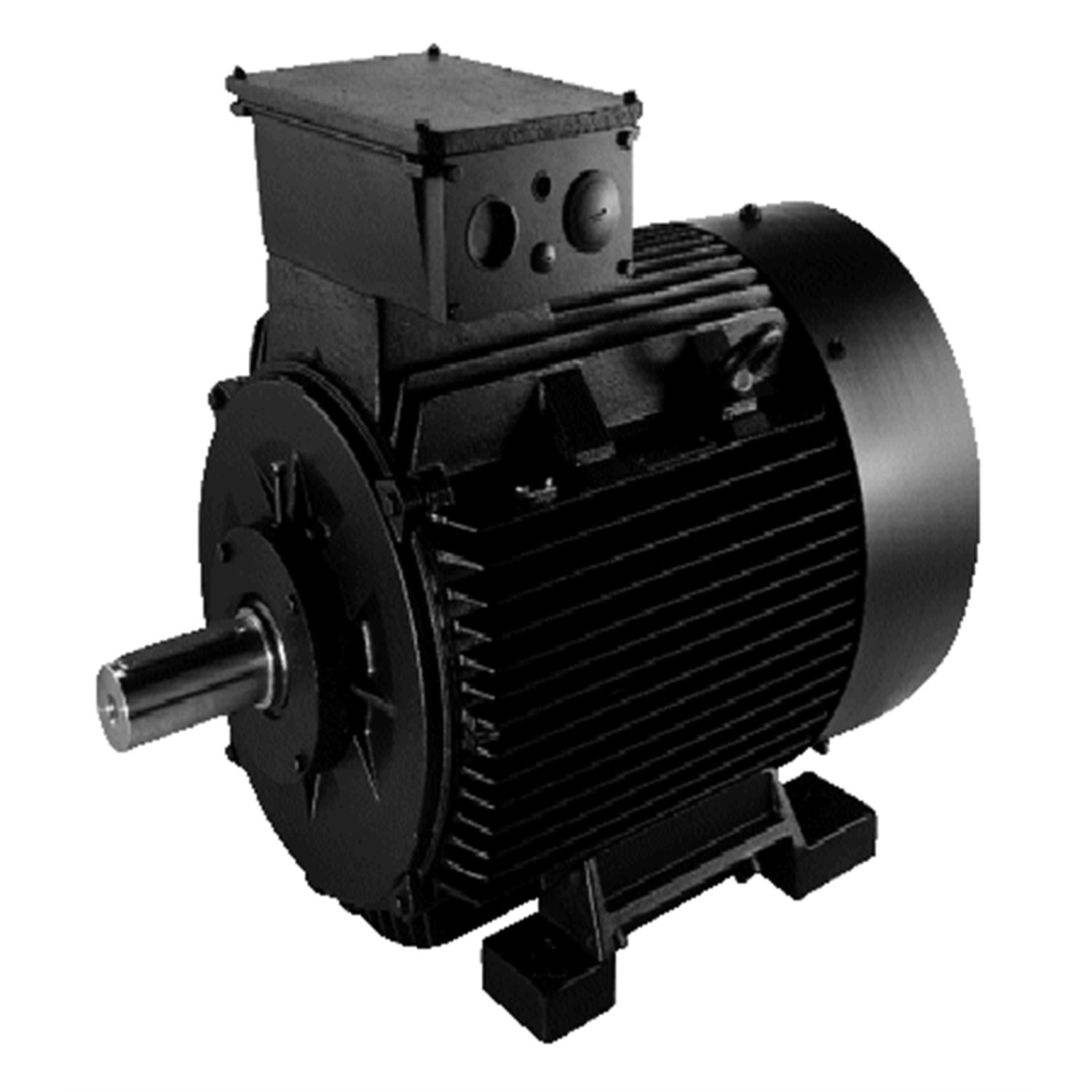

BALDOR 56C | The motor is a 3-phase AC standard motor.

EAN 5712605686576
Applications Motors
Material Pricing Group 3Z
Motor efficiency at full load 1 0.855
IE Efficiency class IE3 / NEMA Premium
Rated voltage 3 x 208-230/460 V
Flange size for motor 56C
Mount. design. acc. IEC 34-7 NEMA type C
Mains frequency 60 Hz
Insulation class (IEC 85) F
IE efficiency IE3 85.5%
Built-in motor protection NONE
Colour/Type Black
Net weight 38.1 lb
Bearing insulation type N-end STEEL BEARING
Number of poles 4
Rated speed 1760 rpm
Rated power - P2 0.75 kW
Enclosure class (IEC 34-5) IP54
Rated current 3.1-3/1.5 A
Service factor 1.15
Full load SF current 3.1-3.4/1.7 A
Motor type BALDOR
Range of ambient temperature -22 .. 131 °F
Shaft diameter 0.63 in
Approvals for motor CC
Diameter 0.63 in
Cooling TEFC
Motor 56C
Length of shaft end 1.88 in
Energy approvals for motor CC
Type Black

Motor Curves

DWiring Diagram
