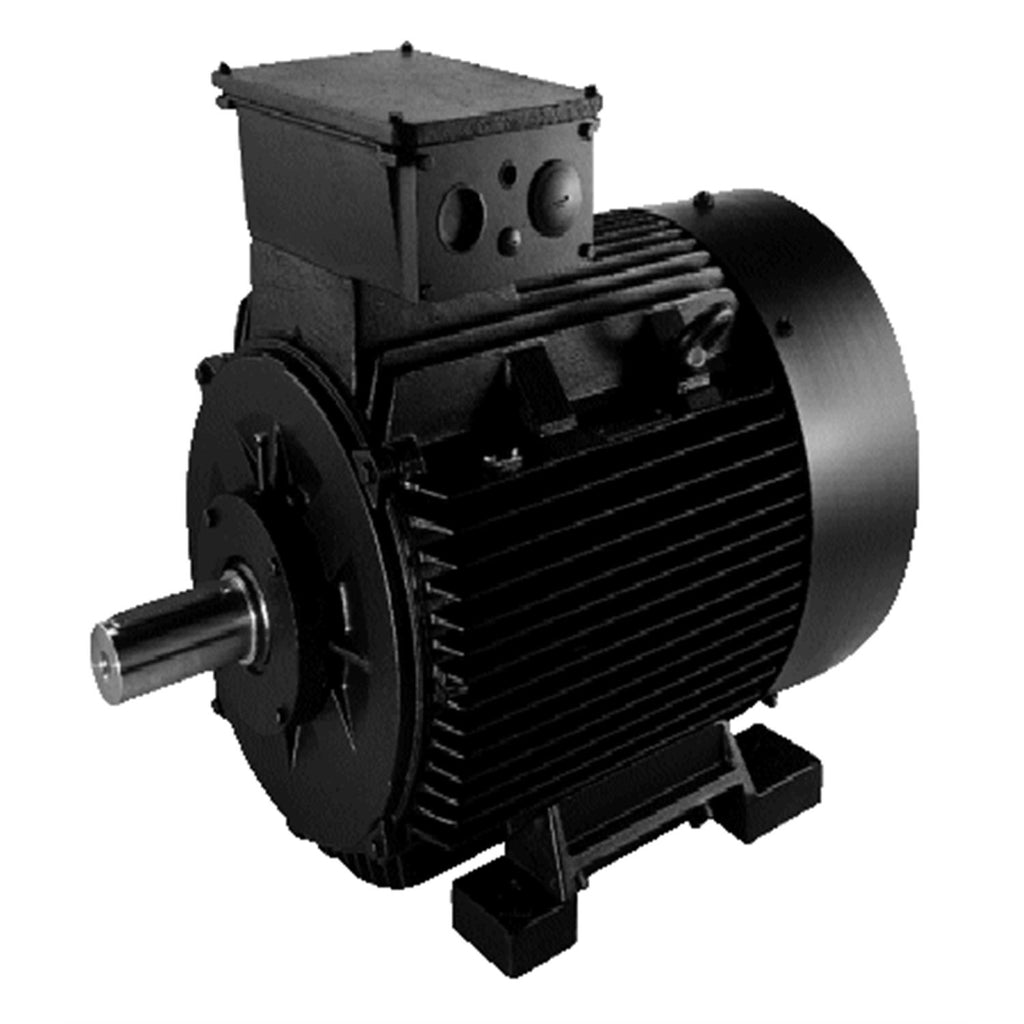

Grundfos 99039057 | Three‑Phase Motor | Baldor 449TSD | 300 HP

Save $28,487.80
GRUNDFOSSKU: 99039057

Price:
Sale price$33,442.20 Regular price$61,930.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99039057 is a three-phase motor listed as Baldor 449TSD for industrial pump motor applications; it suits technicians and maintenance teams replacing standard pump motors.

Key features

  • Designed as a heavy-duty, buy-out motor for industrial use
  • Listed under Grundfos Motors & Drives for common pump motor replacements
  • Provides reliable operation and straightforward installation to minimize downtime

Applications

Typical uses include industrial pumping systems, plant maintenance, and OEM motor replacement where a standard three-phase pump motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99039057

EAN 5712605586913
Applications Motors
Approvals for motor CC
Bearing insulation type N-end STEEL BEARING
Built-in motor protection PTC
Colour/Type Black
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CC
Flange size for motor 449TSD
Full load SF current 375/188 A
IE efficiency IE3 95
IE Efficiency class IE3 / NEMA Premium
Insulation class (IEC 85) F
Mains frequency 60 Hz
Material Pricing Group 3Z
Maximum ambient temperature 122 °F
Moment of inertia 40.79 lb ft²
Motor 449TSD
Motor efficiency at full load 1 0.958
Motor type BALDOR
Mount. design. acc. IEC 34-7 NEMA type D
Net weight 2990.0 lb
Number of poles 2
Power factor 1 0.9
Product family Other standard motor
Rated current 326 A
Rated power - P2 224 kW
Rated speed 3570 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Thermal protec external
Tropic protec NO
Type Black

Motor Curves

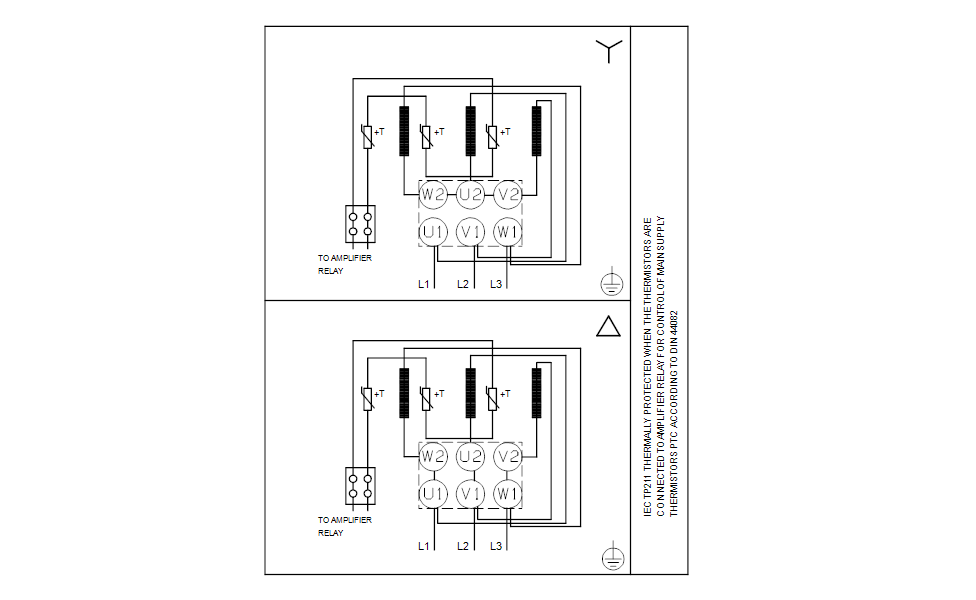

DWiring Diagram
