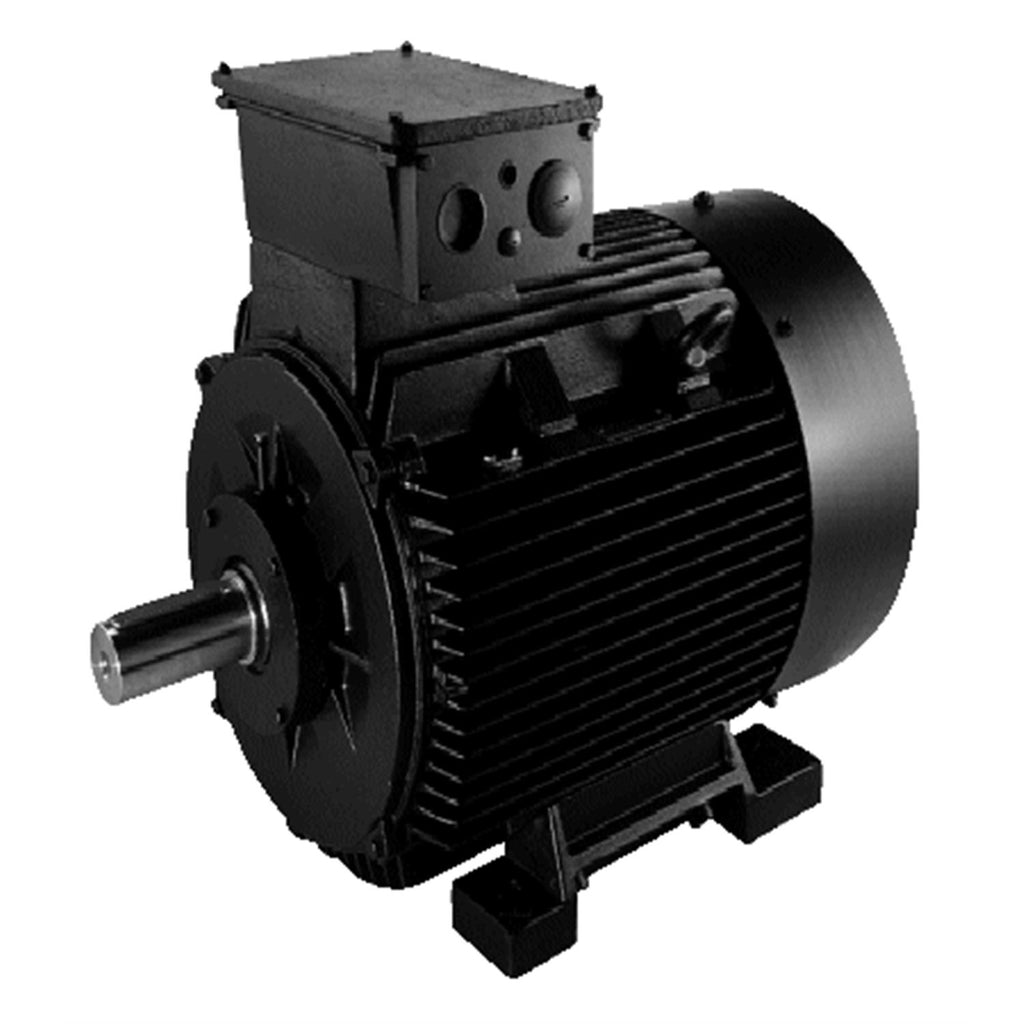

Grundfos 99039040 | Three‑Phase Motor | Baldor 449TSD | 250 HP

Save $22,954.00
GrundfosSKU: 99039040

Price:
Sale price$26,946.00 Regular price$49,900.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
99039040 · Grundfos Accessory / Spare Part / Control
ACC251HP460V3.0-Phase60 HzIE3 / NEMA PremiumTEFC

The Grundfos 99039040 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3.0-Phase, 60 Hz.

Power
251HP
Voltage
460V
Phase
3.0-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 99039040
Series: ACC
Technical Specifications
Model Number 99039040
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 251HP
Voltage 460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3575rpm
Full Load Current 367A
Motor Type BALDOR
Motor Protection PTC
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 95.9%
Insulation Class F
Protection Class (IP) TEFC
Max Ambient Temperature 122°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 99039040
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712605586791
Applications Motors
Approvals for motor CC
Bearing insulation type N-end STEEL BEARING
Built-in motor protection PTC
Colour/Type Black
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CC
Flange size for motor 449TSD
Full load SF current 422/211 A
IE efficiency IE3 95.9%
IE Efficiency class IE3 / NEMA Premium
Insulation class (IEC 85) F
Mains frequency 60 Hz
Material Pricing Group 3Z
Maximum ambient temperature 122 °F
Moment of inertia 33.51 lb ft²
Motor 449TSD
Motor efficiency at 1/2 load 0.957
Motor efficiency at 3/4 load 0.96
Motor efficiency at full load 1 0.959
Motor type BALDOR
Mount. design. acc. IEC 34-7 NEMA type D
Net weight 2930.0 lb
Number of poles 2
Power factor 1 0.91
Product family Other standard motor
Rated current 367 A
Rated power - P2 187 kW
Rated speed 3575 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Thermal protec external
Tropic protec NO
Type Black
