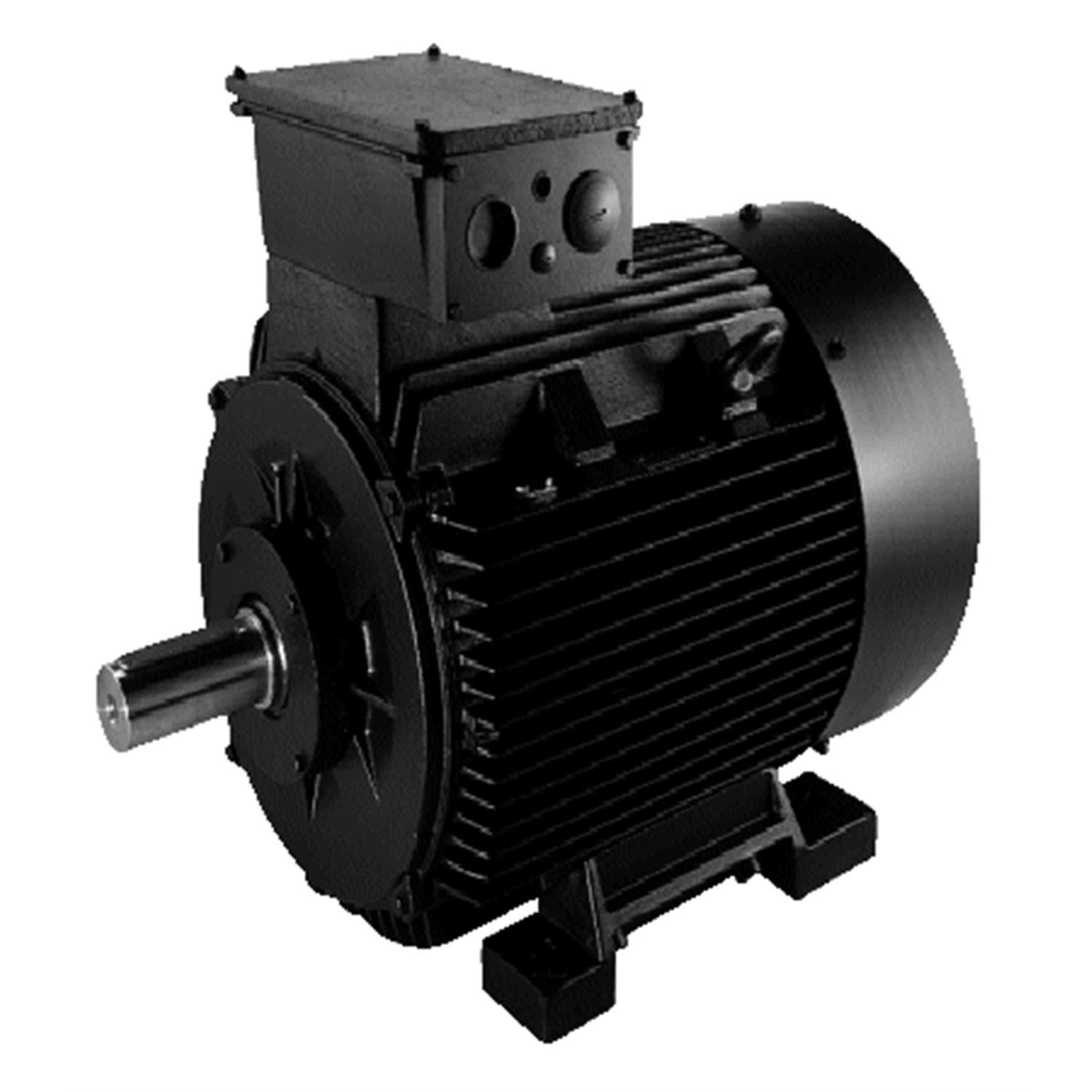

Grundfos 85600H26 - BALDOR 284TS
Grundfos 85600H26 - BALDOR 284TS
Grundfos 85600H26 - BALDOR 284TS
Grundfos 85600H26 - BALDOR 284TS

Grundfos 85600H26 - BALDOR 284TS

Save $2,520.80
GRUNDFOSSKU: 85600H26
Price:
$2,959.20 $5,480.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

BALDOR 284TS | The motor is a 3-phase AC standard motor.

EAN 5700394567800
Applications Motors
Material Pricing Group 3Z
Motor efficiency at full load 1 0.93
IE Efficiency class IE3 / NEMA Premium
Rated voltage 3 x 230/460 V
Flange size for motor 284TS
Mount. design. acc. IEC 34-7 NEMA type C
Mains frequency 60 Hz
Insulation class (IEC 85) F
IE efficiency IE3 93%
Built-in motor protection NONE
Colour/Type Black
Net weight 328.0 lb
Bearing insulation type N-end STEEL BEARING
Number of poles 2
Rated speed 3530 rpm
Rated power - P2 18.5 kW
Enclosure class (IEC 34-5) IP54
Rated current 56/28 A
Service factor 1.15
Full load SF current 64.4/32.2 A
Motor type BALDOR
Range of ambient temperature -22 .. 104 °F
Tropic protec NO
Shaft diameter 1.62 in
Approvals for motor CC
Diameter 1.62 in
Cooling TEFC
Motor 284TS
Length of shaft end 3 in
Energy approvals for motor CC
Type Black
