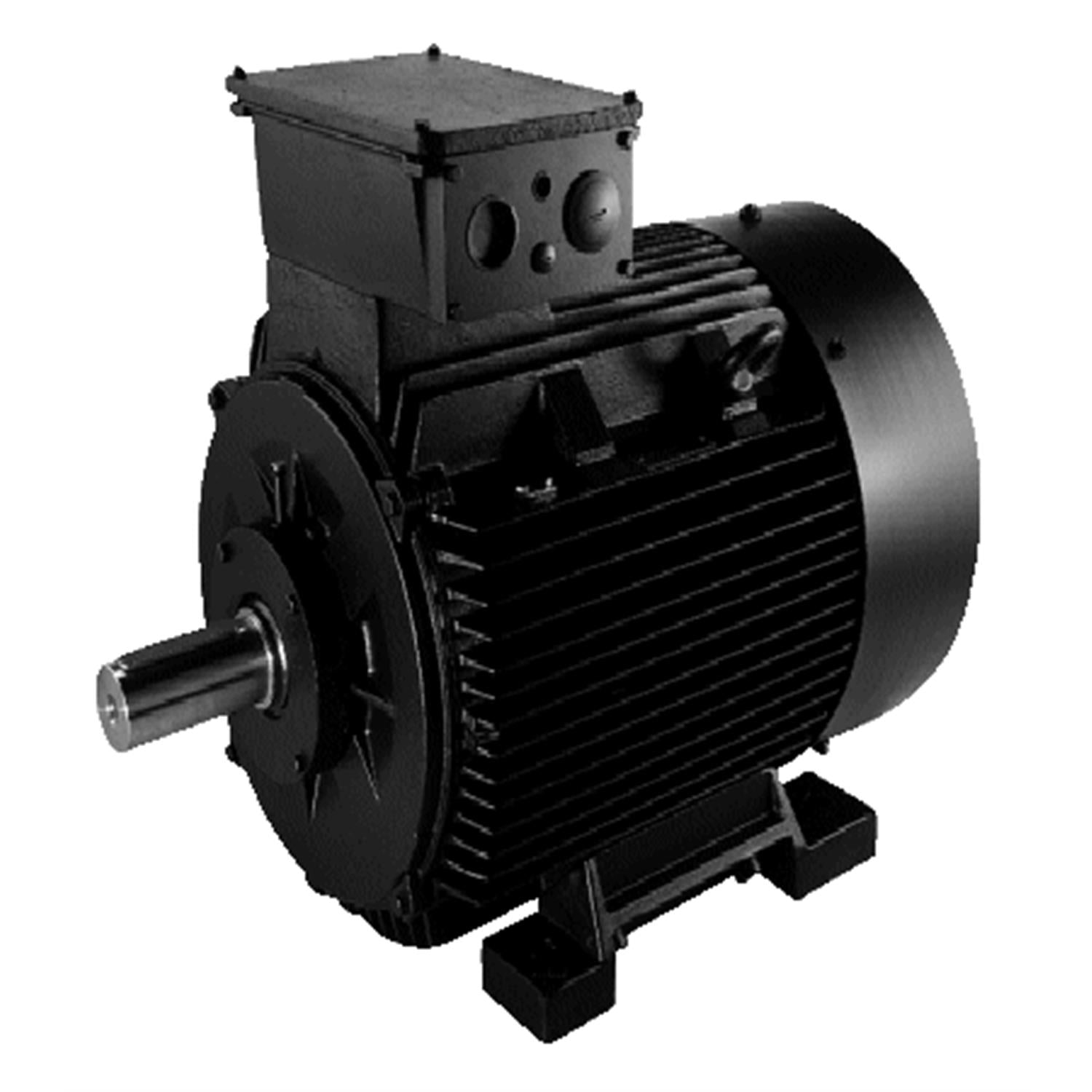

![Grundfos 85600H24 - BALDOR 254TC]()
![Grundfos 85600H24 - BALDOR 254TC]()
![Grundfos 85600H24 - BALDOR 254TC]()
![Grundfos 85600H24 - BALDOR 254TC]()
Description
BALDOR 254TC | The motor is a 3-phase AC standard motor.
EAN
5700394567787
Applications
Motors
Material Pricing Group
3Z
Rated full-load torque 1
22.13 ft lb
Motor efficiency at full load 1
0.91
IE Efficiency class
IE3 / NEMA Premium
Power factor 1
0.87
Rated voltage
3 x 208-230/460 V
Flange size for motor
254TC
Thermal protec
NONE
Mount. design. acc. IEC 34-7
NEMA type C
Moment of inertia
0.55 lb ft²
Locked-rotor torque
1.64
Starting current
6.8
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
4.77
IE efficiency
IE3 91%
Motor efficiency at 1/2 load
91-91 %
Built-in motor protection
NONE
Colour/Type
Black
Net weight
244.0 lb
Bearing insulation type N-end
STEEL BEARING
Number of poles
2
Rated speed
3520 rpm
Rated power - P2
11 kW
Enclosure class (IEC 34-5)
IP54
Motor efficiency at 3/4 load
91.6-91.6 %
Rated current
38
Service factor
1.15
Cable gland entry
Knock out
Full load SF current
44-40/20 A
Motor type
BALDOR
Range of ambient temperature
-4 .. 104 °F
Tropic protec
NO
Shaft diameter
1.62 in
Approvals for motor
CC
Model
B
Diameter
1.62 in
Cooling
IC 411
Motor
254TC
Cos phi 1/2
0.77-0.77
Length of shaft end
4 in
Energy approvals for motor
CC
Type
Black
Cos phi 3/4
0.85-0.85
