Description

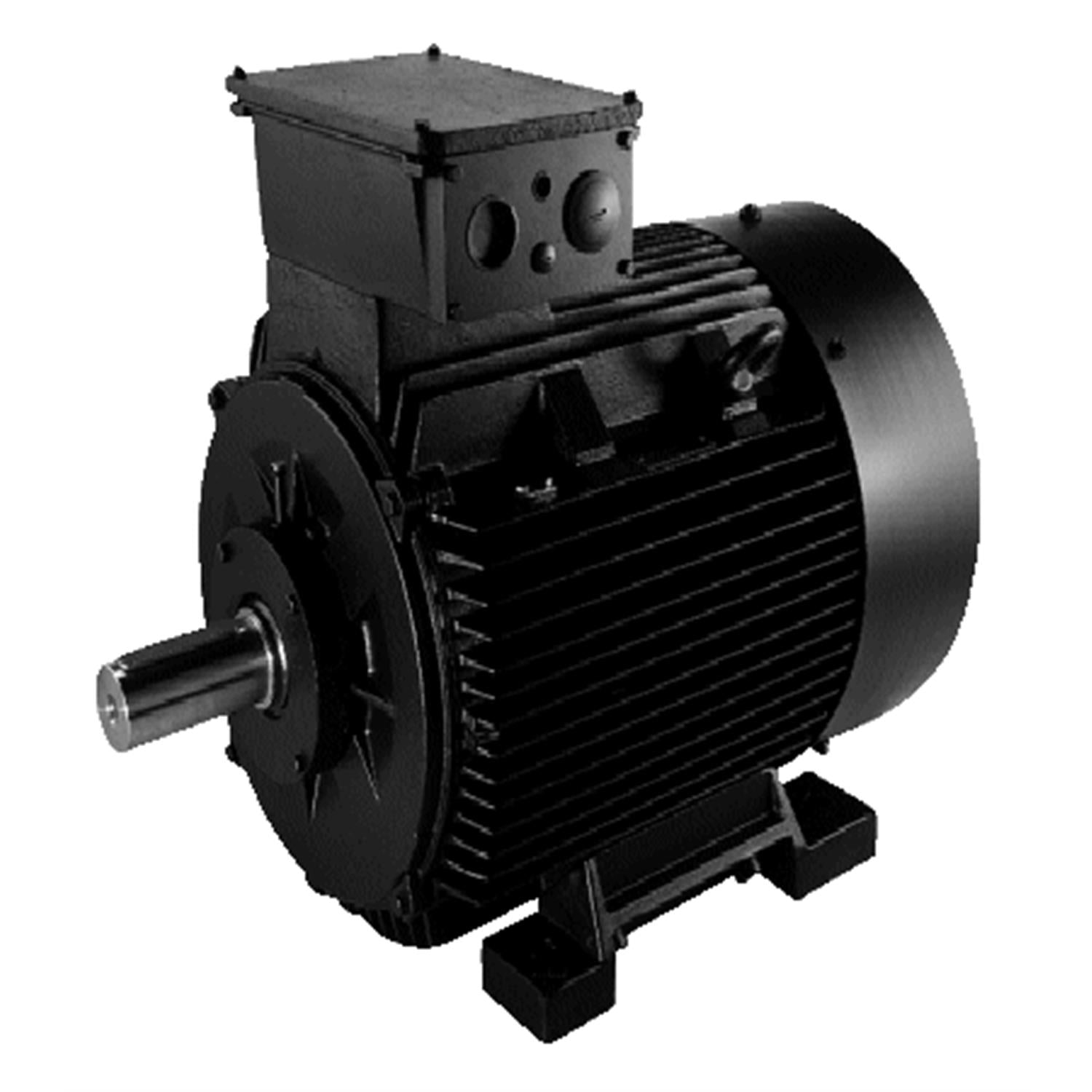

The Grundfos 84Z03568 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 230/460V, 3-Phase, 60 Hz.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 84Z03568 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 20HP |
| Voltage | 230/460V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3525rpm |
| Full Load Current | 47/23.5A |
| Motor Type | BALDOR |
| Motor Efficiency Class | IE3 / NEMA Premium |
| Motor Efficiency | IE3 91,7% |
| Insulation Class | F |
| Protection Class (IP) | ODP |
| Max Ambient Temperature | 104°F |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature per nameplate or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700394566346
- Applications
- Motors
- Approvals for motor
- CC
- Bearing insulation type N-end
- STEEL BEARING
- Built-in motor protection
- NONE
- Colour/Type
- Black
- Cooling
- ODP
- Diameter
- 1.62 in
- Energy approvals for motor
- CC
- Flange size for motor
- 254TC
- Full load SF current
- 54/27 A
- IE efficiency
- IE3 91
- IE Efficiency class
- IE3 / NEMA Premium
- Insulation class (IEC 85)
- F
- Length of shaft end
- 3.75 in
- Mains frequency
- 60 Hz
- Material Pricing Group
- 3Z
- Maximum ambient temperature
- 104 °F
- Motor
- 254TC
- Motor efficiency at full load 1
- 0.917
- Motor type
- BALDOR
- Mount. design. acc. IEC 34-7
- NEMA type C
- Net weight
- 221.0 lb
- Number of poles
- 2
- Product family
- Other standard motor
- Rated current
- 47/23.5 A
- Rated power - P2
- 15 kW
- Rated speed
- 3525 rpm
- Rated voltage
- 3 x 230/460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Service factor
- 1.15
- Shaft diameter
- 1.62 in
- Tropic protec
- NO
- Type
- Black
Wiring Diagram
