Grundfos 84Z06121 - BALDOR 184TC
Grundfos 84Z06121 - BALDOR 184TC
Grundfos 84Z06121 - BALDOR 184TC
Grundfos 84Z06121 - BALDOR 184TC

Grundfos 84Z06121 - BALDOR 184TC

Save $915.40
GRUNDFOSSKU: 84Z06121
Price:
$1,074.60 $1,990.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

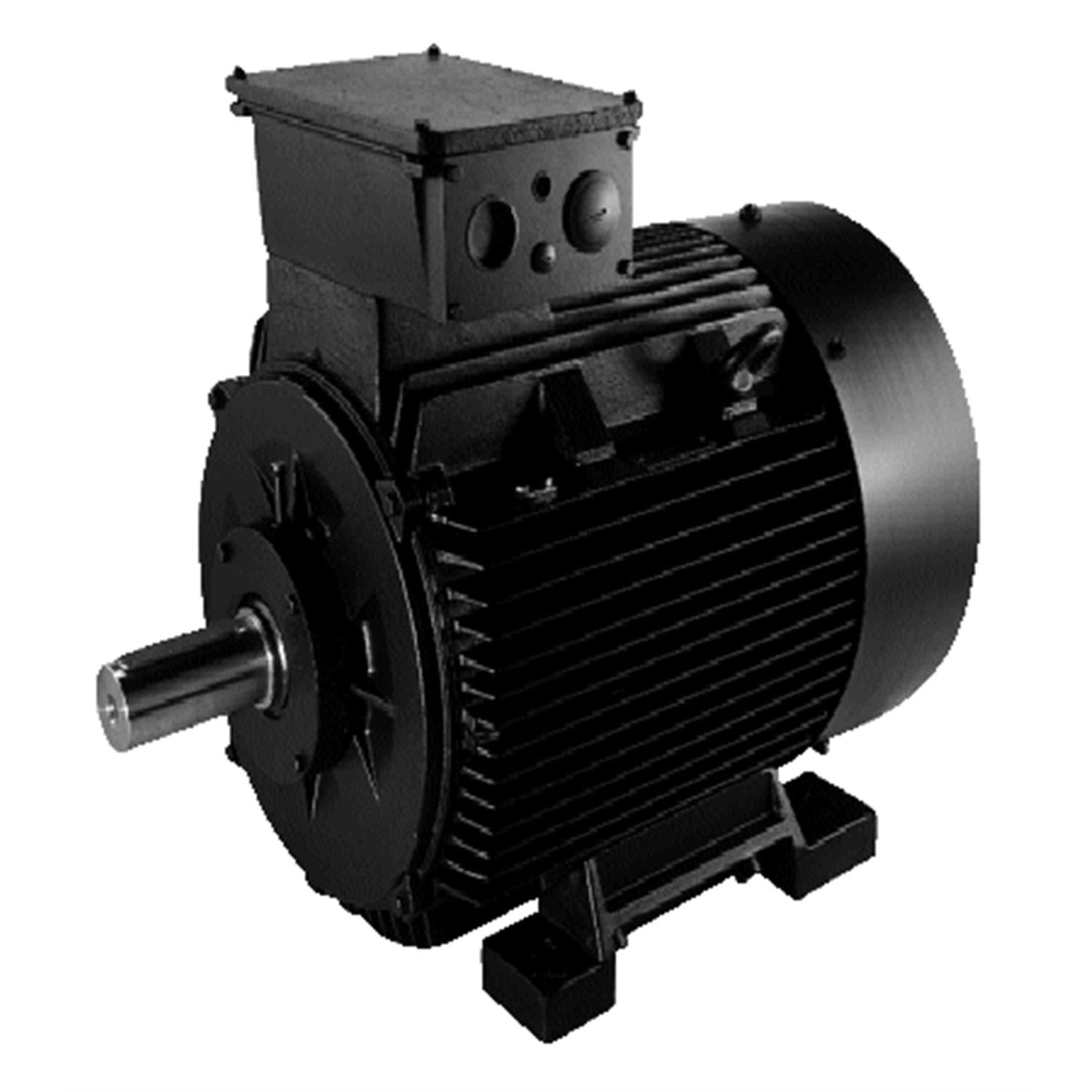

BALDOR 184TC | The motor is a 3-phase AC standard motor.

EAN 5712605686590
Applications Motors
Material Pricing Group 3Z
Motor efficiency at full load 1 0.895
IE Efficiency class NEMA Premium / IE3 60Hz
Maximum ambient temperature 104 °F
Rated voltage 3 x 208-230/460 V
Flange size for motor 184TC
Mount. design. acc. IEC 34-7 NEMA type C
Mains frequency 60 Hz
Insulation class (IEC 85) F
Built-in motor protection NONE
Colour/Type Black
Net weight 93.9 lb
Bearing insulation type N-end STEEL BEARING
Number of poles 4
Rated speed 1750 rpm
Rated power - P2 3.7 kW
Enclosure class (IEC 34-5) IP54
Rated current 14.2-13.8/6.9 A
Service factor 1.15
Full load SF current 21.4-19.6/9.8 A
Motor type BALDOR
Tropic protec NO
Shaft diameter 1.13 in
Approvals for motor CC
Diameter 1.13 in
Cooling TEFC
Motor 184TC
Length of shaft end 2.62 in
Energy approvals for motor CC
Type Black

Motor Curves

DWiring Diagram
