Grundfos 97703094 - Auto Coupling Set

GRUNDFOSSKU: 97703094

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

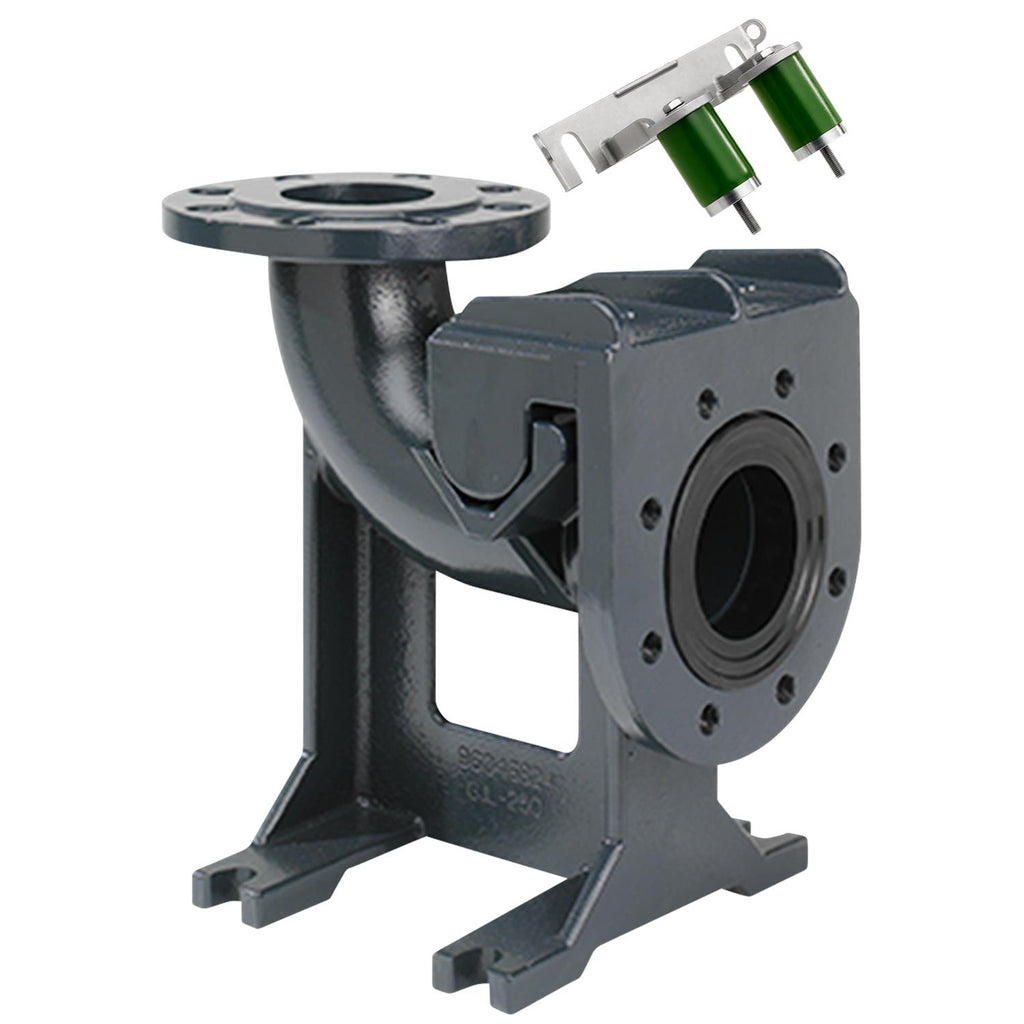

Grundfos 97703094 - Auto Coupling Set is an accessory kit for submersed Grundfos wastewater pumps, providing the mounting components installers and service technicians need for guide rail systems.

Key features

  • Includes baseplate, guide claw, upper guide rail holder, bolts and gasket for pump mounting
  • Designed for submersed wastewater pump installations and compatible with standard guide rail configurations
  • Provides secure, repeatable engagement for faster service and reduced downtime

Applications

Used in wastewater and sewage lift stations, sump and pump station installations, and routine pump servicing where guide rail mounting is required.

Compatibility note: Match the exact model or SKU before ordering; if unsure, call (781) 281-8905 for assistance. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97703094

EAN 5700310323657
Applications Accessories
Connection 6 inch
Fits to following products S
Flange standard ANSI-B 16.5
Gasket Rubber
Gross weight 197.0 lb
Material Cast iron
Maximum operating pressure 10 bar
Net weight 197.0 lb
Number of gaskets 1
Number of screws 8
Product family Pumps accessories
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Standard ANSI-B 16.5
Surface treatment Powder coated
Type of inlet connection ANSI
Type of outlet connection ANSI

Motor Curves

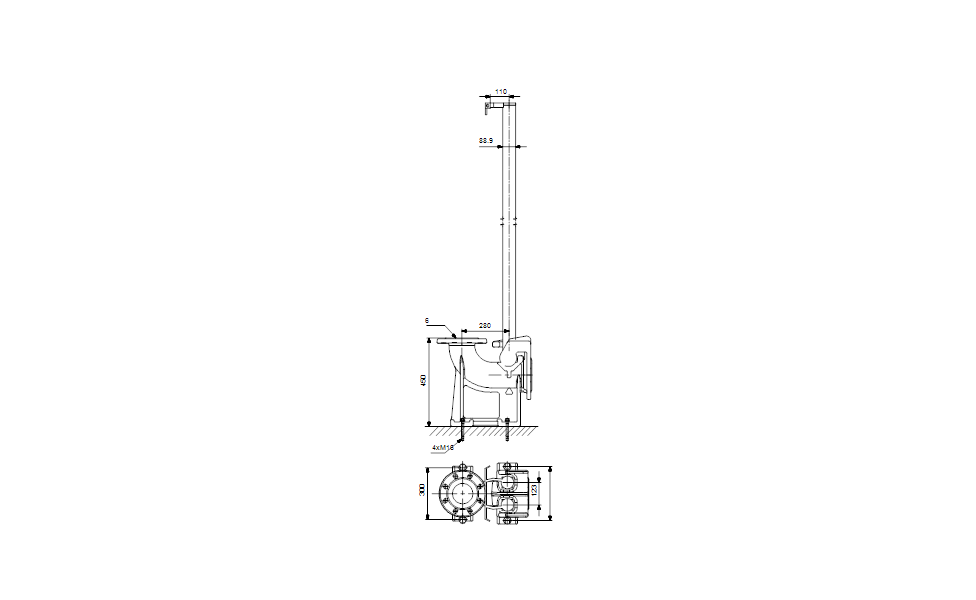

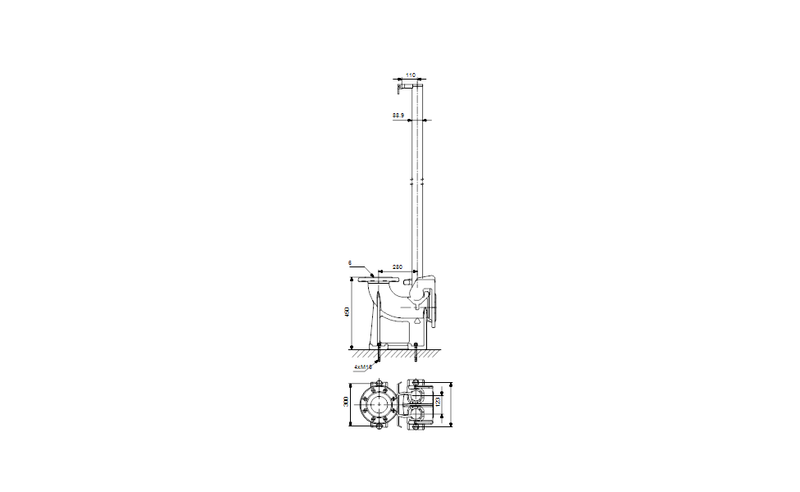

Dimensional Drawing
