Aquamatic VAVF-0001-C0000 – 2″ Female NPT – Normally Open, Spring Assist Open – 425 A Body 425A Cast Iron Brass Stainless Steel Nitrile

AqMaticSKU: 4500331

Price:
Sale price$577.30
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

AquaMatic VAV Air Valves:

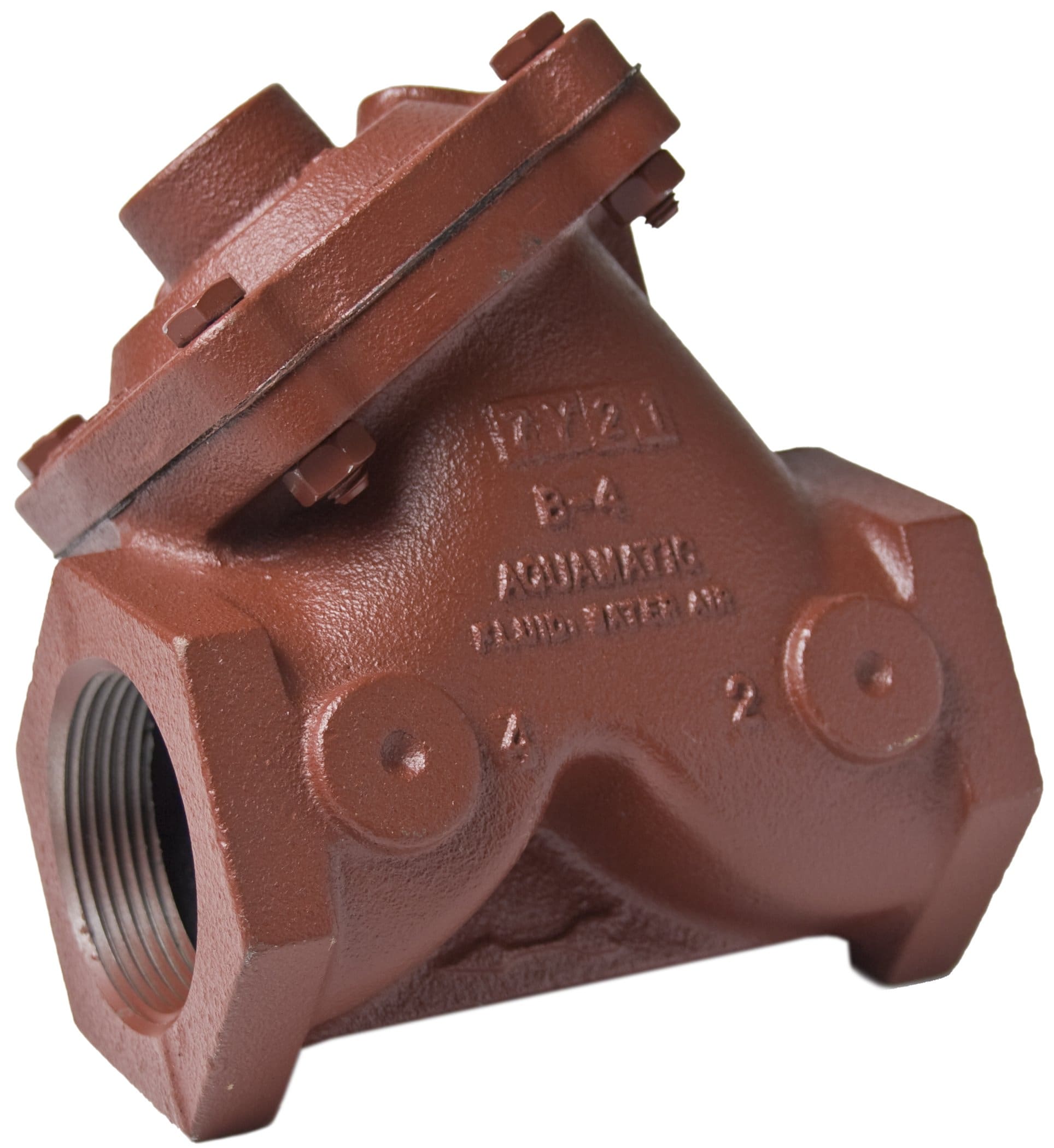

AquaMatic VAVF-0001-C0000 – 2″ Female NPT – Normally Open, Spring Assist Open – 425 A Body

Product SKU: 4500331

  • Low Pressure Loss –Y-pattern diaphragm valve features a large seat opening and high lift-disc for higher flow rates at a lower pressure loss than other comparable valves.
  • Cost-Effective Design –In initial cost as well as lifetime maintenance expenses.
  • Durable – Cast iron, brass, stainless steel and nitrile elastomer components, giving an unparalleled service life of 3 years or longer depending on the application’s environment.
  • Positive Control – Separate valve flow and control chambers permits positive sealing without springs. The optional spring-assist open feature is available for low pressure and selfdraining applications.
  • Long Diaphragm Life – Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line.
Supplier Part Number 4500331
Category VAV Air Valves
Subcategory VAV F - 2" 425-A Body
Approximate Weight (lbs) 15
Model 425
Model/Part Number VAVF-0001-C0000
Pipe Connection Female NPT
Pipe Length 6.62″
Pipe Size 2″
Seal/Diaphragm/Disk (kit suffix) FKM / FKM / Hycar (RAHT)
Valve Option Normally Open, Spring Assist Open
