Aquamatic V42E-0040-00000 – 1/2″ – Normally Closed, Limit Stop Valve Cast Iron Brass Stainless Steel Nitrile

AqMaticSKU: 1072814

Price:
Sale price$338.69
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

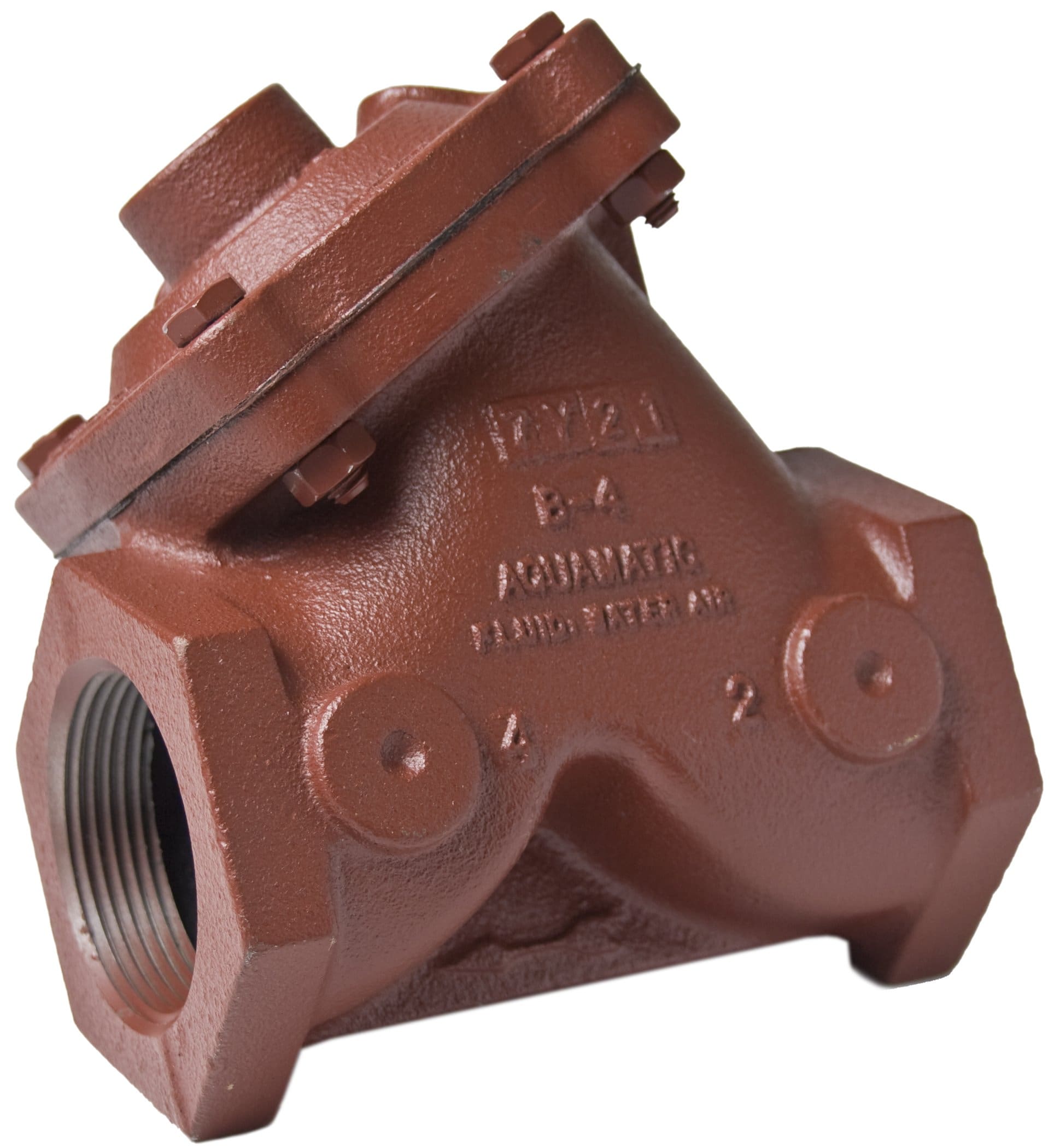

AquaMatic V42 Metal Diaphragm Valves:

AquaMatic V42E-0040-00000 – 1 1/2″ – Normally Closed, Limit Stop Valve

Product SKU: 1072814

  • Low Pressure Loss – The unique AquaMatic Diaphragm Valve’s y-pattern design, with large seat opening and high lift disc, permits higher flow rates at lower pressure loss than other comparable valves.
  • Cost-Effective Design – The AquaMatic V42 Valve is a cost-effective solution in initial purchase price as well as in lifetime maintenance. All components can be serviced while the valve is in-line.
  • Durable – The AquaMatic V42 Valve features cast iron, brass, stainless steel, and nitrile elastomer components. The valve features an average life of 3 years or longer depending upon cycling rate and environment.
  • Pipe Sizes – 3/4- to 3-inch threaded (NPT or BSP); 3- to 4-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504.
Supplier Part Number 1072814
Category V42 Metal Diaphragm Valves
Subcategory V42 E - 1.5"
Approximate Weight (lbs) 6.5
Body & Cap Mat’l Cast Iron – Red Primer
Drill & Tap Bosses None
Internal Parts Brass, Stainless Steel
Model 424
Model/Part Number V42E-0040-00000
Pipe Connection Female NPT Threaded
Pipe Size 1 1/2″
Seal/Diaphragm/Disk (kit suffix) Buna / Buna / Buna (RA)
Solenoid Feature None
Solenoid Option None
Valve Option Normally Closed, Limit Stop
