Aquamatic V42B-0000-00011 – 3/4″ Normally Open – Eo Solenoid – Buna N Cast Iron Brass Stainless Steel Nitrile Industrial Use

This item ships free!
AqMaticSKU: 1072542

Price:
Sale price$514.71
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

AquaMatic V42 Metal Diaphragm Valves:

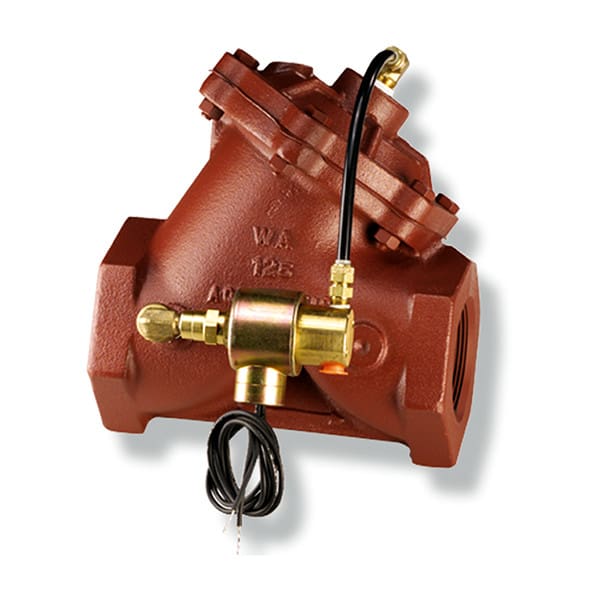

AquaMatic V42B-0000-00011 – 3/4″ Normally Open – EO Solenoid – BUNA N

Product SKU: 1072542

The AquaMatic V42B-0000-00011, a 3/4″ Normally Open Valve with Energize to Open Solenoid feature, is engineered for efficient fluid or gas control, with a durable design that ensures longevity and optimal performance in industrial applications.

  • Low Pressure Loss – The unique AquaMatic Diaphragm Valve’s y-pattern design, with large seat opening and high lift disc, permits higher flow rates at lower pressure loss than other comparable valves.
  • Cost-Effective Design – The AquaMatic V42 Valve is a cost-effective solution in initial purchase price as well as in lifetime maintenance. All components can be serviced while the valve is in-line.
  • Durable – The AquaMatic V42 Valve features cast iron, brass, stainless steel, and nitrile elastomer components. The valve features an average life of 3 years or longer depending upon cycling rate and environment.
  • Pipe Sizes – 3/4- to 3-inch threaded (NPT or BSP); 3- to 4-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504.
Supplier Part Number 1072542
Category V42 Metal Diaphragm Valves
Subcategory V42 B - 3/4"
Bosses Drilled & Tapped None
Configuration Normally Open
Connectors Female N.P.T
Diaphragm, Seals & Disc BUNA N Diaphragm, Seals & Discs
Float Features 115V/60 HZ, NEMA 1
Internal Parts Brass & Stainless Steel
Model/Part Number V42B-0000-00011
Pipe Size 3/4 Inch
Solenoid & Float Options Energize to Open (EO)
Solenoid / Float? Solenoid Valve
