Description

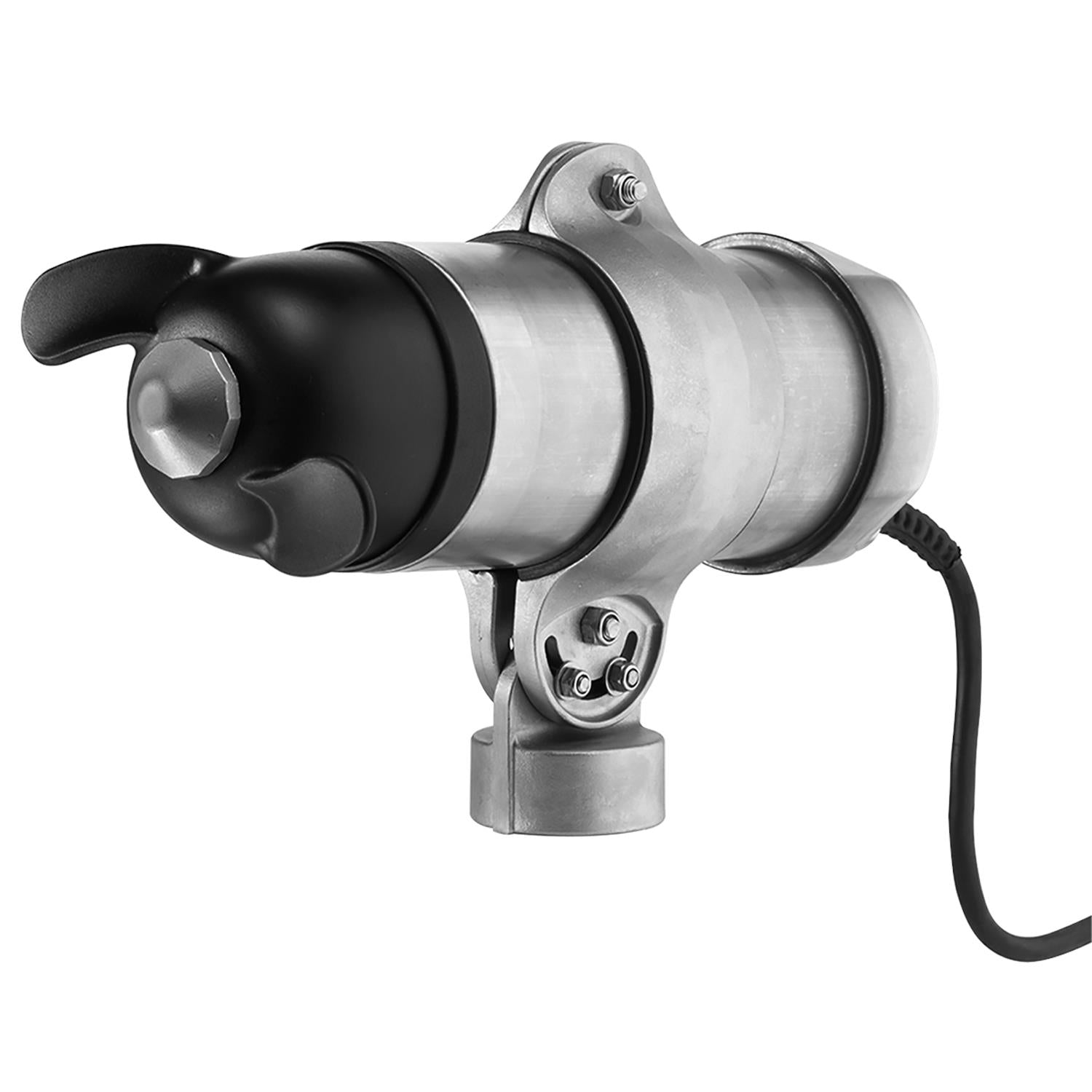

The Grundfos 99056115 (AMD.08.16 .1730.T.6.0H.A) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3-Phase, 60 Hz. Applications include Industrial wastewater treatment & reuse.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 99056115 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 0.898HP |
| Voltage | 460V |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Full Load Current | 1.54A |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Nominal Flow | 476US gpm |
| Max Fluid Temperature | 104°F |
| Approvals / Certifications | CE, EAC |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5712605920267
- Approvals
- CE
- Axial trust force
- 90 N
- Built-in motor protection
- NONE
- Cable type
- H07RN8-F
- Diameter
- 0.63 in
- Enclosure class (IEC 34-5)
- IP68
- Explosion proof
- no
- Fits column profile tube, size
- 60/60 mm
- Insulation class (IEC 85)
- F
- Length of cable
- 10 m
- Liquid temperature range
- 41 .. 104 °F
- Mains frequency
- 60 Hz
- Material Pricing Group
- 7N
- Max starts per hour
- 15
- Maximum installation depth
- 10 m
- Moisture sensor
- without moisture sensors
- Motor
- AISI AISI 316L
- Net weight
- 23.8 lb
- Number of leads
- 4X1
- Number of poles
- 4
- pH-value range
- 45203
- Power 1
- 0.84 kW
- Power factor 1
- 0.73
- Power input - P1
- 0.84 kW
- Primary shaft seal
- SIC/SIC
- Propeller diameter
- 16 mm
- Propeller speed
- 1730 rpm
- Rated current
- 1.54 A
- Rated flow
- 476 US gpm
- Rated full-load torque 1
- 3.688 ft lb
- Rated power - P2
- 0.67 kW
- Rated voltage
- 3 x 460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Size
- 60/60 mm
- Starting current
- 9.3 A
- Thermal protec
- internal
- Thrust to power
- 0.107
- Type
- H07RN8-F
- Type of cable plug
- NONE
- Voltage tolerance
- +10/-10 %
- Water-in-oil sensor
- without water-in-oil sensor
Dimensional Drawing
A Wide Range (English) (Product brochure)
GRUNDFOS AMD, AMG, and AFG ranges (Product brochure)
GRUNDFOS PUMPS FOR MINING (Product brochure)
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Process Driven Engineering (Leaflet)
Water Utility range (Product brochure)
AMD Mixer (Multi language) (AMD.05-08) (Installation and operating instructions)
Cranes for mixers, flowmakers and recirculation pumps (Safety instructions)
