Description

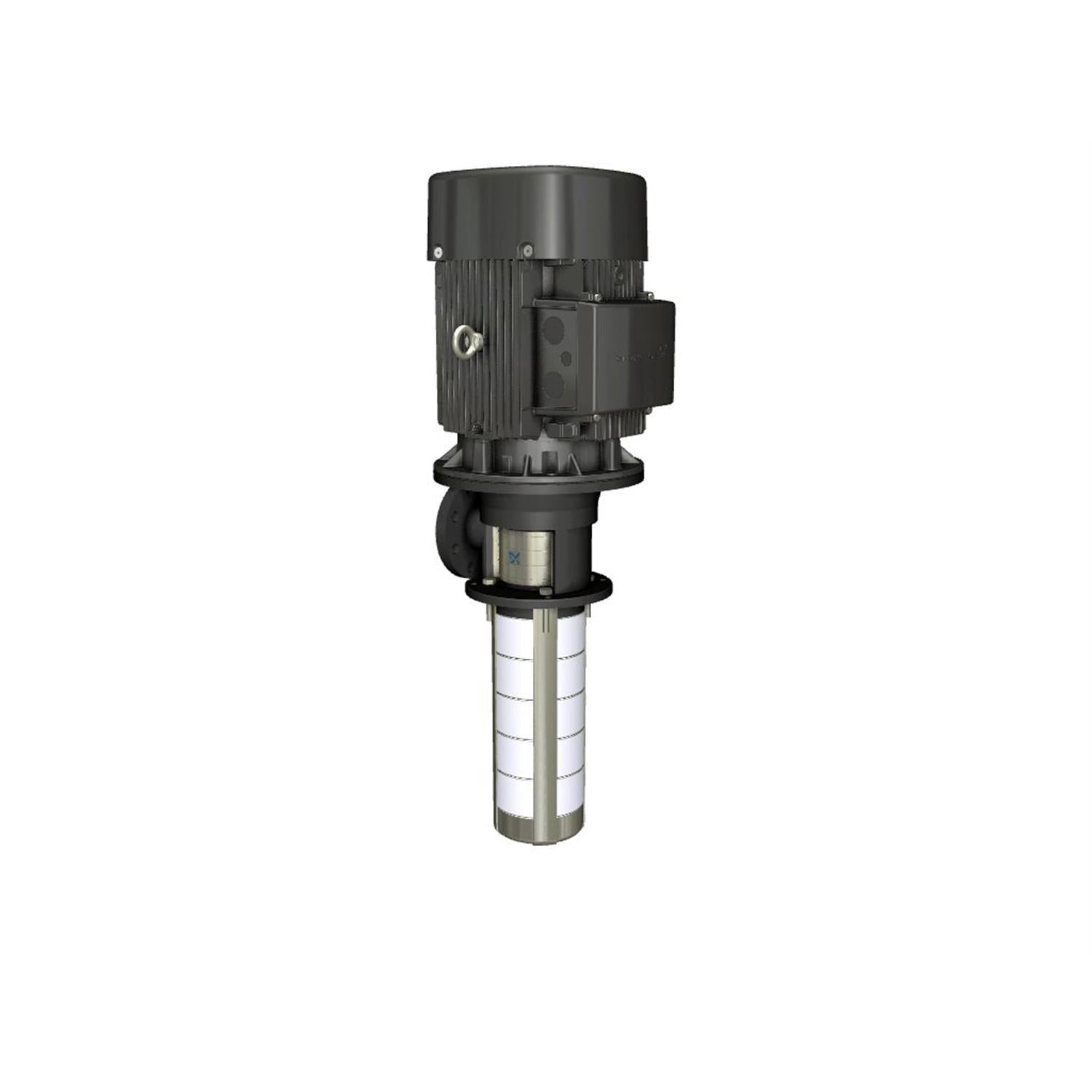

The Grundfos 98520672 (98520672) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 238US gpm at 187.7ft. Rated 220-277D/380-480YV, 3.0-Phase, 60 Hz.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 98520672 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 20HP |
| Voltage | 220-277D/380-480YV |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3520-3550rpm |
| Pump Speed | 3528rpm |
| Full Load Current | 48,5-39,0/28,0-22,4A |
| Motor Type | 160BB |
| Motor Protection | PTC |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 90.2-91.0% |
| Insulation Class | F |
| Protection Class (IP) | IP55 Dust/Jetting |
| Nominal Flow | 238US gpm |
| Nominal Head | 187.7ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 140°F |
| Outlet Connection | DN 80 |
| Pipe Pressure Rating | PN 40 |
| Pipe Standard | DIN |
| Impeller Material | Stainless steel |
| Shaft Seal | HUUV |
| Approvals / Certifications | CE, EAC, UKCA |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 220-277D/380-480YV, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5711496488467
- Density
- 62.29 lb/ft³
- Gross weight
- 402.0 lb
- Immersion depth
- 19.1 in
- Liquid temperature range
- 14 .. 194 °F
- Material Pricing Group
- 32
- Max pressure at stated temp
- 363 psi / 194 °F
- Maximum ambient temperature
- 140 °F
- Net weight
- 346.0 lb
- Rated flow
- 238 US gpm
- Rated head
- 187.7 ft
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
