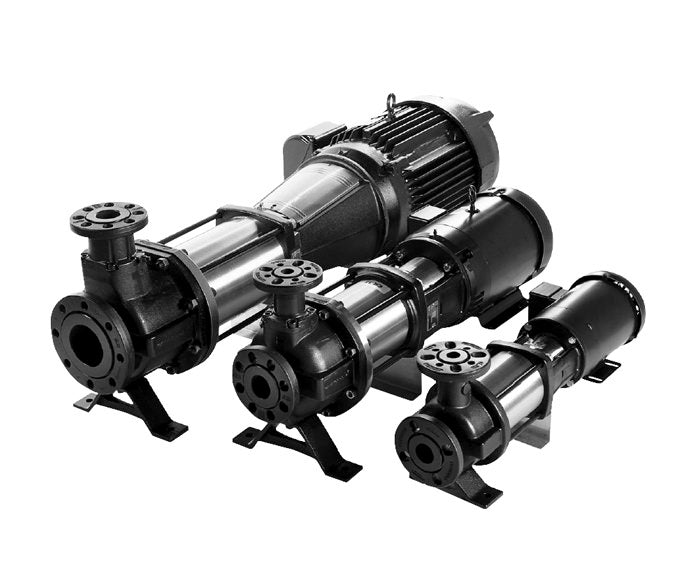

Grundfos Pumps CRN5-12 H-GA-G-E-HQQE 1x 230 60HZ Horizontal Multistage Centrifugal Pump 97734768

This item ships free!
GrundfosSKU: 97734768

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
97734768 · Grundfos Accessory / Spare Part / Control
ACC5HP208-230V1-Phase60 HzTEFCStainless steel

The Grundfos 97734768 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 30.8US gpm at 291ft. Rated 208-230V, 1-Phase, 60 Hz.

Power
5HP
Voltage
208-230V
Phase
1-Phase
Max Flow
30.8US gpm
Max Head
291ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 97734768
Series: ACC
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 97734768
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 5HP
Voltage 208-230V
Phase 1-Phase
Frequency 60 Hz
Motor Speed 3450rpm
Pump Speed 3468rpm
Full Load Current 24,0-22,0A
Motor Type BALDOR
Motor Efficiency 80%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 30.8US gpm
Nominal Head 291ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 1 1/2inch
Outlet Connection 1inch
Pipe Pressure Rating PN 16
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 97734768
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5710623058139
Applications Chemical Delivery / Transfer, Filtration Systems, HVAC, Industrial Processes, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
Connections_Discharge_Inches 1-1/2\" X 1\"
Rated power - P2 5
Voltage 208/230
