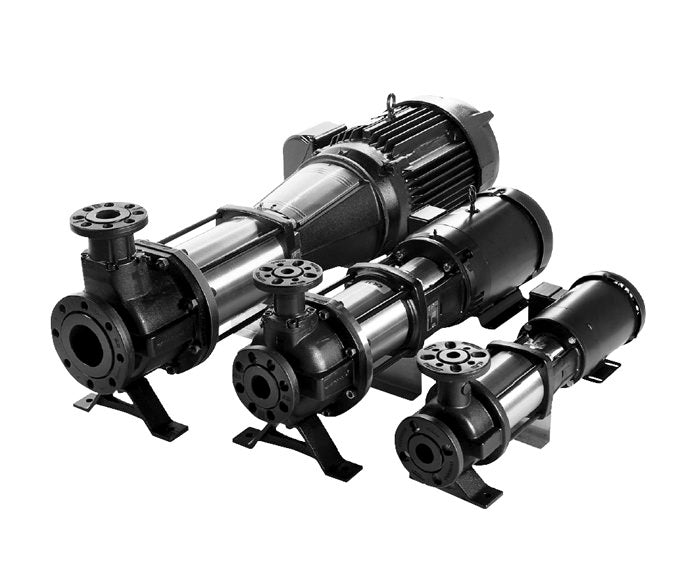

Grundfos Pumps CRN64-1-1 H-G70-G-E-HQQE 3x 230/460 60 HZ Horizontal Multistage Centrifugal Pump 97734717

This item ships free!
GrundfosSKU: 97734717

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
97734717 · Grundfos Accessory / Spare Part / Control
ACC10HP208-230YY/460YV3-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 97734717 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 337US gpm at 69.23ft. Rated 208-230YY/460YV, 3-Phase, 60 Hz.

Power
10HP
Voltage
208-230YY/460YV
Phase
3-Phase
Max Flow
337US gpm
Max Head
69.23ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 97734717
Series: ACC
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 97734717
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 10HP
Voltage 208-230YY/460YV
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3480-3500rpm
Pump Speed 3467rpm
Full Load Current 26,5-24,6/12,4A
Motor Type 132FA
Motor Protection PTC
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency IE3 90,2%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 337US gpm
Nominal Head 69.23ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 140°F
Inlet Connection 4inch
Outlet Connection 3inch
Pipe Pressure Rating PN 16
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 97734717
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5710623052069
Applications Chemical Delivery / Transfer, Filtration Systems, HVAC, Industrial Processes, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
Connections_Discharge_Inches 4\" x 3\"
Rated power - P2 10
Voltage 208/230/460
