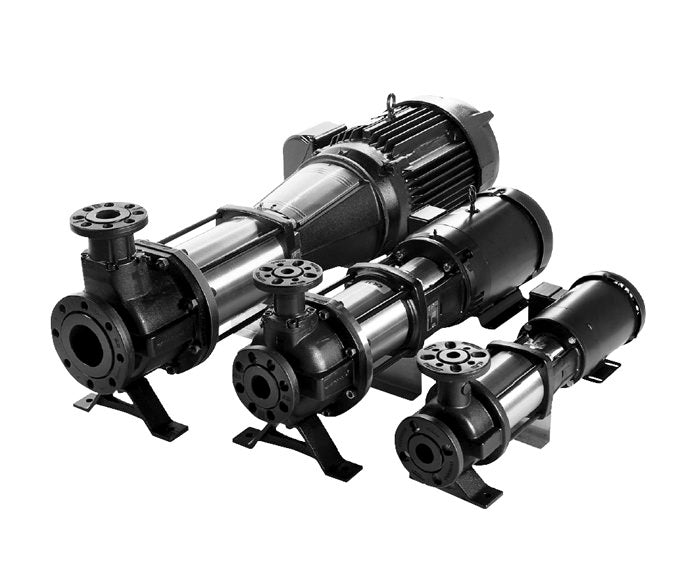

Grundfos Pumps CRN5-5 H-GA-G-E-HQQE 1x 115/230 60HZ Horizontal Multistage Centrifugal Pump 97734269

This item ships free!
GrundfosSKU: 97734269

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
97734269 · Grundfos Accessory / Spare Part / Control
ACC2HP115/230V1-Phase60 HzTEFCStainless steel

The Grundfos 97734269 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 30.8US gpm at 117.1ft. Rated 115/230V, 1-Phase, 60 Hz.

Power
2HP
Voltage
115/230V
Phase
1-Phase
Max Flow
30.8US gpm
Max Head
117.1ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 97734269
Series: ACC
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 97734269
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 2HP
Voltage 115/230V
Phase 1-Phase
Frequency 60 Hz
Pump Speed 3450rpm
Full Load Current 23/11,5A
Motor Type BALDOR
Motor Efficiency 74%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 30.8US gpm
Nominal Head 117.1ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 1 1/2inch
Outlet Connection 1inch
Pipe Pressure Rating PN 16
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/230V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 97734269
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5710623039251
Applications Chemical Delivery / Transfer, Filtration Systems, HVAC, Industrial Processes, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
Connections_Discharge_Inches 1-1/2\" X 1\"
Rated power - P2 2
Voltage 115/208/230
