Description

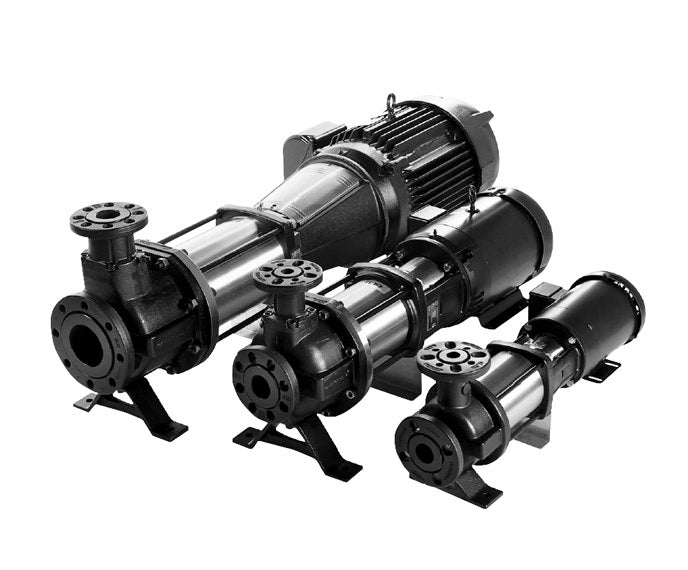

The Grundfos 97733379 is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 52.8US gpm at 424.6ft. Rated 230V, 1.0-Phase, 60 Hz.
Vertical Multistage Design
Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.
Stainless Steel Wetted Parts
All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.
QuickTight Connection System
No special tools needed for coupling. Integrated coupling design reduces installation and service time.
Wide Configuration Range
Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.
Authorized Grundfos Distributor
PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.
Contact PumpStop for Sizing
The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.
| Model Number | 97733379 |
| Product Series | CR |
| Series Description | Vertical Multistage Centrifugal Pump |
| Power | 10HP |
| Voltage | 230V |
| Phase | 1.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3525rpm |
| Pump Speed | 3500rpm |
| Full Load Current | 40A |
| Motor Type | BALDOR |
| Motor Efficiency | 85,5% |
| Insulation Class | F |
| Protection Class (IP) | TEFC |
| Nominal Flow | 52.8US gpm |
| Nominal Head | 424.6ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 2inch |
| Outlet Connection | 2inch |
| Pipe Pressure Rating | PN 25 |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQV |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 230V, 1.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5710622980868
- Applications
- Chemical Delivery / Transfer, Filtration Systems, HVAC, Industrial Processes, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
