Description

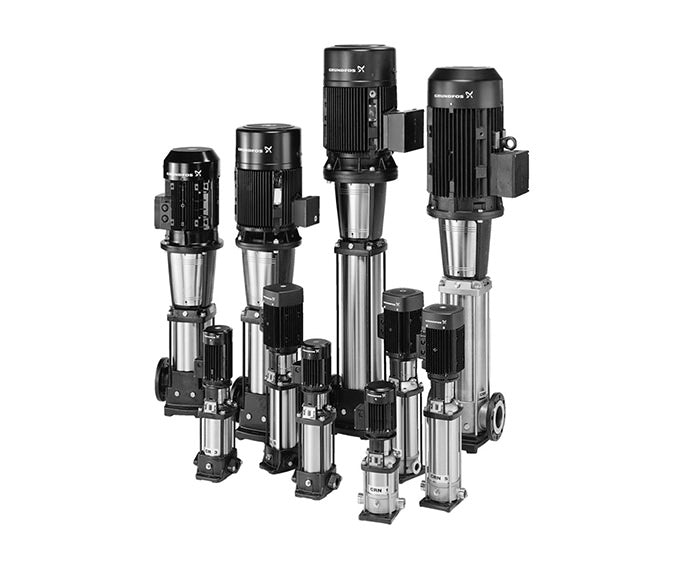

The Grundfos 97567067 is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Rated 440-480DV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Vertical Multistage Design
Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.
Stainless Steel Wetted Parts
All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.
QuickTight Connection System
No special tools needed for coupling. Integrated coupling design reduces installation and service time.
Wide Configuration Range
Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.
Authorized Grundfos Distributor
PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.
Contact PumpStop for Sizing
The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.
| Model Number | 97567067 |
| Product Series | CR |
| Series Description | Vertical Multistage Centrifugal Pump |
| Power | 60HP |
| Voltage | 440-480DV |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3570rpm |
| Pump Speed | 3565rpm |
| Full Load Current | 69A |
| Motor Type | INNOMOTICS |
| Motor Protection | PTC |
| Motor Efficiency Class | IE3 / NEMA Premium |
| Motor Efficiency | IE3 93,6% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 131°F |
| Nominal Pipe Bore | 114 |
| Pipe Standard | PJE |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 440-480DV, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Applications
- Boiler Feeds, Chemical Delivery / Transfer, Commercial, Condensate Return, Filtration Systems, Fracking, HVAC, Industrial Processes, Reverse Osmosis, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
