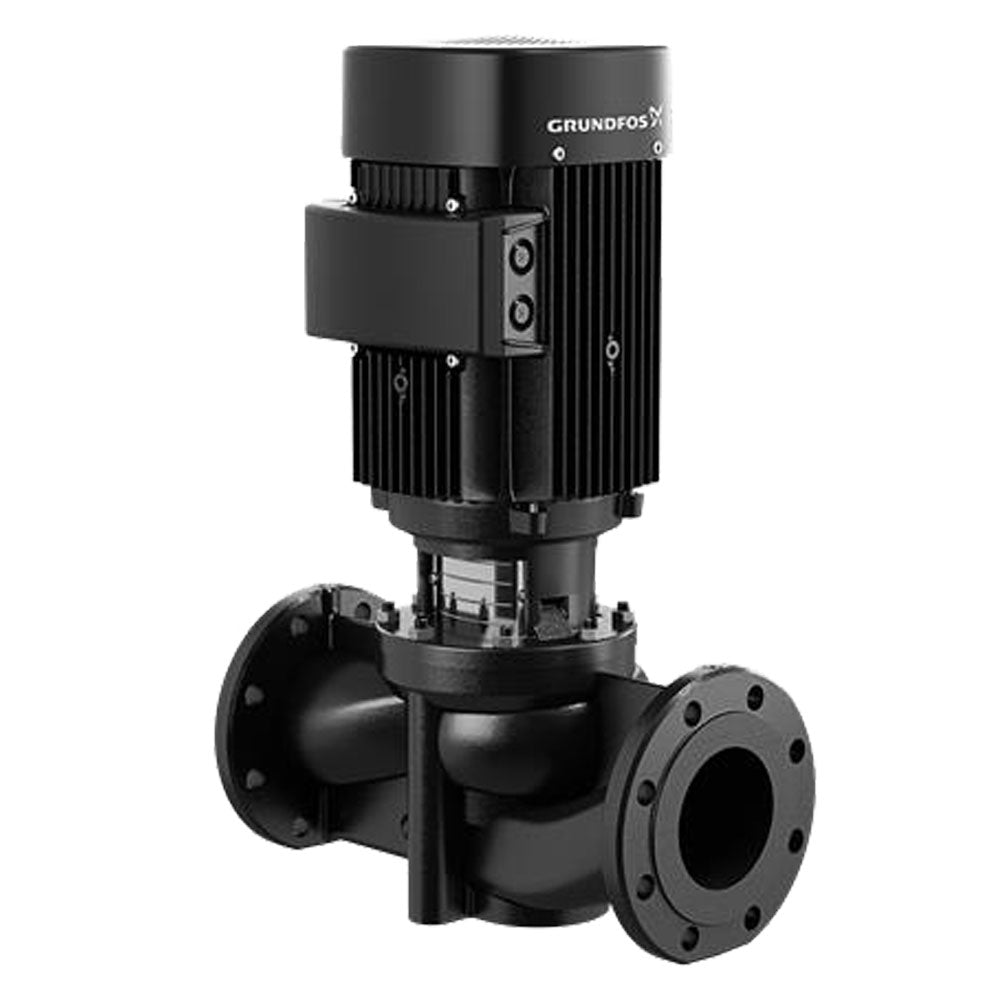

Grundfos 96913805 TP Series Direct Coupled

This item ships free!
GrundfosSKU: 96913805

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96913805 · Inline Single-Stage Centrifugal Pump
TP0.33HP115/230V1.0-Phase60 HzTEFCStainless steel

The Grundfos 96913805 is a Inline Single-Stage Centrifugal Pump. Single-stage close-coupled inline pump for HVAC heating and cooling. Suction and discharge on the same centerline. Nominal performance: 70.4US gpm at 10.17ft. Rated 115/230V, 1.0-Phase, 60 Hz. Applications include HVAC: Heating.

Power
0.33HP
Voltage
115/230V
Phase
1.0-Phase
Max Flow
70.4US gpm
Max Head
10.17ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96913805
Series: TP
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: RUUE
Technical Specifications
Model Number 96913805
Product Series TP
Series Description Inline Single-Stage Centrifugal Pump
Power 0.33HP
Voltage 115/230V
Phase 1.0-Phase
Frequency 60 Hz
Motor Speed 1725rpm
Full Load Current 6/3A
Motor Type BALDOR
Motor Efficiency 60%
Insulation Class B
Protection Class (IP) TEFC
Nominal Flow 70.4US gpm
Nominal Head 10.17ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 140°F
Max Ambient Temperature 104°F
Min Ambient Temperature -22°F
Nominal Pipe Bore 2"
Pipe Standard USA
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal RUUE
Applications
HVAC: Heating
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/230V, 1.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 140°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. TP pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — TP Series
✓ Product Data Sheet — 96913805
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700313559039
Applications Chillers / Hot Water Systems, Cooling Tower, Cooling Water Systems, District Heating, HVAC, Municipal Drinking Water, Recirculation, Refrigeration & Air Conditioning, Water Treatment
Connections_Discharge_Inches 2\"
Rated power - P2 1/3
Voltage 115/230
