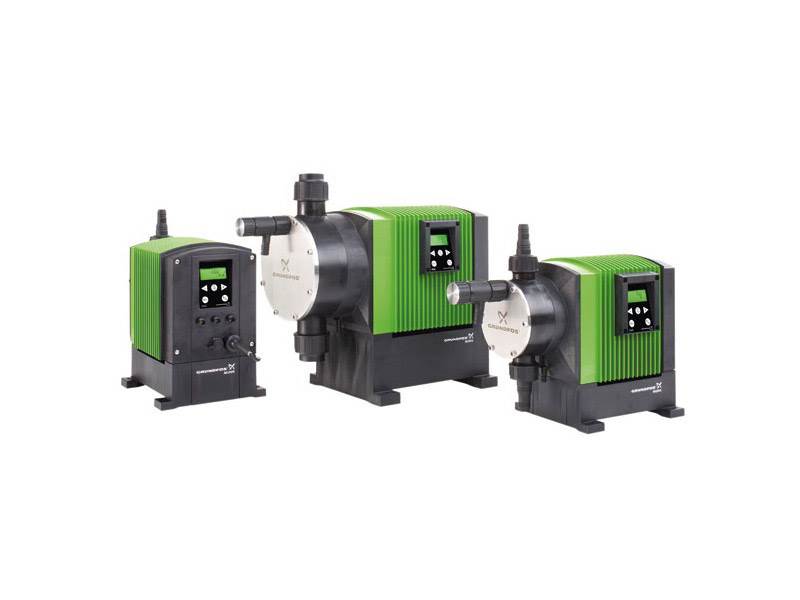

Image shown may not be actual product
Grundfos 96528928 DME 60-10 AR-PP/V/C-S-21A3A3B Digital Dosing Pump - Chemical Metering
Roll over image to zoom in Click on image to zoom
Grundfos 96528928 DME 60-10 AR-PP/V/C-S-21A3A3B Digital Dosing Pump - Chemical Metering
Grundfos Pumps & Systems

Grundfos 96528928 DME 60-10 AR-PP/V/C-S-21A3A3B Digital Dosing Pump - Chemical Metering

This item ships free!
GrundfosSKU: 96528928

or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96528928 · Digital Dosing Pump
DME120V1.0-Phase60 Hz

The Grundfos 96528928 is a Digital Dosing Pump. Diaphragm dosing pump with internal brushless motor for chemical dosing. Rated 120V, 1.0-Phase, 60 Hz. Applications include Process liquids transfer, Cooling, Industrial process water treatment.

Voltage
120V
Phase
1.0-Phase
Frequency
60 Hz
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96528928
Series: DME
Housing Material: Polypropylene
Technical Specifications
Model Number 96528928
Product Series DME
Series Description Digital Dosing Pump
Voltage 120V
Phase 1.0-Phase
Frequency 60 Hz
Full Load Current 1.25A
Max Operating Pressure 145.04psi
Inlet Connection THREADED NPT 3/4"
Outlet Connection THREADED NPT 3/4"
Housing Material Polypropylene
Approvals / Certifications CSA, CE
Applications
Process liquids transfer
Cooling
Industrial process water treatment
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 120V, 1.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. DME pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — DME Series
✓ Product Data Sheet — 96528928
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96528928 · 96528928Authorized Grundfos Distributor · pump-stop.com
Applications
Food & Beverage Services, Industrial Processes, Pulp & Paper, Textile Industry
