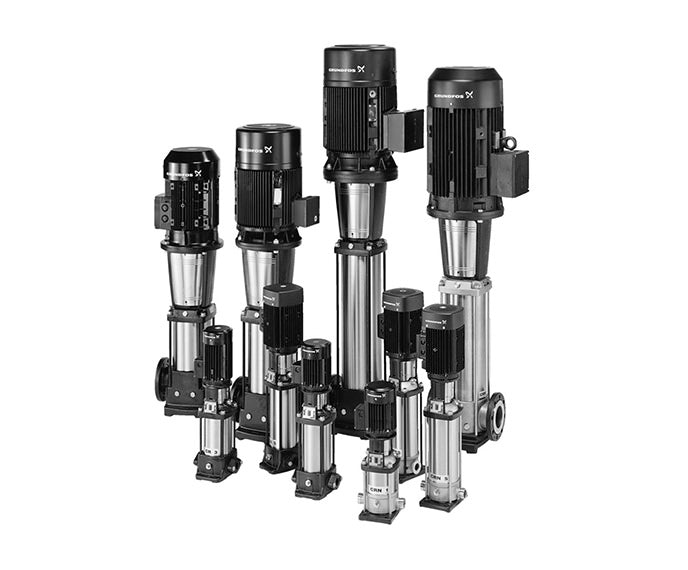

Grundfos Pumps CRN20-07 A-FGJ-G-E-HQQE 3x 230/460 60 Hz Vertical Multistage Centrifugal Pump Model 96523926

This item ships free!
GrundfosSKU: 96523926

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96523926 · Grundfos Accessory / Spare Part / Control
ACC20HP230/460V3.0-Phase60 HzIE3 / NEMA PremiumODPStainless steel

The Grundfos 96523926 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 111US gpm at 389.5ft. Rated 230/460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
20HP
Voltage
230/460V
Phase
3.0-Phase
Max Flow
111US gpm
Max Head
389.5ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96523926
Series: ACC
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 96523926
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 20HP
Voltage 230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3525rpm
Pump Speed 3497rpm
Full Load Current 47/23.5A
Motor Type BALDOR
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 91,7%
Insulation Class F
Protection Class (IP) ODP
Nominal Flow 111US gpm
Nominal Head 389.5ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CURUS
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96523926
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396914015
Applications Boiler Feeds, Chemical Delivery / Transfer, Commercial, Condensate Return, Filtration Systems, Fracking, HVAC, Industrial Processes, Reverse Osmosis, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
Connections_Discharge_Inches 2\" x 2\"
Rated power - P2 20
Voltage 208/230/460
