Name: Grundfos Pumps CRN15-04 A-P-G-E-HQQE 1x 208-230 60 Hz Vertical Multistage Centrifugal Pump Model 96523586
Brand: Grundfos
SKU: 96523586
Availability: InStock

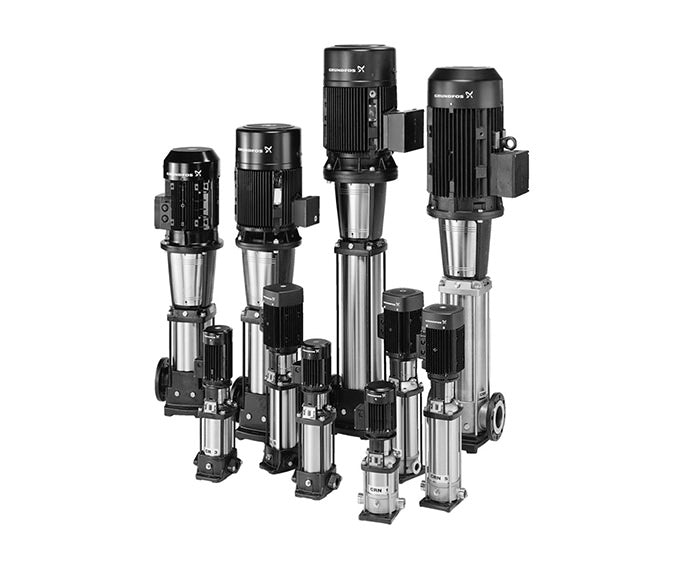

Image shown may not be actual product

Grundfos Pumps CRN15-04 A-P-G-E-HQQE 1x 208-230 60 Hz Vertical Multistage Centrifugal Pump Model 96523586

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

CRN15-04 A-P-G-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless

Vertical Multistage Centrifuga1-Phase60 HzVerticalStainless Steel

The Grundfos 96523586 (CRN15-04 A-P-G-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless, 1-Phase. All wetted components in EN 1.4401 (316) stainless steel. For corrosive, aggressive, and high-purity fluids where cast iron components are unsuitable. Grundfos Pumps CRN15-04 A-P-G-E-HQQE 1x 208-230 60 Hz Vertical Multistage Centrifugal Pump Model 96523586, 2" x 2", 7 1/2 HP, 1 Phase

Phase

1-Phase

Motor

ECM permanent magnet (IE5)

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Model Code Decoded

Model code decoded — series, size, stages, seal, connection, motor variant

Industrial Grade

Built and tested to IEC, NEMA, and NSF standards

Expert Support

Technical help available — call (781) 281-8905 or chat

Why This Product

All Stainless Steel Construction — No Iron in the Fluid Path

Every wetted component — impeller, shaft, chamber stacks, flanges, and casing — is in EN 1.4401 (316) stainless steel. Eliminates iron contamination for food-grade, pharmaceutical, chemical, and high-purity water applications.

Cartridge Mechanical Seal — No Adjustment Required

Pre-set cartridge seal is factory-set to correct compression — no measurement or adjustment required at installation. Reduces installation error and ensures consistent seal face load regardless of who installs it.

Chemical Compatibility — Broad Fluid Range

EN 1.4401 stainless steel and EPDM or Viton seal materials provide compatibility across a wide range of corrosive and aggressive fluids. HQQE configuration (EPDM O-rings) for acids and alkalis. HQQV (Viton O-rings) for petroleum-based and high-temperature fluids.

Combined DIN/ANSI/JIS Flanges — Global Installation Flexibility

Pump flanges are machined to accept DIN, ANSI, and JIS flange connections with the same pump body — one pump serves all three piping standards without adapters. Significant value for facilities with mixed international piping standards.

Variable Speed with CRN E-Motor (CRNE)

CRNE variant adds integrated VFD and IE5 permanent magnet motor. Variable speed pressure control without a separate drive — reduces panel space, eliminates wiring between drive and motor, and simplifies commissioning.

Grundfos ION Technology — Remote Monitoring Ready

CR, CRN, CRE, CRNE pumps with E-motor support Grundfos iSOLUTIONS connectivity for remote monitoring, fault detection, and performance data — reducing unplanned downtime in critical process and building services applications.

Model Code Decoded — CRN15-04 A-P-G-E-HQQE

Series: Vertical Multistage Centrifugal Pump — All Stainless

Model Code: CRN15-04 A-P-G-E-HQQE

Impeller Variant: Standard

Pipe Connection: P

Motor Variant: ECM permanent magnet (IE5)

Shaft Seal Code: HQQE

Shaft Seal: Cartridge seal — rubber bellows / SiC-SiC faces / EPDM O-rings

Technical Specifications

Model Number	96523586
Product Series	Vertical Multistage Centrifugal Pump — All Stainless
Model Code	CRN15-04 A-P-G-E-HQQE
Phase	1-Phase
Frequency	60 Hz
Motor Type	ECM permanent magnet (IE5)
Shaft Seal	Cartridge seal — rubber bellows / SiC-SiC faces / EPDM O-rings
Pipe Connection	P
Orientation	Vertical

Important Notices

Electrical	Requires correctly rated supply — 1-Phase, 60 Hz. Install with correctly rated circuit protection and motor starter.
Temperature limits	Do not exceed max fluid temperature (see spec sheet) or max ambient temperature (see spec sheet). Operating outside limits damages seals and motor insulation.
Dry running	Do not run dry. Grundfos CR/CRN/MTR pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, maintenance intervals, and spare part numbers. Manuals available from Grundfos or PumpStop.

Available Documentation

✓ Installation and Operating Manual (IOM) — Vertical Multistage Centrifugal Pump — All Stainless

✓ Product Data Sheet — CRN15-04 A-P-G-E-HQQE

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency are correct for your installation. For sizing, compatibility, or spare part guidance, chat or call (781) 281-8905.

EAN 5700396907680

Applications Boiler Feeds, Chemical Delivery / Transfer, Commercial, Condensate Return, Filtration Systems, Fracking, HVAC, Industrial Processes, Reverse Osmosis, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
