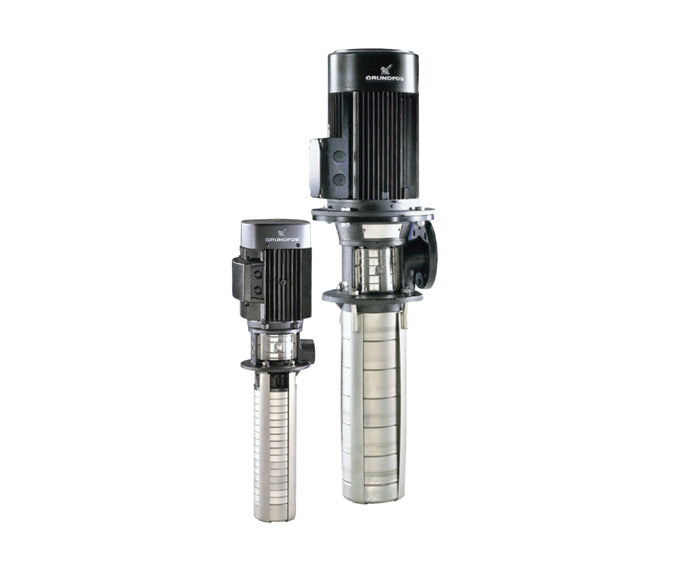

Grundfos Pumps MTR1S-25/25 A-WB-A-HUUV 3x 230/460 60Hz Multistage Coolant Condensate Pump 96515371

This item ships free!
GrundfosSKU: 96515371

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96515371 · Grundfos Accessory / Spare Part / Control
ACC2HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 96515371 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 4.84US gpm at 478.4ft. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz. Applications include Machining.

Power
2HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Max Flow
4.84US gpm
Max Head
478.4ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96515371
Series: ACC
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 96515371
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 2HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3500-3520rpm
Pump Speed 3452rpm
Full Load Current 6,00-5,80/2,90A
Motor Type 90GB
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency IE3 85,5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 4.84US gpm
Nominal Head 478.4ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Outlet Connection 1 1/4inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Shaft Seal HUUV
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96515371
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396721026
Applications Cooling Water Systems, Filtration Systems, Industrial Processes, Machining, Washing / Cleaning Systems
Rated power - P2 2
Voltage 208/230/460
