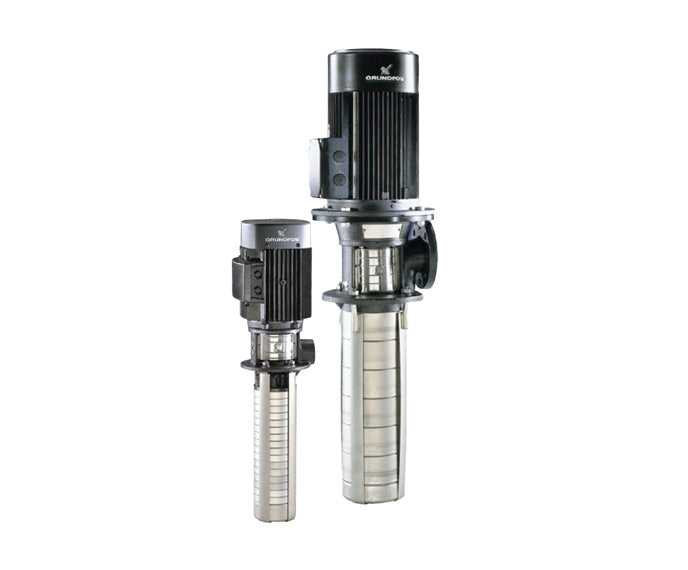

Grundfos Pumps MTR64-3/3 A-G-A-HUUV 3x 230/460 60Hz Multistage Coolant Condensate Pump 96429738

This item ships free!
GrundfosSKU: 96429738

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96429738 · Grundfos Accessory / Spare Part / Control
ACC40HP230/460V3.0-Phase60 HzTEFCStainless steel

The Grundfos 96429738 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 339US gpm at 324.5ft. Rated 230/460V, 3.0-Phase, 60 Hz. Applications include Machining.

Power
40HP
Voltage
230/460V
Phase
3.0-Phase
Max Flow
339US gpm
Max Head
324.5ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96429738
Series: ACC
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 96429738
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 40HP
Voltage 230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3520rpm
Pump Speed 3525rpm
Full Load Current 90/45A
Motor Type BALDOR
Motor Efficiency 91,7%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 339US gpm
Nominal Head 324.5ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 104°F
Outlet Connection 3inch
Pipe Standard ANSI
Impeller Material Stainless steel
Shaft Seal HUUV
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96429738
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700392942692
Applications Cooling Water Systems, Filtration Systems, Industrial Processes, Machining, Washing / Cleaning Systems
Rated power - P2 40
Voltage 230/460
