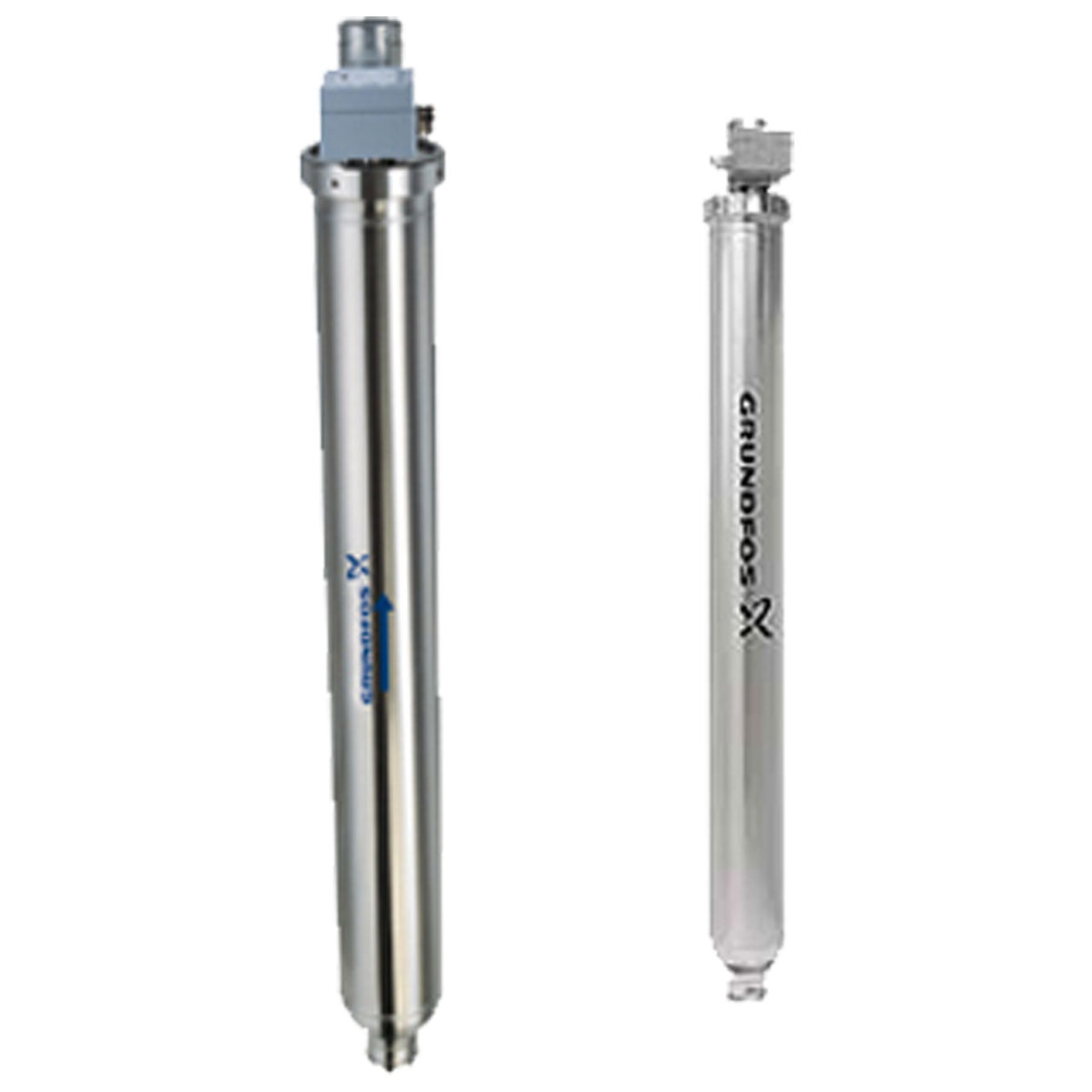

Grundfos Pumps 96293289 BM hp Series Booster Module

This item ships free!
GrundfosSKU: 96293289

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
BM hp 77-3-R NBR · Encapsulated pumps
BM hp 77-3-R15HP380-415V3-Phase50 HzIP66Stainless steel

The Grundfos 96293289 (BM hp 77-3-R NBR) is a Encapsulated pumps 15HP 380-415V 3-Phase — Booster modules. Nominal performance: 339US gpm at 118.1ft.

Power
15HP
Voltage
380-415V
Phase
3-Phase
Max Flow
339US gpm
Max Head
118.1ft
Max Pressure
1199.46psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
gf-sh"
Why This Product

Genuine Grundfos Parts and Accessories

Genuine Grundfos replacement parts and accessories are manufactured to the same specifications as the original components — ensuring correct fit, correct function, and maintenance of original pump performance.

OEM Quality — Maintains Warranty Coverage

Using genuine Grundfos replacement parts maintains pump warranty coverage where applicable. Third-party parts may void warranty coverage and can cause performance changes and premature failure.

Compatibility Confirmed

Grundfos accessories and replacement parts are tested for compatibility with specific Grundfos pump models. Part numbers are model-specific — always verify using your pump's model number and serial number.

PumpStop Expert Support

Not sure if this is the right part for your pump? Contact PumpStop with your pump model number and serial number — our team will confirm compatibility before you order.

Model Code Decoded — BM hp 77-3-R NBR
Series: BM hp 77-3-R
Model Code: BM hp 77-3-R NBR
Impeller Material: Stainless steel
Performance
Nominal Flow 339US gpm
Nominal Head 118.1ft
Max Operating Pressure 1199.46psi
Max Fluid Temperature 104°F
Electrical Specifications
Power 15HP
Voltage 380-415V
Phase 3-Phase
Frequency 50 Hz
Motor Speed 2840-2860-2880rpm
Full Load Current 26.0-24.8A
Motor Start Method direct-on-line
Min Efficiency Index (MEI) -.--
Protection Class (IP) IP66
Connections
Nominal Pipe Bore 139 mm
Pipe Standard PJE
Materials
Impeller Material Stainless steel
Product Identity
Model Number 96293289
Product Series BM hp 77-3-R
Model Code BM hp 77-3-R NBR
Important Notices
Electrical Requires correctly rated supply — 380-415V, 3-Phase, 50 Hz. Install with correctly rated circuit protection and motor starter. direct-on-line starting method.
Temperature limits Do not exceed max fluid temperature 104°F. Operating outside these limits will damage seals and motor insulation.
Dry running Do not run dry. BM hp 77-3-R pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance intervals. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — BM hp 77-3-R
✓ Product Data Sheet — BM hp 77-3-R NBR
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation requirements. For sizing help or spare parts guidance, chat or call (781) 281-8905.
EAN 5700831408444
Applications Industrial, Reverse Osmosis, Water Supply, Water Treatment
Connections_Discharge_Inches 5\" Victaulic Style 489
Maximum flow 1233 GPM
Rated power - P2 15
Voltage 380-415
