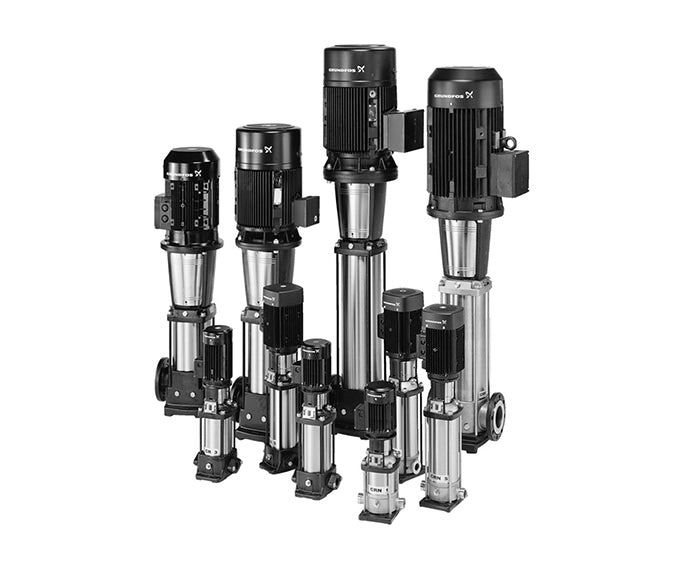

Image shown may not be actual product
![Grundfos Pumps CRN1S-15 A-P-G-E-HQQE 3x 230/460 60Hz Vertical Multistage Centrifugal Pump Model 96081615]()
![Grundfos Pumps CRN1S-15 A-P-G-E-HQQE 3x 230/460 60Hz Vertical Multistage Centrifugal Pump Model 96081615]()
Description
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN1S-15 A-P-G-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
The Grundfos 96081615 (CRN1S-15 A-P-G-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless, 3-Phase. All wetted components in EN 1.4401 (316) stainless steel. For corrosive, aggressive, and high-purity fluids where cast iron components are unsuitable. Grundfos Pumps CRN1S-15 A-P-G-E-HQQE 3x 230/460 60Hz Vertical Multistage Centrifugal Pump Model 96081615, 1 1/4" x 1 1/4", 1 HP, 3 Phase
Phase
3-Phase
Motor
ECM permanent magnet (IE5)
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Model Code Decoded
Model code decoded — series, size, stages, seal, connection, motor variant
Industrial Grade
Built and tested to IEC, NEMA, and NSF standards
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
All Stainless Steel Construction — No Iron in the Fluid Path
Every wetted component — impeller, shaft, chamber stacks, flanges, and casing — is in EN 1.4401 (316) stainless steel. Eliminates iron contamination for food-grade, pharmaceutical, chemical, and high-purity water applications.
Cartridge Mechanical Seal — No Adjustment Required
Pre-set cartridge seal is factory-set to correct compression — no measurement or adjustment required at installation. Reduces installation error and ensures consistent seal face load regardless of who installs it.
Chemical Compatibility — Broad Fluid Range
EN 1.4401 stainless steel and EPDM or Viton seal materials provide compatibility across a wide range of corrosive and aggressive fluids. HQQE configuration (EPDM O-rings) for acids and alkalis. HQQV (Viton O-rings) for petroleum-based and high-temperature fluids.
Combined DIN/ANSI/JIS Flanges — Global Installation Flexibility
Pump flanges are machined to accept DIN, ANSI, and JIS flange connections with the same pump body — one pump serves all three piping standards without adapters. Significant value for facilities with mixed international piping standards.
Variable Speed with CRN E-Motor (CRNE)
CRNE variant adds integrated VFD and IE5 permanent magnet motor. Variable speed pressure control without a separate drive — reduces panel space, eliminates wiring between drive and motor, and simplifies commissioning.
Grundfos ION Technology — Remote Monitoring Ready
CR, CRN, CRE, CRNE pumps with E-motor support Grundfos iSOLUTIONS connectivity for remote monitoring, fault detection, and performance data — reducing unplanned downtime in critical process and building services applications.
Model Code Decoded — CRN1S-15 A-P-G-E-HQQE
Series: Vertical Multistage Centrifugal Pump — All Stainless
Model Code: CRN1S-15 A-P-G-E-HQQE
Impeller Variant: Standard
Pipe Connection: P
Motor Variant: ECM permanent magnet (IE5)
Shaft Seal Code: HQQE
Shaft Seal: Cartridge seal — rubber bellows / SiC-SiC faces / EPDM O-rings
Technical Specifications
| Model Number | 96081615 |
| Product Series | Vertical Multistage Centrifugal Pump — All Stainless |
| Model Code | CRN1S-15 A-P-G-E-HQQE |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Type | ECM permanent magnet (IE5) |
| Shaft Seal | Cartridge seal — rubber bellows / SiC-SiC faces / EPDM O-rings |
| Pipe Connection | P |
| Orientation | Vertical |
Important Notices
| Electrical | Requires correctly rated supply — 3-Phase, 60 Hz. Install with correctly rated circuit protection and motor starter. |
| Temperature limits | Do not exceed max fluid temperature (see spec sheet) or max ambient temperature (see spec sheet). Operating outside limits damages seals and motor insulation. |
| Dry running | Do not run dry. Grundfos CR/CRN/MTR pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, maintenance intervals, and spare part numbers. Manuals available from Grundfos or PumpStop. |
Available Documentation
✓ Installation and Operating Manual (IOM) — Vertical Multistage Centrifugal Pump — All Stainless
✓ Product Data Sheet — CRN1S-15 A-P-G-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency are correct for your installation. For sizing, compatibility, or spare part guidance, chat or call (781) 281-8905.
EAN
5700395160598
Applications
Boiler Feeds, Chemical Delivery / Transfer, Commercial, Condensate Return, Filtration Systems, Fracking, HVAC, Industrial Processes, Reverse Osmosis, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
Connections_Discharge_Inches
1-1/4\" x 1-1/4\"
Rated power - P2
1
Voltage
208/230/460
Motor Curves
