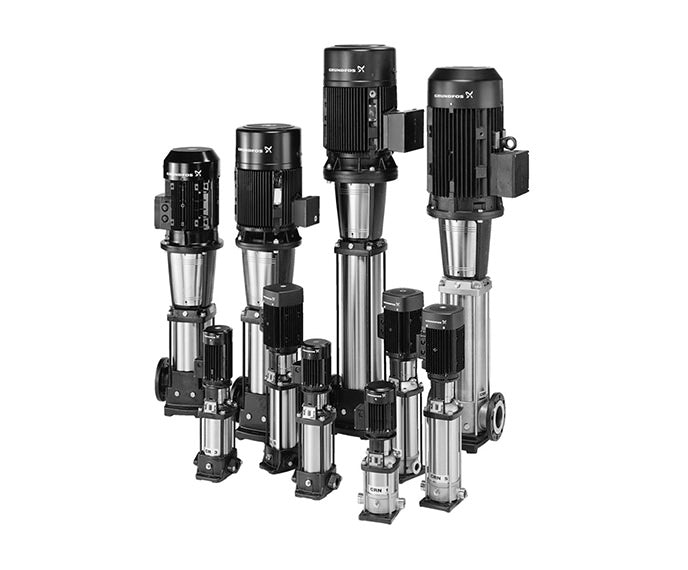

Grundfos Pumps CRI1S-2 A-CA-I-V-HQQV 3x 230/460 60Hz Vertical Multistage Centrifugal Pump Model 96081306

This item ships free!
GrundfosSKU: 96081306

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96081306 · Grundfos Accessory / Spare Part / Control
ACC0.33HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 96081306 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 4.84US gpm at 37.73ft. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
0.33HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Max Flow
4.84US gpm
Max Head
37.73ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96081306
Series: ACC
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: PN 25
Technical Specifications
Model Number 96081306
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 0.33HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3450-3480rpm
Pump Speed 3425rpm
Full Load Current 1,12-1,10/0,55A
Motor Type 71AA
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency IE3 79,3%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 4.84US gpm
Nominal Head 37.73ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Inlet Connection DN 32
Outlet Connection DN 32
Pipe Pressure Rating PN 25
Pipe Standard FLEXICLAMP
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Approvals / Certifications CURUS
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96081306
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700395164572
Applications Boiler Feeds, Chemical Delivery / Transfer, Commercial, Condensate Return, Filtration Systems, Fracking, HVAC, Industrial Processes, Reverse Osmosis, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
Connections_Discharge_Inches 1\" x 1\"
Rated power - P2 1/3
Voltage 208/230/460
