Description

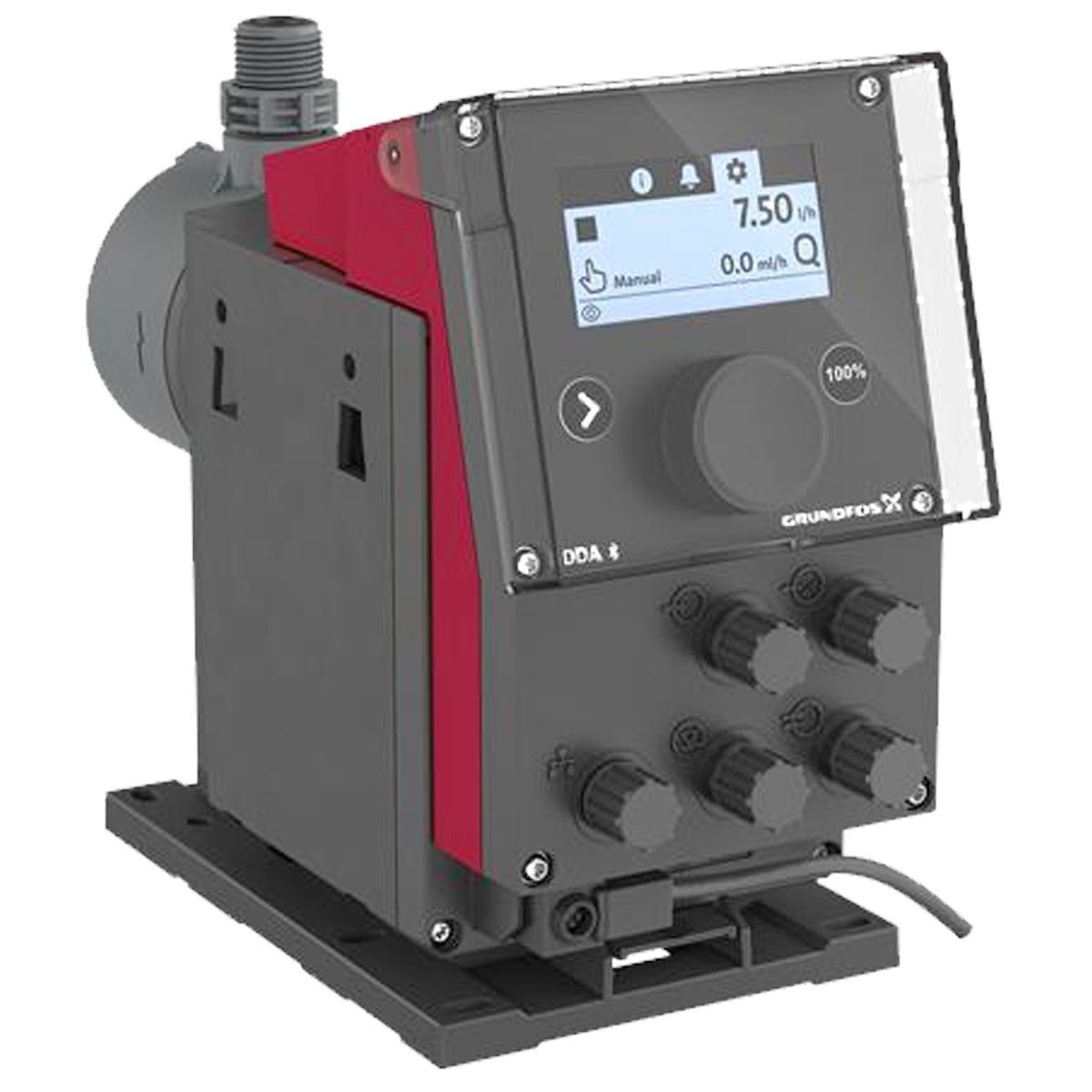

The Grundfos 93065033 (DDA 17-7 FCM-C-PVC/E/C-F-31U7U7BG) is a Digital dosing pumps 100-240V 1-Phase — SMART Digital diaphragm dosing pump with internal brushless motor drive. High-end solution for complex and demanding applications (Digital Dosing Advanced).. Designed for Process liquids transfer, Cooling, Industrial process water treatment.
Why This Product
Genuine Grundfos Parts and Accessories
Genuine Grundfos replacement parts and accessories are manufactured to the same specifications as the original components — ensuring correct fit, correct function, and maintenance of original pump performance.
OEM Quality — Maintains Warranty Coverage
Using genuine Grundfos replacement parts maintains pump warranty coverage where applicable. Third-party parts may void warranty coverage and can cause performance changes and premature failure.
Compatibility Confirmed
Grundfos accessories and replacement parts are tested for compatibility with specific Grundfos pump models. Part numbers are model-specific — always verify using your pump's model number and serial number.
PumpStop Expert Support
Not sure if this is the right part for your pump? Contact PumpStop with your pump model number and serial number — our team will confirm compatibility before you order.
| Max Operating Pressure | 101.53psi |
| Max Fluid Temperature | 113°F |
| Max Ambient Temperature | 113°F |
| Min Ambient Temperature | 32°F |
| Voltage | 100-240V |
| Phase | 1-Phase |
| Frequency | 50, 60 Hz |
| Protection Class (IP) | IP65 / TYPE 4X |
| Cable / Plug Type | USA, Canada |
| Inlet Connection | 0.17x 1/4, 1/4x3/8, 3/8x1/2" |
| Outlet Connection | 0.17x 1/4, 1/4x3/8, 3/8x1/2" |
| Gasket Material | EPDM |
| Dosing Head Material | PVC (Polyvinyl chloride) |
| Model Number | 93065033 |
| Product Series | DDA 17-7 |
| Model Code | DDA 17-7 FCM-C-PVC/E/C-F-31U7U7BG |
| Approvals / Certifications | CE, CSA-US, NSF61, RCM |
| Electrical | Requires correctly rated supply — 100-240V, 1-Phase, 50, 60 Hz. Install with correctly rated circuit protection and motor starter. |
| Temperature limits | Do not exceed max fluid temperature 113°F or max ambient temperature 113°F. Operating outside these limits will damage seals and motor insulation. |
| Dry running | Do not run dry. DDA 17-7 pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance intervals. Contact PumpStop for documentation. |
