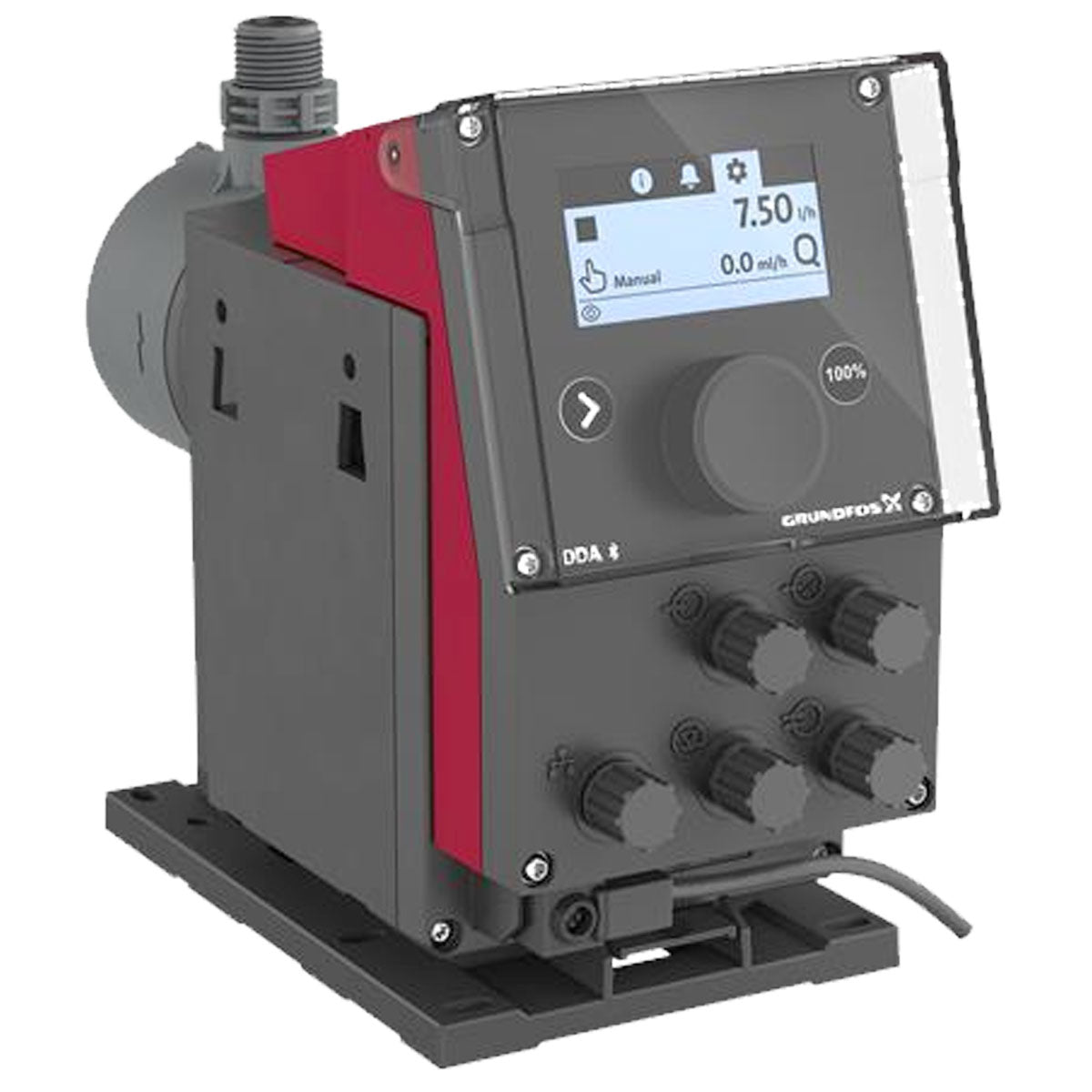

Grundfos 93065025 Smart Digital S DDA-C Series Stepper Motor-Driven Diaphragm Dosing Pump

This item ships free!
GrundfosSKU: 93065025

Price:
Sale price$3,806.27
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
DDA 17-7 FCM-C-PP/E/C-F-31I004BG · Digital dosing pumps
DDA 17-7100-240V1-Phase50, 60 HzIP65 / TYPE 4X

The Grundfos 93065025 (DDA 17-7 FCM-C-PP/E/C-F-31I004BG) is a Digital dosing pumps 100-240V 1-Phase — SMART Digital diaphragm dosing pump with internal brushless motor drive. High-end solution for complex and demanding applications (Digital Dosing Advanced).. Designed for Process liquids transfer, Cooling, Industrial process water treatment.

Voltage
100-240V
Phase
1-Phase
Frequency
50, 60 Hz
Max Pressure
101.53psi
Max Fluid Temp
113°F
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
gf-sh"
Why This Product

Genuine Grundfos Parts and Accessories

Genuine Grundfos replacement parts and accessories are manufactured to the same specifications as the original components — ensuring correct fit, correct function, and maintenance of original pump performance.

OEM Quality — Maintains Warranty Coverage

Using genuine Grundfos replacement parts maintains pump warranty coverage where applicable. Third-party parts may void warranty coverage and can cause performance changes and premature failure.

Compatibility Confirmed

Grundfos accessories and replacement parts are tested for compatibility with specific Grundfos pump models. Part numbers are model-specific — always verify using your pump's model number and serial number.

PumpStop Expert Support

Not sure if this is the right part for your pump? Contact PumpStop with your pump model number and serial number — our team will confirm compatibility before you order.

Model Code Decoded — DDA 17-7 FCM-C-PP/E/C-F-31I004BG
Series: DDA 17-7
Model Code: DDA 17-7 FCM-C-PP/E/C-F-31I004BG
Performance
Max Operating Pressure 101.53psi
Max Fluid Temperature 113°F
Max Ambient Temperature 113°F
Min Ambient Temperature 32°F
Electrical Specifications
Voltage 100-240V
Phase 1-Phase
Frequency 50, 60 Hz
Protection Class (IP) IP65 / TYPE 4X
Cable / Plug Type USA, Canada
Connections
Inlet Connection Hose 3/8x1/2" S
Outlet Connection Hose 3/8x1/2" S
Materials
Gasket Material EPDM
Dosing Head Material PP (Polypropylene)
Product Identity
Model Number 93065025
Product Series DDA 17-7
Model Code DDA 17-7 FCM-C-PP/E/C-F-31I004BG
Approvals / Certifications CE, CSA-US, RCM
Applications
Process liquids transfer
Cooling
Industrial process water treatment
Important Notices
Electrical Requires correctly rated supply — 100-240V, 1-Phase, 50, 60 Hz. Install with correctly rated circuit protection and motor starter.
Temperature limits Do not exceed max fluid temperature 113°F or max ambient temperature 113°F. Operating outside these limits will damage seals and motor insulation.
Dry running Do not run dry. DDA 17-7 pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance intervals. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — DDA 17-7
✓ Product Data Sheet — DDA 17-7 FCM-C-PP/E/C-F-31I004BG
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation requirements. For sizing help or spare parts guidance, chat or call (781) 281-8905.
EAN 5715467278064
Applications Boiler Feeds, Chemical Metering, Cooling Tower, Food & Beverage Services, Municipal Drinking Water, Pulp & Paper, Reverse Osmosis, Textile Industry, Washing / Cleaning Systems, Wastewater Treatment, Water Treatment
Connections_Discharge_Inches Hose, 3/8\" ID x 1/2\" OD (up to 60 l/h, 10 bar)
Maximum operating pressure 100 PSI (7 bar)
Voltage 100-240
