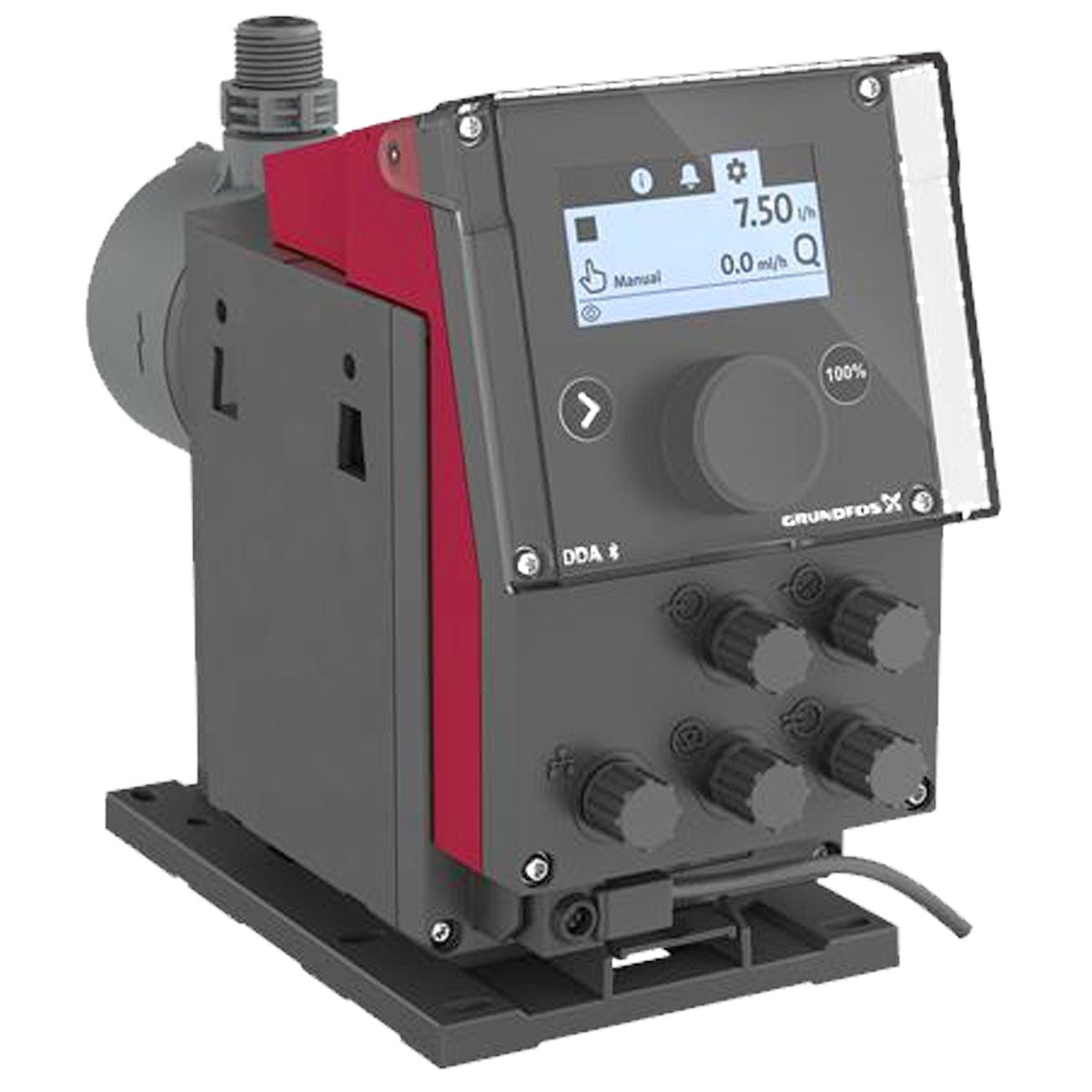

Grundfos 93064959 Smart Digital S DDA-C Series Stepper Motor-Driven Diaphragm Dosing Pump

This item ships free!
GrundfosSKU: 93064959

Price:
Sale price$5,747.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
DDA 7.5-16 FCM-C-PVC/V/C-F-32U7U7BG · Digital dosing pumps
DDA 7.5-16100-240V1-Phase50, 60 HzIP65 / TYPE 4X

The Grundfos 93064959 (DDA 7.5-16 FCM-C-PVC/V/C-F-32U7U7BG) is a Digital dosing pumps 100-240V 1-Phase — SMART Digital diaphragm dosing pump with internal brushless motor drive. High-end solution for complex and demanding applications (Digital Dosing Advanced).. Designed for Process liquids transfer, Cooling, Industrial process water treatment.

Voltage
100-240V
Phase
1-Phase
Frequency
50, 60 Hz
Max Pressure
145.04psi
Max Fluid Temp
113°F
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
gf-sh"
Why This Product

Genuine Grundfos Parts and Accessories

Genuine Grundfos replacement parts and accessories are manufactured to the same specifications as the original components — ensuring correct fit, correct function, and maintenance of original pump performance.

OEM Quality — Maintains Warranty Coverage

Using genuine Grundfos replacement parts maintains pump warranty coverage where applicable. Third-party parts may void warranty coverage and can cause performance changes and premature failure.

Compatibility Confirmed

Grundfos accessories and replacement parts are tested for compatibility with specific Grundfos pump models. Part numbers are model-specific — always verify using your pump's model number and serial number.

PumpStop Expert Support

Not sure if this is the right part for your pump? Contact PumpStop with your pump model number and serial number — our team will confirm compatibility before you order.

Model Code Decoded — DDA 7.5-16 FCM-C-PVC/V/C-F-32U7U7BG
Series: DDA 7.5-16
Model Code: DDA 7.5-16 FCM-C-PVC/V/C-F-32U7U7BG
Performance
Max Operating Pressure 145.04psi
Max Fluid Temperature 113°F
Max Ambient Temperature 113°F
Min Ambient Temperature 32°F
Electrical Specifications
Voltage 100-240V
Phase 1-Phase
Frequency 50, 60 Hz
Protection Class (IP) IP65 / TYPE 4X
Cable / Plug Type USA, Canada
Connections
Inlet Connection 0.17x 1/4, 1/4x3/8, 3/8x1/2"
Outlet Connection 0.17x 1/4, 1/4x3/8, 3/8x1/2"
Materials
Gasket Material FKM
Dosing Head Material PVC (Polyvinyl chloride)
Product Identity
Model Number 93064959
Product Series DDA 7.5-16
Model Code DDA 7.5-16 FCM-C-PVC/V/C-F-32U7U7BG
Approvals / Certifications CE, CSA-US, NSF61, RCM
Applications
Process liquids transfer
Cooling
Industrial process water treatment
Important Notices
Electrical Requires correctly rated supply — 100-240V, 1-Phase, 50, 60 Hz. Install with correctly rated circuit protection and motor starter.
Temperature limits Do not exceed max fluid temperature 113°F or max ambient temperature 113°F. Operating outside these limits will damage seals and motor insulation.
Dry running Do not run dry. DDA 7.5-16 pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance intervals. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — DDA 7.5-16
✓ Product Data Sheet — DDA 7.5-16 FCM-C-PVC/V/C-F-32U7U7BG
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation requirements. For sizing help or spare parts guidance, chat or call (781) 281-8905.
EAN 5715467276640
Applications Boiler Feeds, Chemical Metering, Cooling Tower, Food & Beverage Services, Municipal Drinking Water, Pulp & Paper, Reverse Osmosis, Textile Industry, Washing / Cleaning Systems, Wastewater Treatment, Water Treatment
Connections_Discharge_Inches Hoses: 0.17\" ID x 1/4\" OD; 1/4\" ID x 3/8\" OD; 3/8\" ID x 1/2\" OD
Maximum operating pressure 232 PSI (16 bar)
Voltage 100-240
