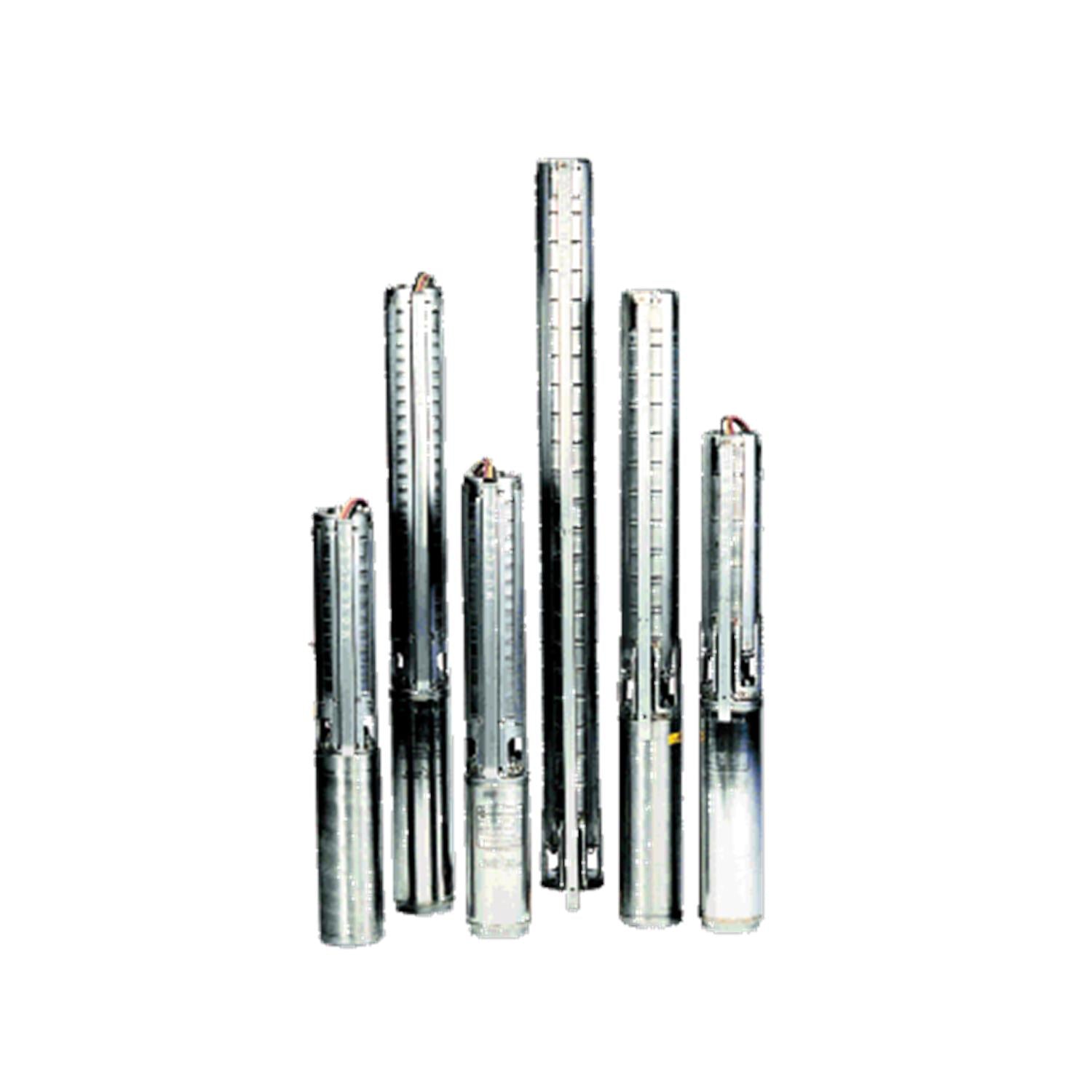

Image shown may not be actual product
Grundfos 12B64504 - 85S50-4
Grundfos 12B64504 - 85S50-4
Grundfos 12B64504 - 85S50-4
Grundfos 12B64504 - 85S50-4
Grundfos 12B64504 - 85S50-4
Grundfos 12B64504 - 85S50-4

Grundfos 12B64504 - 85S50-4

GRUNDFOSSKU: 12B64504
Price:
$6,305.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

85S50-4 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 1-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Approvals CULDWUS,CCSAUS
Approvals for drinking water PROP65
Approvals for motor CE,EAC,CSACE,EAC,CSA
Built-in motor protection NONE
Connection 3 inch
Curve tolerance ISO9906:2012 3B
Diameter 5.51 in
DOE Pump Energy Index CL 0.85
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
Gross weight 88.9 lb
Impeller Stainless steel
Impellers NONE
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code F
Liquid max temp 104°F
Liquid temperature range 5 .. 104 °F
Maximum operating pressure 870.23 psi
Maximum outlet pressure 95.72 psi
Minimum borehole diameter 5.51 in
Minimum efficiency index, MEI ≥ -.--
Model B
Motor Stainless steel
Motor diameter 4 inch
Motor flange design Grundfos
Motor type MS4000
Motor version T40
n rpm F
Net weight 78.9 lb
Number of reduced-diameter impellers NONE
P2 kW 5 HP
Phase 1
Power (P2) required by pump 5 HP
Power factor 1 0.92
Pump 5 HP
Pump speed on which pump data are based 3450 rpm
Rated current 27.5 A
Rated flow 88.1 US gpm
Rated head 150.9 ft
Rated power - P2 5 HP
Rated speed 3450 rpm
Rated voltage 1 x 230 V
Return valve YES
Service factor 1.15
Shaft Product name:85S50-4
Shaft seal HM/CER
Size of connection 3 inch
Stages 4
Start. 1 method DOL
Starting current 4
Type MS4000
Type of connection NPT(F)
Valve YES
Version T40
Windings Enamelled

Motor Curves

Dimensional Drawing

DWiring Diagram
