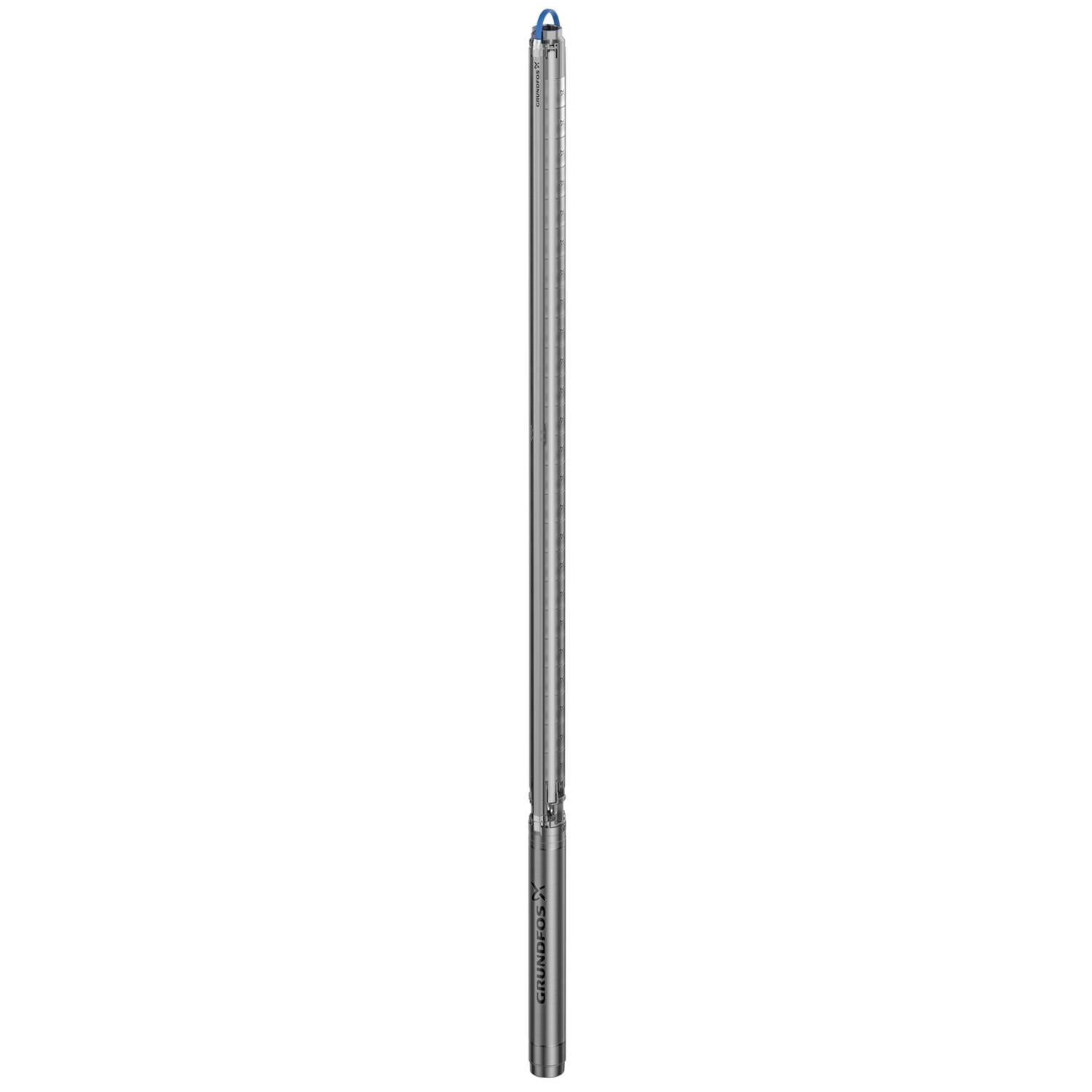

![Grundfos 98924483 - 77S75-12]()
![Grundfos 98924483 - 77S75-12]()
![Grundfos 98924483 - 77S75-12]()
![Grundfos 98924483 - 77S75-12]()
![Grundfos 98924483 - 77S75-12]()
![Grundfos 98924483 - 77S75-12]()
Description
Grundfos 98924483 - 77S75-12 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Maximum operating pressure
870.23 psi
Power factor 1
0.89-0.82
Type of connection
NPT(F)
Rated voltage
3 x 208-230 V
KVA code
J
Starting current
510-620 %
Liquid temperature range
5 .. 104 °F
Insulation class (IEC 85)
F
Built-in motor protection
NONE
Net weight
88.2 lb
Rated speed
3415-3460 rpm
Gross weight
101.0 lb
Rated power - P2
7.5 HP
Size of connection
2 inch
Maximum outlet pressure
155.19 psi
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
7.5 HP
Shaft
Product name:77S75-12
Rated current
27.0-25.0 A
Service factor
1.15
Windings
Enamelled
Motor type
MS4000
Motor diameter
4 inch
Minimum borehole diameter
4.13 in
Motor flange design
NEMA
DOE Pump Energy Index CL
0.91
Pump speed on which pump data are based
3450 rpm
Stages
12
Approvals
CULDWUS,CCSAUS
Rated flow
73.5 US gpm
Approvals for motor
CE,EAC,CSACE,EAC,CSA
Model
A
Version
T40
Diameter
4.13 in
Motor
Stainless steel
Approvals for drinking water
PROP65
Return valve
YES
Rated head
239.8 ft
Type
MS4000
Curve tolerance
ISO9906:2012 3B
Motor version
T40
Impellers
NONE
Valve
YES
Connection
2 inch
Impeller
Stainless steel
Number of reduced-diameter impellers
NONE
Pump
7.5 HP
Motor Curves
