Image shown may not be actual product

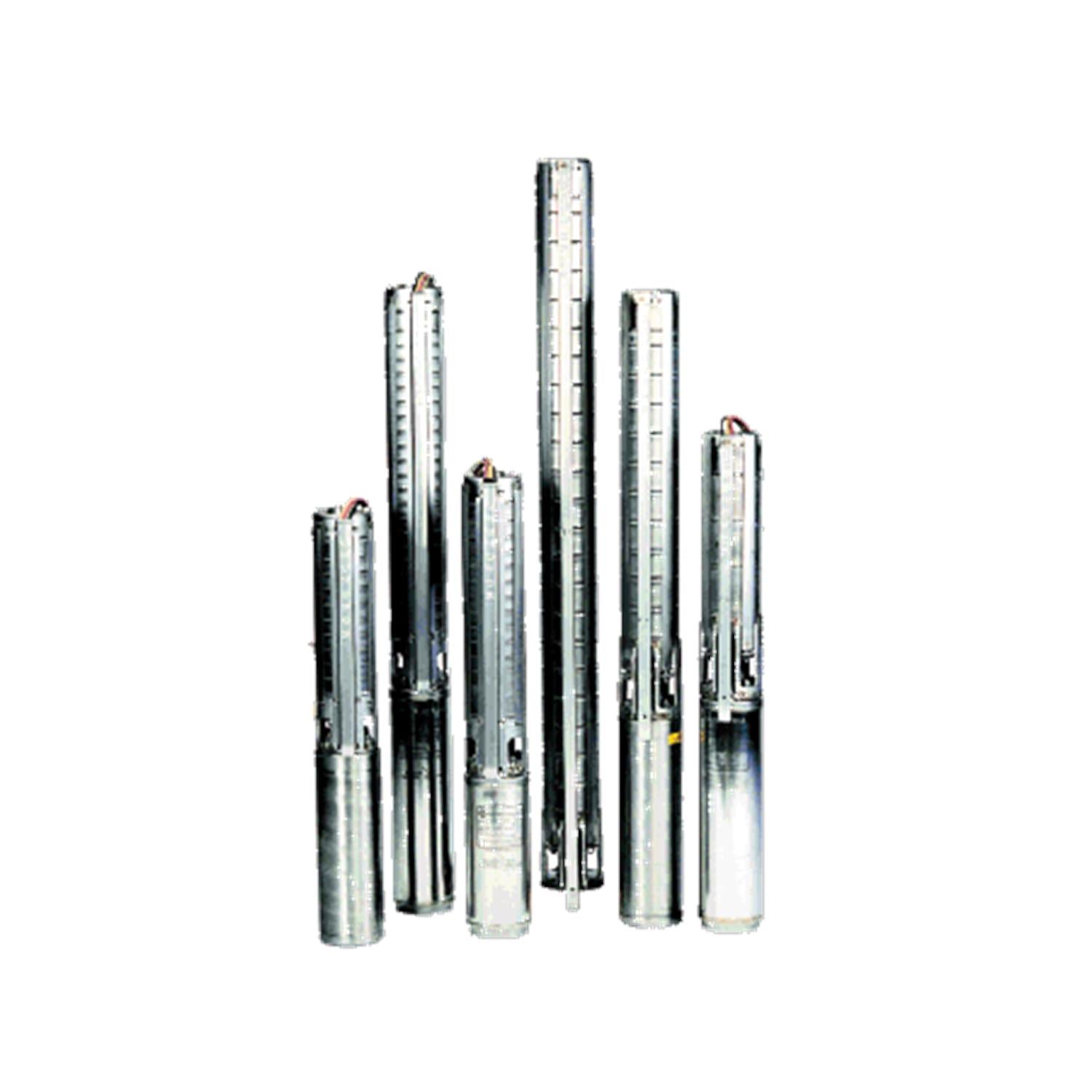

![Grundfos 98924102 - 77S100-20]()
![Grundfos 98924102 - 77S100-20]()
![Grundfos 98924102 - 77S100-20]()
![Grundfos 98924102 - 77S100-20]()
Description
Grundfos 98924102 - 77S100-20 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Maximum operating pressure
870.23 psi
Type of connection
NPT(F)
Liquid temperature range
5 .. 140 °F
Net weight
46.1 lb
Gross weight
58.0 lb
Size of connection
2 inch
Maximum outlet pressure
179.85 psi
Power (P2) required by pump
10 HP
Motor diameter
6 inch
Minimum borehole diameter
5.71 in
Motor flange design
NEMA
DOE Pump Energy Index CL
0.89
Pump speed on which pump data are based
3450 rpm
Stages
20
Approvals
CULDWUS,CCSAUS
Rated flow
73.5 US gpm
Model
A
Diameter
5.71 in
Approvals for drinking water
PROP65
Return valve
YES
Rated head
403.6 ft
Curve tolerance
ISO9906:2012 3B
Impellers
NONE
Valve
YES
Connection
2 inch
Impeller
Stainless steel
Number of reduced-diameter impellers
NONE
Pump
10 HP
