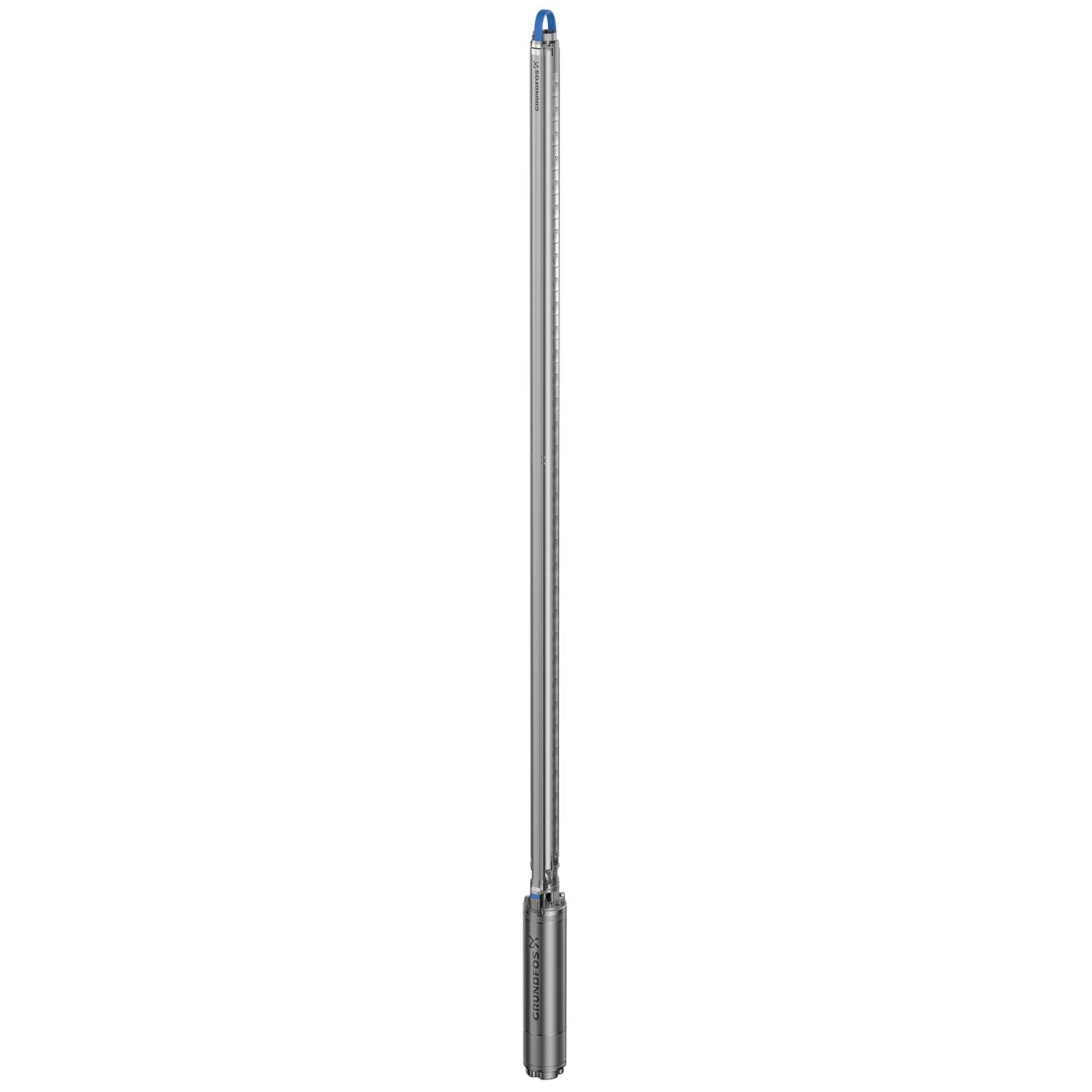

![Grundfos 98924473 - 62S75-17]()
![Grundfos 98924473 - 62S75-17]()
![Grundfos 98924473 - 62S75-17]()
![Grundfos 98924473 - 62S75-17]()
Description
62S75-17 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.
Maximum operating pressure
870.23 psi
Power factor 1
0.83-0.82-0.80
Type of connection
NPT(F)
Rated voltage
3 x 208-220-230 V
Thermal protec
external
KVA code
H
Starting current
430-490-520 %
Liquid temperature range
5 .. 104 °F
Insulation class (IEC 85)
F
Built-in motor protection
NONE
Net weight
125.0 lb
Rated speed
3450-3470-3480 rpm
Gross weight
200.0 lb
Rated power - P2
7.5 HP
Size of connection
2 inch
Maximum outlet pressure
220.46 psi
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
7.5 HP
Shaft
Product name:62S75-17
Rated current
27.5-26.5-26.0 A
Service factor
1.15
Windings
Enamelled
Motor type
MS6000
Motor diameter
6 inch
Minimum borehole diameter
5.71 in
Motor flange design
NEMA
DOE Pump Energy Index CL
0.88
Pump speed on which pump data are based
3450 rpm
Stages
17
Shaft seal for motor
SIC/SICNBR
Approvals
CULDWUS,CCSAUS
Rated flow
57.7 US gpm
Model
A
Version
T40
Diameter
5.71 in
Motor
Stainless steel
Approvals for drinking water
PROP65
Return valve
YES
Rated head
367.5 ft
Type
MS6000
Curve tolerance
ISO9906:2012 3B
Motor version
T40
Impellers
NONE
Valve
YES
Connection
2 inch
Impeller
Stainless steel
Number of reduced-diameter impellers
NONE
Pump
7.5 HP
