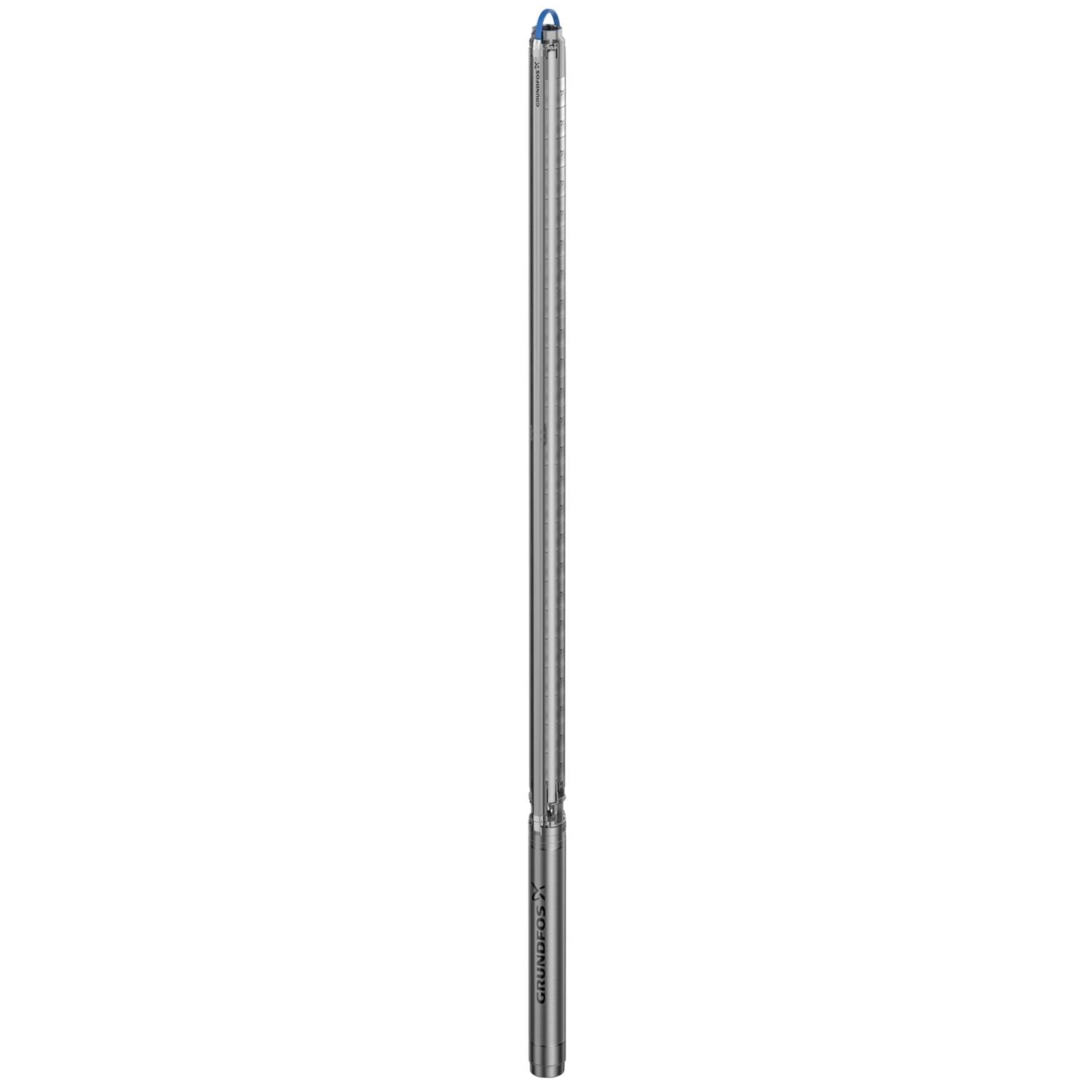

Grundfos 98924468 - 62S50-9
Grundfos 98924468 - 62S50-9
Grundfos 98924468 - 62S50-9
Grundfos 98924468 - 62S50-9
Grundfos 98924468 - 62S50-9
Grundfos 98924468 - 62S50-9

Grundfos 98924468 - 62S50-9

GRUNDFOSSKU: 98924468
Price:
$5,999.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

62S50-9 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Maximum operating pressure 870.23 psi
Power factor 1 0.87-0.78
Type of connection NPT(F)
Rated voltage 3 x 208-230 V
KVA code K
Starting current 490-590 %
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 71.9 lb
Rated speed 3425-3470 rpm
Gross weight 127.0 lb
Rated power - P2 5 HP
Size of connection 2 inch
Maximum outlet pressure 116.03 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 5 HP
Shaft Product name:62S50-9
Rated current 18.6-17.4 A
Service factor 1.15
Windings Enamelled
Motor type MS4000
Motor diameter 4 inch
Minimum borehole diameter 4.13 in
Motor flange design NEMA
DOE Pump Energy Index CL 0.88
Pump speed on which pump data are based 3450 rpm
Stages 9
Approvals CULDWUS,CCSAUS
Rated flow 57.7 US gpm
Approvals for motor CE,EAC,CSACE,EAC,CSA
Model A
Version T40
Diameter 4.13 in
Motor Stainless steel
Approvals for drinking water PROP65
Return valve YES
Rated head 192.3 ft
Type MS4000
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 2 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 5 HP

Motor Curves

Dimensional Drawing

DWiring Diagram
