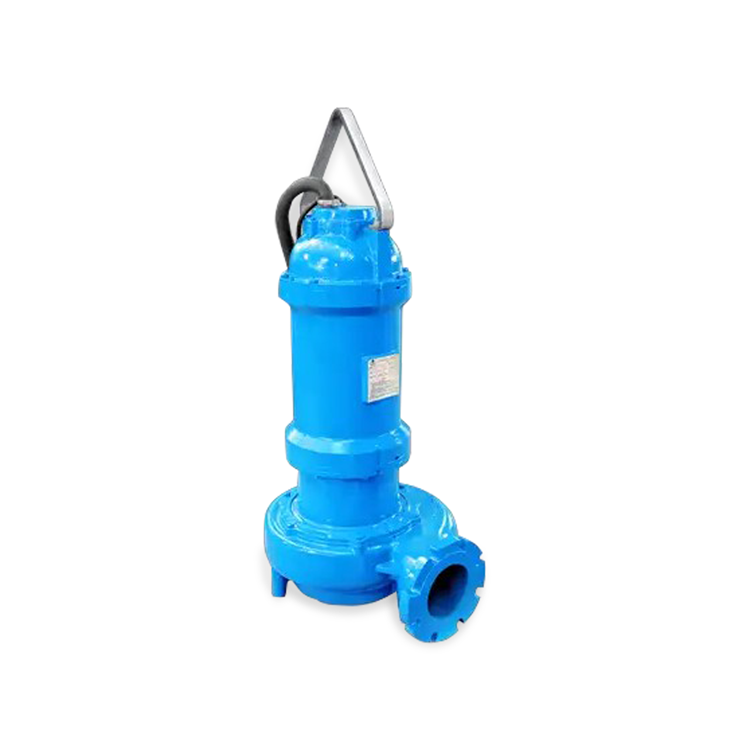

Barmesa SW Series 6SWL7546DS Submersible Solids Handling Pump 7.5 HP 460V 3PH 40' Cord Manual | Three Phase | 150 mm | Cast Iron | Stainless Steel | Enclosure | 104°F | 40°C | Control Panel Compatible

Save $3,324.80 This item ships free!
BarmesaSKU: 62172108

Price:
Sale price$13,299.20 Regular price$16,624.00
or Call for most up to date lead times. (781) 281-8905

Description

Barmesa SW Series Submersible Solids Handling Pump Description

The New Barmesa State of the Art SW Pump offers durability and premium energy efficiency, making it a more sustainable product for the end user. Our engineers designed the SW Series to handle the most demanding applications with trouble-free operation. The SW series offers, superior cooling capabilities, continuous lubrication, motor moisture protection, and the highest efficient motor available.

Barmesa SW Series Submersible Solids Handling Pump Features
MOTOR: NEMA, Three Phase, Premium Efficiency, Oil-Filled, Squirrel Cage Induction, Inverted Duty Rated. Class H Insulation. Requires Overload Protection in Control Panel.
MOTOR HOUSING: Cast Iron ASTM A-48 Class 30
BEARINGS: Upper - Single Row and Oil Lubricated for Radial Load. Lower - Double Row and Oil Lubricated, for Radial and Thrust Loads.
SEAL DESIGN: Tandem, Mechanical, in Oil Filled Reservoir
SEAL MATERIAL: Inboard Rotating Faces - Carbon; Stationary Faces - Ceramic. Outboard Rotating and Stationary Faces, Silicone Carbide. Buna-N Elastomer and 300 Series Stainless Steel Hardware.
IMPELLER: Enclosed Dual Vane with Pumpout Vanes on Backside, Dynamically Balanced. Ductile Iron ASTM A-536, 65-45-12.
DISCHARGE: 6", 125lb, Horizontal Flange, Slotted to Accommodate 150 mm ISO Flange.
TEMPERATURE RATING: 104°F (40°C) Continuous

Motor Curves
