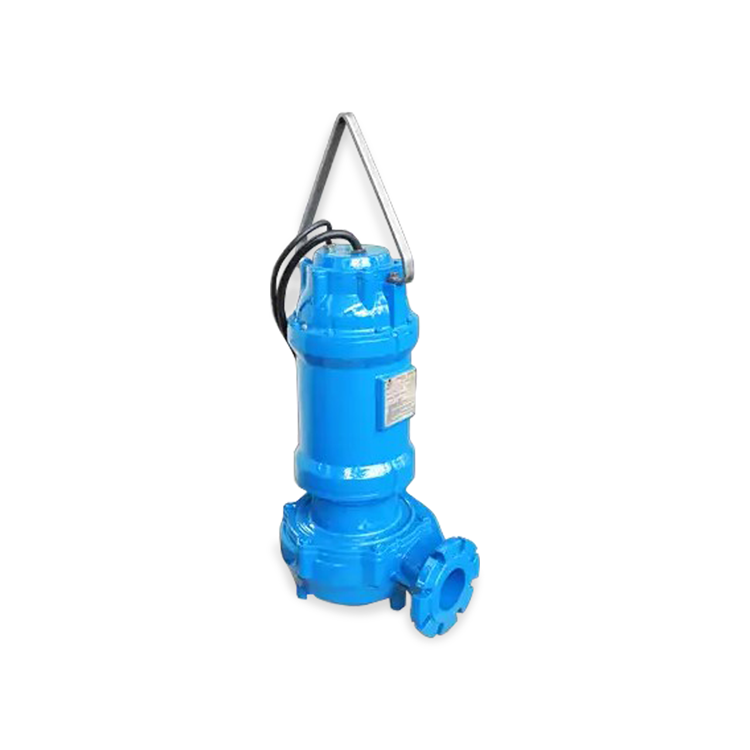

Barmesa SW Series Submersible Solids Handling Pump Description
The New Barmesa State of the Art SW Pump offers durability and premium energy efficiency, making it a more sustainable product for the end user. Our engineers designed the SW Series to handle the most demanding applications with trouble-free operation. The SW series offers, superior cooling capabilities, continuous lubrication, motor moisture protection, and the highest efficient motor available.
Barmesa SW Series Submersible Solids Handling Pump Features
MOTOR: NEMA, Three Phase, Premium Efficiency, Oil-Filled, Squirrel Cage Induction, Inverted Duty Rated. Class H Insulation. Requires Overload Protection in Control Panel.
MOTOR HOUSING: Cast Iron ASTM A-48 Class 30
BEARINGS: Upper - Single Row and Oil Lubricated. Lower - Double Row and Oil Lubricated, for Radial and Thrust Loads.
SEAL DESIGN: Tandem, Mechanical, in Oil Filled Reservoir
SEAL MATERIAL: Inboard Rotating Faces - Carbon; Stationary Faces - Ceramic. Outboard Rotating and Stationary Faces, Silicone Carbide. Buna-N Elastomer and 300 Series Stainless Steel Hardware.
IMPELLER: Enclosed Dual Vane with Pumpout Vanes on Backside, Dynamically Balanced. Ductile Iron ASTM A-536, 65-45-12.
DISCHARGE: 4", 125lb, Horizontal Flange, Slotted to Accommodate 100 mm ISO Flange.
TEMPERATURE RATING: 104°F (40°C) Continuous
