Barmesa BGP502DS Submersible Grinder Pump 5.0 HP 230V 1PH 40' Cord Manual | Single Phase | Cast Iron | Stainless Steel | Enclosure | 104°F | 60°C | Wastewater Use | Sewage Use | Control Panel Compatible

Save $1,380.48 This item ships free!
BarmesaSKU: 62170608

Price:
Sale price$5,521.92 Regular price$6,902.40
or Call for most up to date lead times. (781) 281-8905

Description

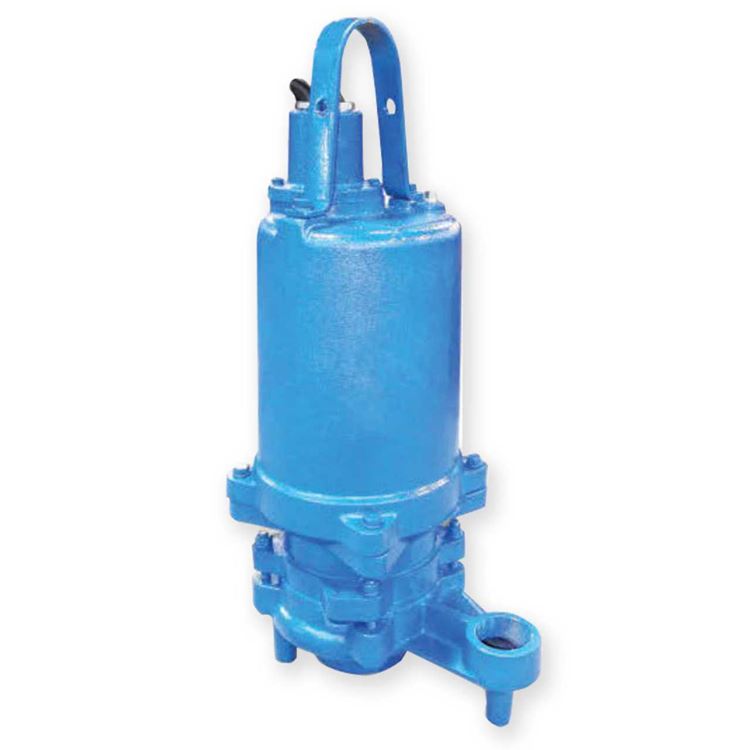

Barmesa BGP-DS Series Submersible Grinder Pump

A Submersible Grinder Pump that is designed to meet the demands of wastewater and sewage applications. Pump may be operated in dry conditions for extended periods of time without damage to the motor and/or seals.

Barmesa BGP-DS Series Submersible Grinder Pump Features
Single Phase, NEMA L, Capacitor Start/Run (to be located in control panel) Oil Filled. Class F Insulation
Cast Iron Motor Housing
Ball Bearings, Single Row, Oil Lubricated.
Double Mechanical Seal
Seal is Silicone Carbide Outboard, Carbon Ceramic Inboard, Buna-N Elastomer and Stainless Steel Hardware.
Impeller is made of Cast Iron ASTM A-48 Class 30
2" NPT Vertical Discharge
Temperature Rating: 104°F (60°C)

Motor Curves
