Barmesa PS1 1/4-10-2 End-Suction Centrifugal Stainless Steel Pump 10 HP 3PH | 60Hz | Three Phase | Stainless Steel | Enclosure | 212°F | 250°F | 100°C | 121°C | Max 250°F | Water Use | Control Panel Compatible

Save $1,006.60 This item ships free!
BarmesaSKU: 60390106

Price:
Sale price$4,026.40 Regular price$5,033.00
or Call for most up to date lead times. (781) 281-8905

Description

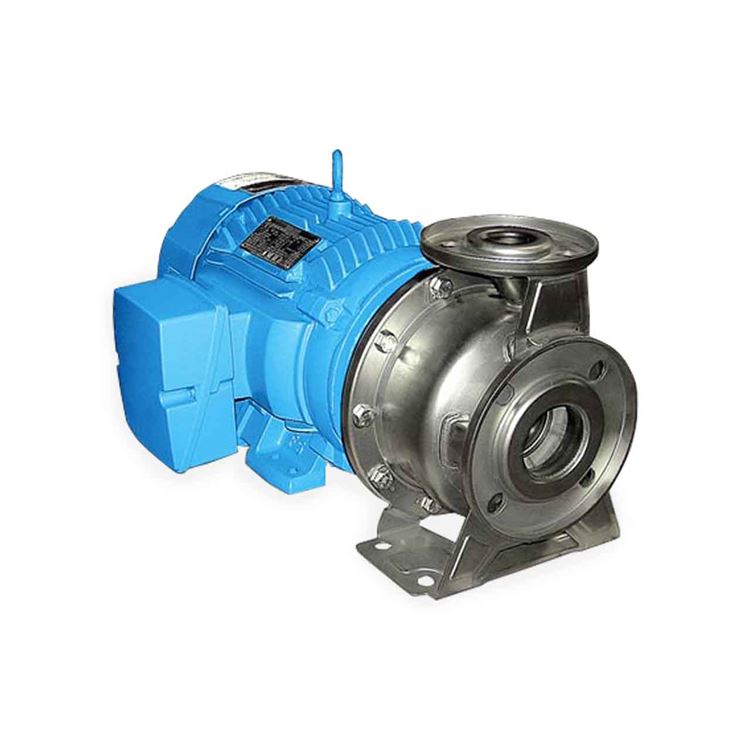

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Applications include Booster Systems, Water Transfers, Chilled Water Systems and HIgh Flow-Rate/Medium Pressure.

Barmesa PS Series End-Suction Centrifugal Stainless Steel Pump Features
NEMA JM, Totally Enclosed With External Ventilation; 60 Hz, 3450 RPM (2 poles) and 1750 RPM (4 poles), 230/460 Volts Three Phase. Requires Overload Protection to be Included in Control Panel.
304 Series Stainless Steel Housing
Mechanical Type 21, Lubricated by Water Seal
Seal is Ceramic Stationary Part, Carbon Ring Seal and Exclusion in the Rotating Part. Buna-N Elastomer and Stainless Steel Spring.
Impeller is made of 304 Series Stainless Steel
2.0" 150 lb ANSI, Flange Horizontal Suction
1¼" 150 lb ANSI, Flange Horizontal Discharge
Temperature Rating: 212 °F (100 °C); With Seal for High Temperature Rises up to 250 °F (121 °C).

Motor Curves
