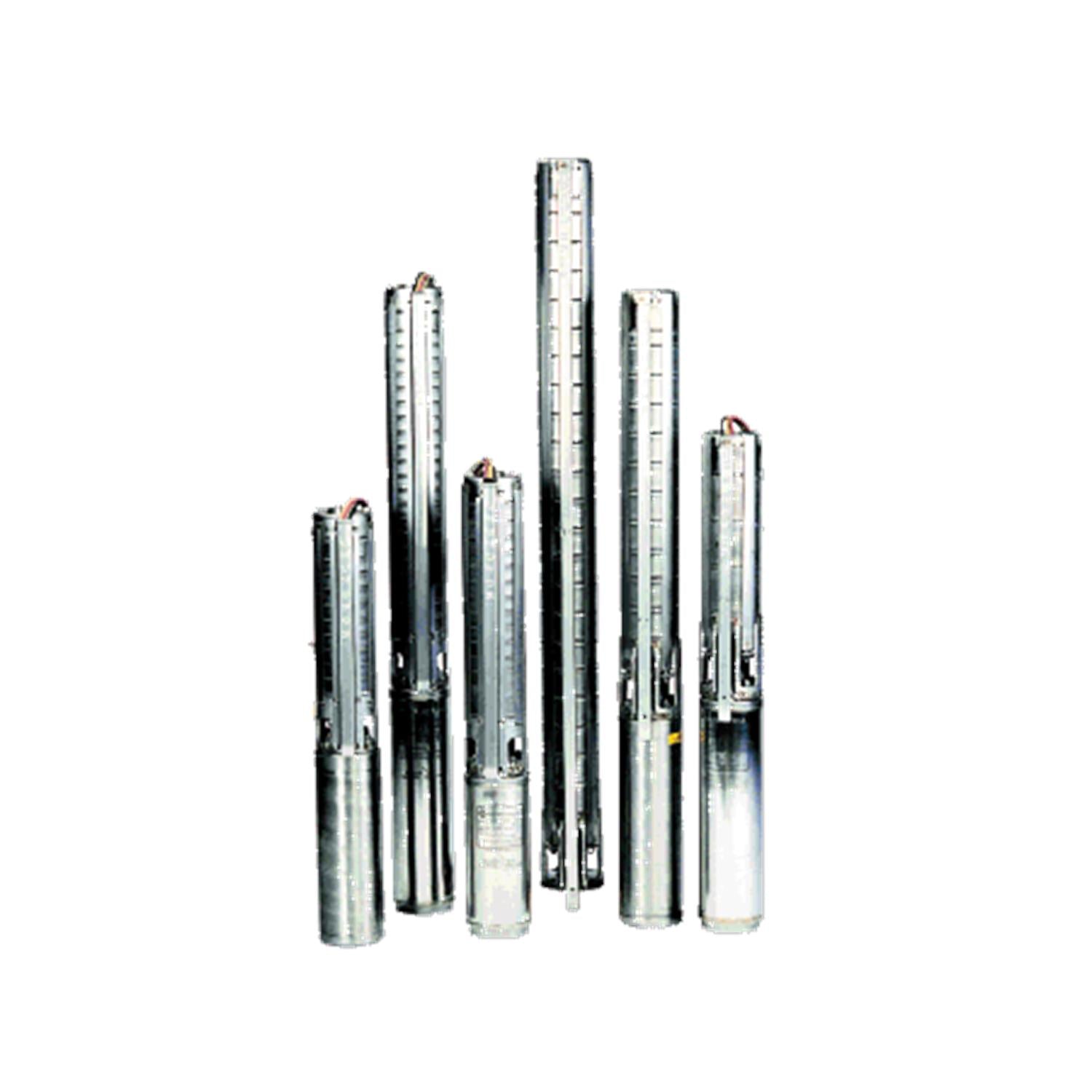

Image shown may not be actual product
Grundfos 81545225 - 5S10-22
Grundfos 81545225 - 5S10-22
Grundfos 81545225 - 5S10-22
Grundfos 81545225 - 5S10-22
Grundfos 81545225 - 5S10-22
Grundfos 81545225 - 5S10-22

Grundfos 81545225 - 5S10-22

GRUNDFOSSKU: 81545225
Price:
$2,587.00
Typically In Stock – standard inventory item, typically available in 1 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 81545225 - 5S10-22 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum operating pressure 217.56 psi
Power factor 1 0.82
Type of connection NPT(F)
Rated voltage 1 x 230 V
Thermal protec internal
KVA code K
Starting current 4.3
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) B
Built-in motor protection CONTACT
Net weight 35.3 lb
Rated speed 3450 rpm
Axial load max 772 lb
Gross weight 35.9 lb
Rated power - P2 1 HP
Size of connection 1 inch
Maximum outlet pressure 269.77 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 1 HP
Shaft Product name:5S10-22
Rated current 9.8 A
Cable type ROUND SINGLE
Service factor 1.4
Length of cable 3.94 ft
Windings Enamelled
Minimum efficiency index, MEI ≥ 0.7
Power cable type ROUND SINGLE
Motor type MS402
Motor diameter 4 inch
Minimum borehole diameter 4.13 in
Motor flange design Grundfos
Pump speed on which pump data are based 3450 rpm
Stages 22
Shaft seal for motor LIPSEAL
Rated flow 4.4 US gpm
Model A
Version T40
Diameter 4.13 in
Motor CSIR
Approvals on nameplate CE,EAC,CSACOMP,UR
Return valve YES
Rated head 429.8 ft
Type ROUND SINGLE
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 1 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 1 HP
