Description

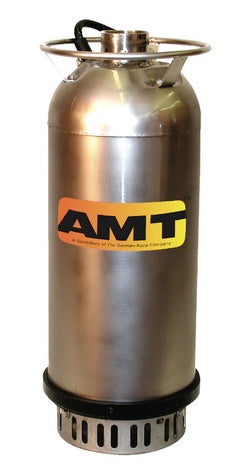

The AMT 577B-95 is a 5 HP 3-Phase Cast Iron/SS pumps submersible contractor pump 577b-95. AMT Submersible Contractor pumps are intended for use in residential, commercial and industrial settings. Applications include: construction sites, waste water, storm water, farming, irrigation, excavation, mining, marine, basement and other general
Submersible Construction — Designed for Continuous Submerged Operation
Cast iron and stainless steel construction is rated for continuous submerged operation. The oil-filled motor dissipates heat into the surrounding fluid — allowing continuous duty in submerged installations where air-cooled motors would overheat.
Hi-Chromium Steel Impeller — Abrasion Resistant for Dirty Water
Hi-chromium (HCr) steel impeller resists abrasive wear from sand, grit, and sediment. In dirty water applications, HCr impellers can last 3-5x longer than standard cast iron impellers before replacement is required.
Silicon Carbide Mechanical Seals
Silicon carbide seal faces are significantly harder than standard carbon/ceramic seals. In sediment-laden and abrasive applications, silicon carbide seals dramatically outlast standard seal materials before replacement is needed.
Self-Cleaning Impeller — Solids Handling
The impeller geometry passes solids up to 3/8" diameter without clogging — semi-solids, leaves, and construction debris pass through rather than lodging between vanes, reducing unplanned downtime in demanding dewatering applications.
UL / CSA Listed
UL and CSA listed for safe installation in US and Canadian electrical systems. Required for commercial and industrial installations where AHJ inspection and code compliance are mandatory.
Companion Flange Connection — 3" and 4" Models
3" and 4" models feature companion flange connections for direct attachment to flanged discharge piping — eliminates threaded adapter fittings and provides a more secure, leak-resistant discharge connection in high-vibration applications.
| Model Number | 577B-95 |
| Series | Contractor Submersibles |
| Category | Submersible and Sump Pumps |
| Horsepower | 5 HP |
| Phase | 3-Phase |
| Voltage | 460V |
| Casing Material | Cast Iron/SS |
| Weight | 114 lbs |
| List Price | $4,502.00 |
| Max Temperature | 104° F |
| Max Solids Handling | 3/8" Diameter |
| Max Fluid Temperature | 104° F |
| Max Solids Handling | 3/8" Diameter |
| Model | HP | Type | Frame | Voltage | Phase | Casing | Seal | Weight | List Price |
|---|---|---|---|---|---|---|---|---|---|
| 5770-95 | 1 HP | 115 | 1 | Cast Iron/SS | 53 lbs | 1,810.00 | |||
| 5771-95 | 1 HP | 230 | 1 | Cast Iron/SS | 51 lbs | 2,156.00 | |||
| 5773-95 | 2 HP | ||||||||
| 5777-95 | 3 HP | 230 | 1 | Cast Iron/SS | 110 lbs | 3,633.00 | |||
| 577A-95 | 5 HP | 230 | 3 | Cast Iron/SS | 110 lbs | 4,502.00 | |||
| 577B-95 | 5 HP | 460 | 3 | Cast Iron/SS | 114 lbs | 4,502.00 | |||
| 577D-95 | 7.5 HP | 230 | 3 | Cast Iron/SS | 172 lbs | 6,159.00 | |||
| 577E-95 | 7.5 HP | 460 | 3 | Cast Iron/SS | 175 lbs | 6,159.00 |
★ Highlighted = this product (577B-95). All models share the same casing and spare parts. QSP = ships within 24 hours.
| Fluid compatibility | For use with non-flammable, non-abrasive liquids compatible with pump component materials. Verify chemical compatibility before use. |
| Seal compatibility | Always verify seal material compatibility with your specific fluid and chemical conditions. |
| Electrical | Requires a properly sized, grounded branch circuit. Do not use an extension cord. Protect motor with a properly sized thermal overload relay. |
| Temperature limit | Maximum fluid temperature 104° F. Exceeding this limit will damage seals and motor insulation. |
