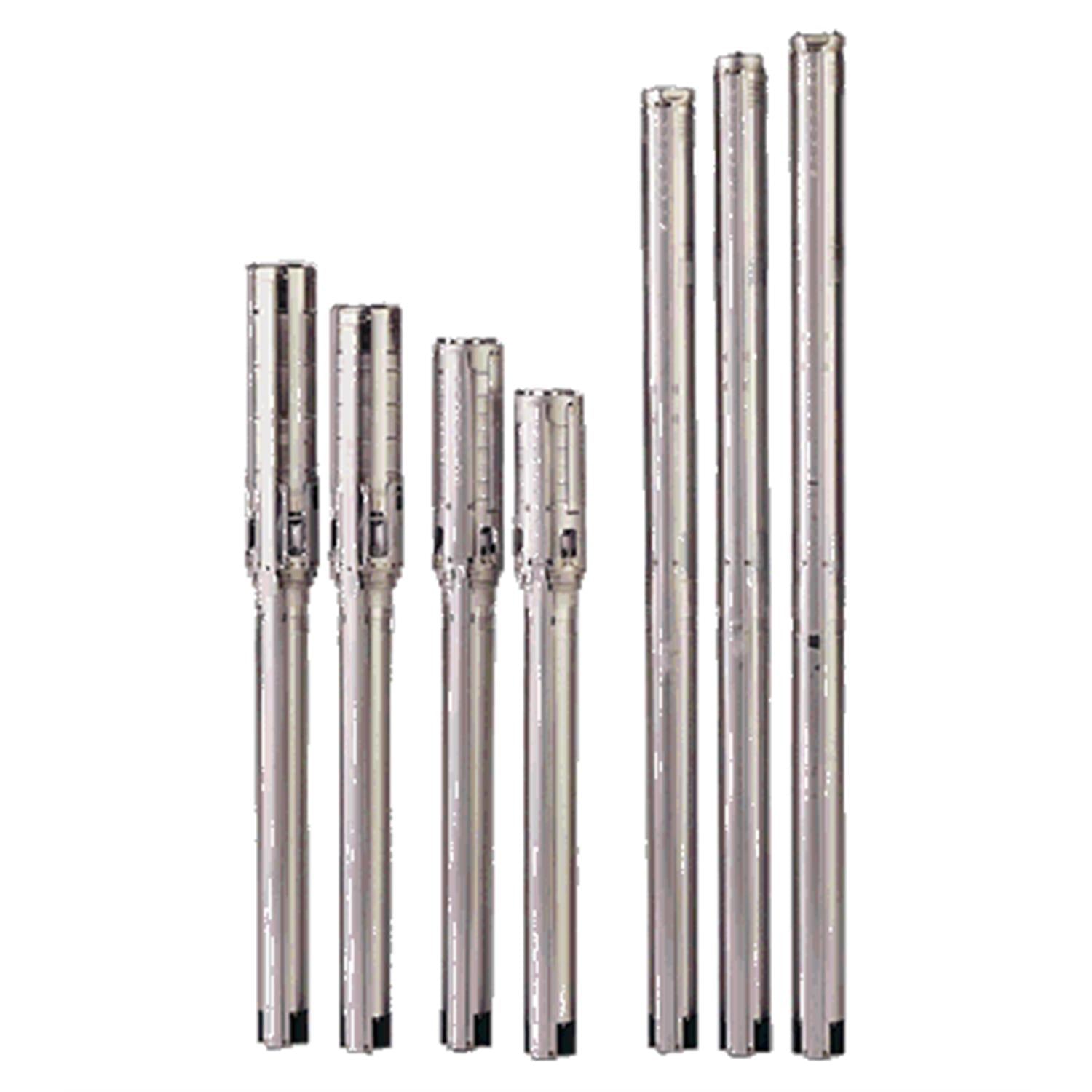

Image shown may not be actual product
![Grundfos 99596874 - 5 SQF-200]()
![Grundfos 99596874 - 5 SQF-200]()
![Grundfos 99596874 - 5 SQF-200]()
![Grundfos 99596874 - 5 SQF-200]()
Description
5 SQF-200 | The 3" SQFlex pump with helical rotor is for high heads and low flow rates. The SQFlex system is a reliable water supply system based on renewable energy sources, such as solar and wind energy. Thanks to its flexible energy supply and performance, the SQFlex system can be combined and adapted to meet any need on the installation site. The SQFlex system has a wide voltage range, built-in maximum power point tracking (MPPT) as well as dry-running, voltage and overload protection.
EAN
5713831652847
Applications
Solar Water Solutions
Material Pricing Group
17
Maximum liquid temperature
104 °F
Density
62.29 lb/ft³
Power factor 1
1
Selected liquid temperature
68 °F
Thermal protec
internal
Pumped liquid
Water
Power input - P1
0.9 kW
Pump outlet
1 1/4 NPT"
Insulation class (IEC 85)
F
Built-in motor protection
Y
Net weight
11.6 lb
Rated speed
10700 rpm
Start. method
direct-on-line
Gross weight
13.2 lb
Enclosure class (IEC 34-5)
IP68
Rated current
8.4 A
Length of cable
2 m
Minimum efficiency index, MEI ≥
-.--
Sales region
North America
Motor type
MSF3
Rated voltage ac
1 x 90-240 V
Minimum borehole diameter
76 mm
Rated voltage dc
30-300 V
Stages
6
Approvals
CE
Diameter
2.99 in
Power 1
0.9 kW
Type
MSF3
Pump No
99596853
Valve
pump with built-in non-return valve
Impeller
Polyamide
Maximum ambient pressure
15 bar
Pump
Stainless steel
