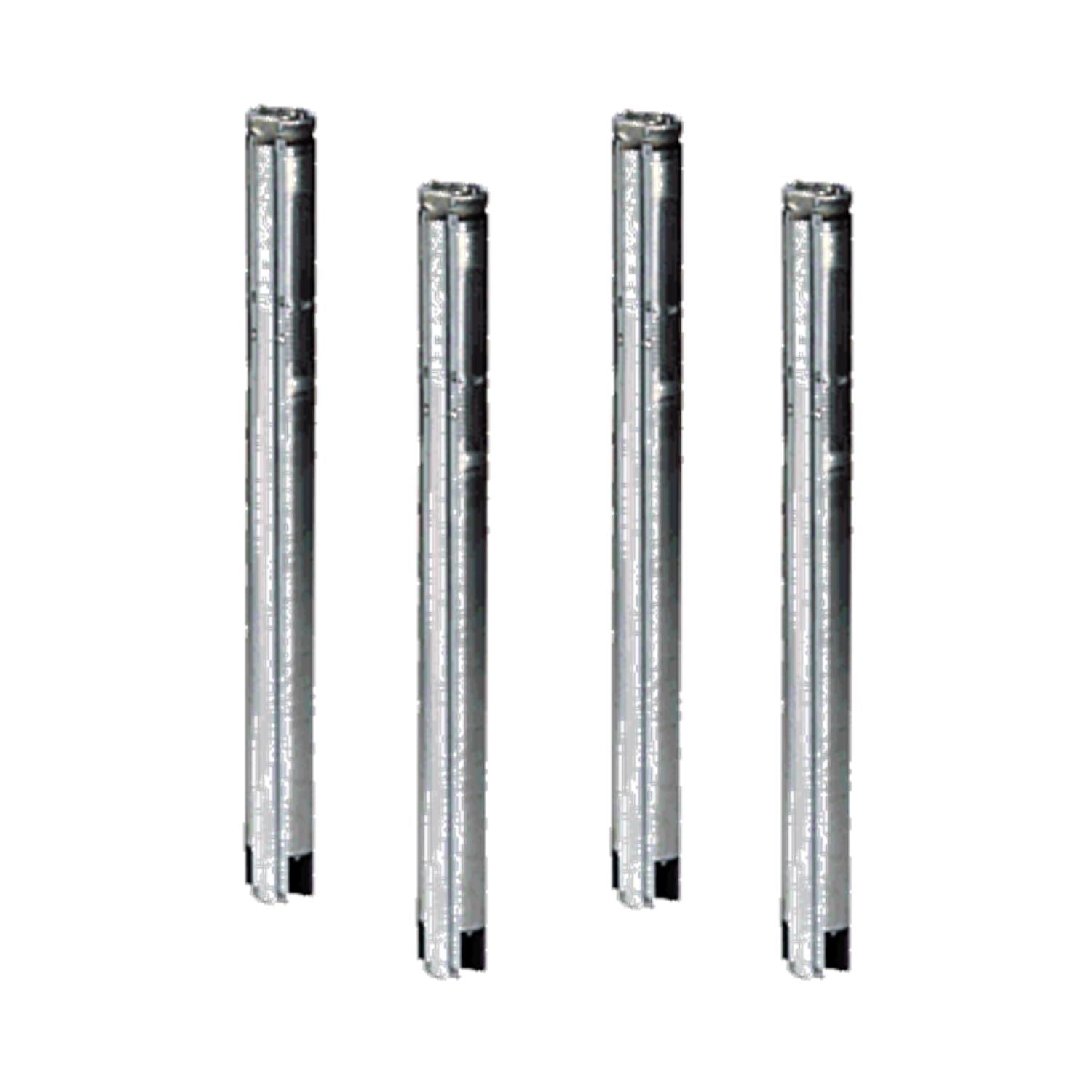

![Grundfos 96160179 - 5 SQE10-360]()
![Grundfos 96160179 - 5 SQE10-360]()
![Grundfos 96160179 - 5 SQE10-360]()
![Grundfos 96160179 - 5 SQE10-360]()
Description
Grundfos 96160179 - 5 SQE10-360 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Maximum operating pressure
217.56 psi
Power factor 1
1
Rated voltage
1 x 200-240 V
Thermal protec
internal
Power input - P1
2.05 kW
Pump outlet
1"NPT
Liquid temperature range
32 .. 95 °F
Insulation class (IEC 85)
F
Built-in motor protection
Y
Net weight
14.1 lb
Rated speed
10700 rpm
Gross weight
15.7 lb
Rated power - P2
2.08 HP
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
2.44 HP
Rated current
11.2 A
Service factor
2.07
Length of cable
4.92 ft
Sales region
Namreg
Motor type
MSE3
Minimum borehole diameter
2.99 in
Stages
8
Approvals
cULus
Rated flow
4.4 US gpm
Model
B
Diameter
2.99 in
Motor
Stainless steel
Return valve
Product name:5 SQE10-360
Rated head
442.9 ft
Type
MSE3
Curve tolerance
ISO9906:2012 3B
Valve
pump with built-in non-return valve
Impeller
Composite
Pump
2.44 HP
Motor Curves
