Grundfos 19340005 - 475S500-5 | Vertical Installation | Vertical | Horizontal | Submersible

GrundfosSKU: 19340005

Price:
Sale price$8,686.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
475S500-5 · Grundfos Accessory / Spare Part / Control
ACC60 HzStainless steel

The Grundfos 19340005 (475S500-5) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 498US gpm at 282.2ft. Applications include Residential groundwater intake, Residential water pressure boosting, Municipal wells and more.

Max Flow
498US gpm
Max Head
282.2ft
Max Pressure
870.23psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 475S500-5
Series: ACC
Model Code: 475S500-5
Impeller Material: Stainless steel
Technical Specifications
Model Number 19340005
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Frequency 60 Hz
Pump Speed 3450rpm
Nominal Flow 498US gpm
Nominal Head 282.2ft
Max Operating Pressure 870.23psi
Max Fluid Temperature 140°F
Nominal Pipe Bore 6inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Approvals / Certifications CULDWUS, CCSAUS
Applications
Residential groundwater intake
Residential water pressure boosting
Municipal wells
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 475S500-5
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals CULDWUS,CCSAUS
Approvals for drinking water PROP65
Connection 6 inch
Curve tolerance ISO9906:2012 3B
Diameter 8.11 in
Gross weight 168.0 lb
Impeller Stainless steel
Impellers NONE
Liquid max temp 140°F
Liquid temperature range 5 .. 140 °F
Maximum operating pressure 870.23 psi
Maximum outlet pressure 159.54 psi
Minimum borehole diameter 8.11 in
Minimum efficiency index, MEI ≥ -.--
Model B
Motor diameter 8 inch
Motor flange design Grundfos
n rpm 3450rpm
Net weight 107.0 lb
Number of reduced-diameter impellers NONE
Power (P2) required by pump 50 HP
Pump 50 HP
Pump speed on which pump data are based 3450 rpm
Rated flow 498 US gpm
Rated head 282.2 ft
Return valve YES
Size of connection 6 inch
Stages 5
Type of connection NPT(F)
Valve YES

Motor Curves

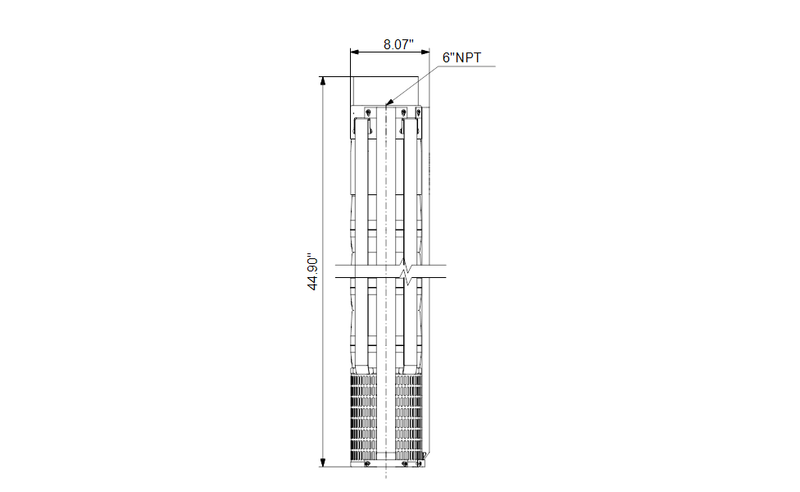

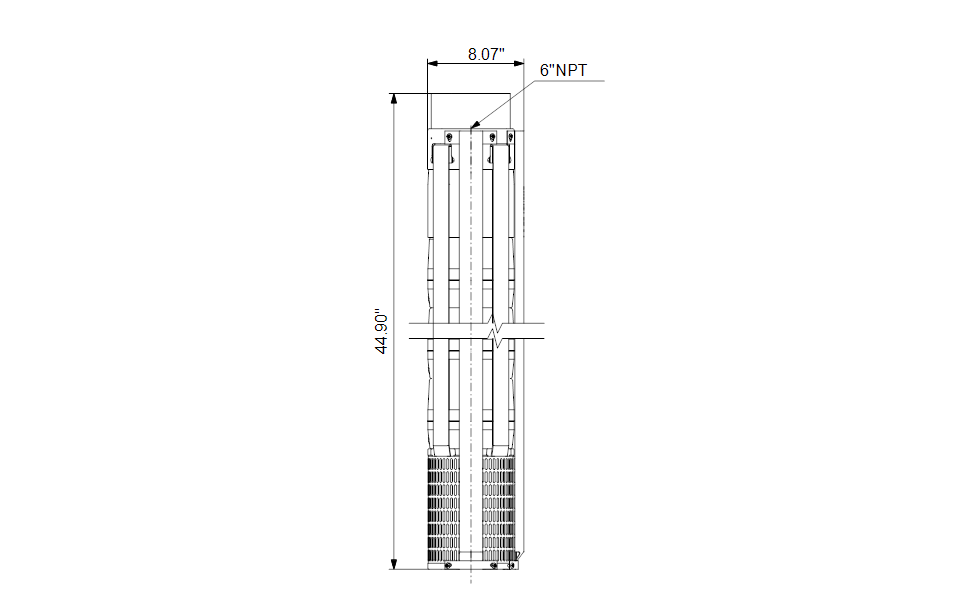

Dimensional Drawing
