Grundfos 19253002 - 475S200-2 | Vertical Installation | Vertical | Horizontal | Submersible

GRUNDFOSSKU: 19253002

Price:
Sale price$12,070.30
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

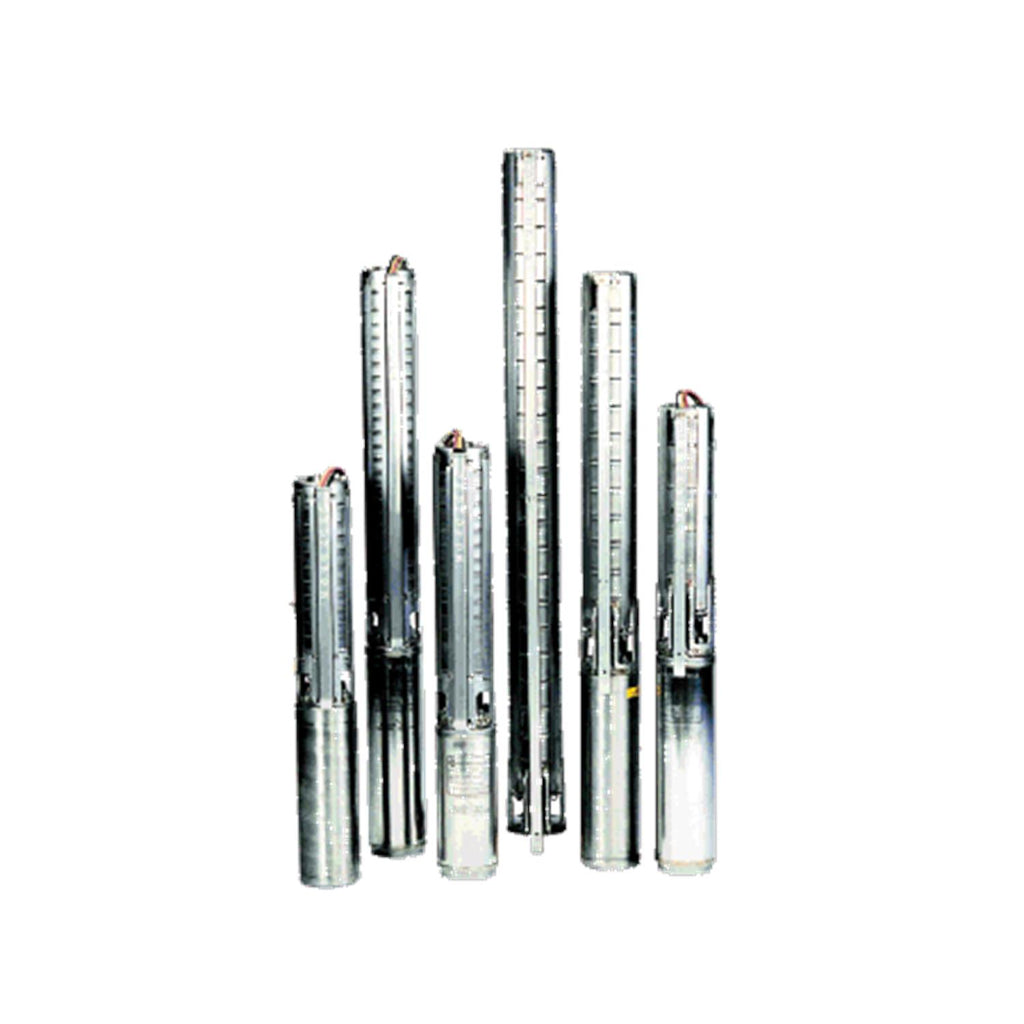

475S200-2 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Approvals CULDWUS,CCSAUS
Approvals for drinking water PROP65
Built-in motor protection NONE
Connection 6 inch
Curve tolerance ISO9906:2012 3B
Diameter 7.4 in
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
Gross weight 258.0 lb
Impeller Stainless steel
Impellers NONE
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code H
Liquid max temp 104°F
Liquid temperature range 5 .. 104 °F
Maximum operating pressure 870.23 psi
Maximum outlet pressure 92.82 psi
Minimum borehole diameter 7.4 in
Minimum efficiency index, MEI ≥ -.--
Model B
Motor Stainless steel
Motor diameter 6 inch
Motor flange design Grundfos
Motor type MS6000
Motor version T40
n rpm F
Net weight 192.0 lb
Number of reduced-diameter impellers NONE
P2 kW 20 HP
Phase 3
Power (P2) required by pump 20 HP
Power factor 1 0.86-0.85-0.84
Pump 20 HP
Pump speed on which pump data are based 3450 rpm
Rated current 71.5-67.0-65.0 A
Rated flow 498 US gpm
Rated head 111.6 ft
Rated power - P2 20 HP
Rated speed 3430-3450-3470 rpm
Rated voltage 3 x 208-220-230 V
Return valve YES
Service factor 1.15
Shaft Product name:475S200-2
Shaft seal for motor SIC/SICNBR
Size of connection 6 inch
Stages 2
Start. 1 method direct-on-line
Starting current 460-520-570 %
Thermal protec external
Type MS6000
Type of connection NPT(F)
Valve YES
Version T40
Windings Enamelled

Motor Curves

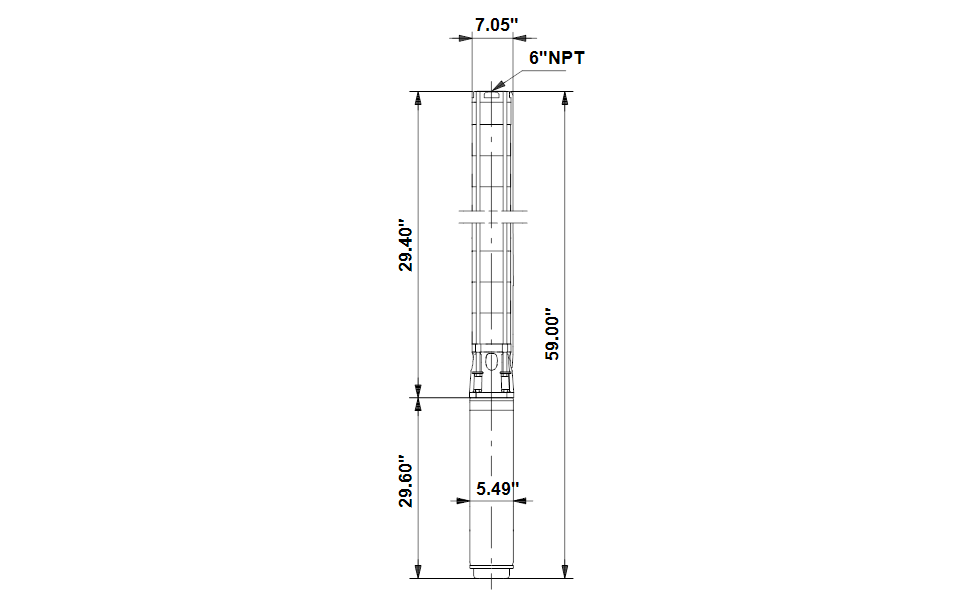

Dimensional Drawing

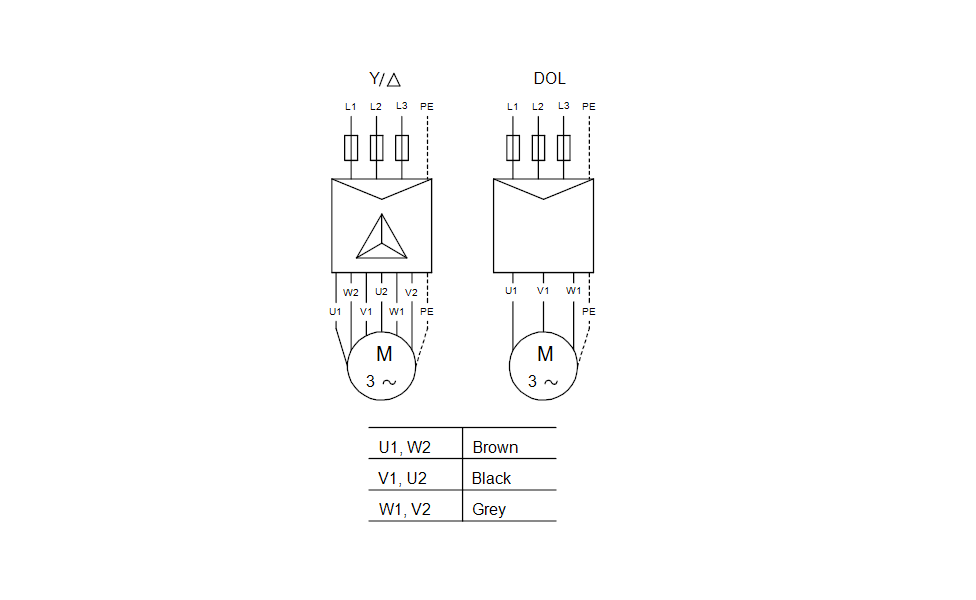

DWiring Diagram
