Grundfos 19250013 | Submersible | Borehole | Stainless Steel | 125 HP | 13 Stages | 8″ Motor | 6″ Discharge | GroundWater Irrigation

GRUNDFOSSKU: 19250013

Price:
Sale price$20,905.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 19250013 - 475S1250-13 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Approvals CULDWUS,CCSAUS
Approvals for drinking water PROP65
Connection 6 inch
Curve tolerance ISO9906:2012 3B
Diameter 8.11 in
Gross weight 335.0 lb
Impeller Stainless steel
Impellers NONE
Liquid max temp 140°F
Liquid temperature range 5 .. 140 °F
Maximum operating pressure 870.23 psi
Maximum outlet pressure 404.66 psi
Minimum borehole diameter 8.11 in
Minimum efficiency index, MEI ≥ -.--
Model B
Motor diameter 8 inch
Motor flange design Grundfos
n rpm 3450rpm
Net weight 201.0 lb
Number of reduced-diameter impellers NONE
Power (P2) required by pump 123 HP
Pump 123 HP
Pump speed on which pump data are based 3450 rpm
Rated flow 498 US gpm
Rated head 731.7 ft
Return valve YES
Size of connection 6 inch
Stages 13
Type of connection NPT(F)
Valve YES

Motor Curves

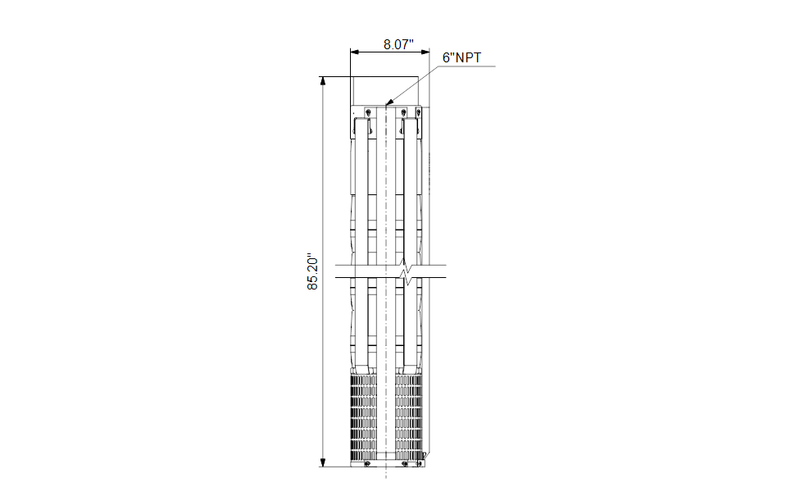

Dimensional Drawing
