Image shown may not be actual product

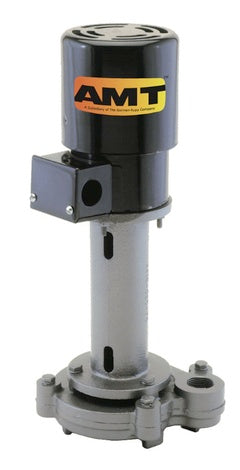

![AMT Pumps Coolant Pump 4430-95 (4430-95)]()
![AMT Pumps Coolant Pump 4430-95 (4430-95)]()
Description
AMT Pump Company — A Gorman-Rupp Company · Royersford, PA
Model 4430-95 · Heavy Duty Coolant Pumps · Coolant Pumps
The AMT 4430-95 is a 1/3 HP TEFC Cast Iron pumps coolant pump 4430-95. Delivers up to 67 GPM. The AMT Heavy Duty Industrial Coolant pump has been designed for a broad range of Industrial/Commercial coolant and recirculating applications. Back vanes on the impellers of models 4421-95 through 4443-95 balance pressure and thereby eliminate the n
Horsepower
1/3 HP
Enclosure
TEFC
Voltage
115V
Casing
Cast Iron
QSP — Quick Ship
Ships within 24 hours on standard configurations — no extended lead time
UL / CSA Listed
Listed for safe installation in US and Canadian electrical systems
NEMA 56C Frame
Standard NEMA frame — direct motor replacement with any off-the-shelf motor
Expert Support
Technical specialists available — call (781) 281-8905 or chat
Why This Product
Designed for Machine Tool Coolant Circulation
Purpose-built for continuous coolant circulation in CNC machine tools, lathes, mills, and grinding machines. Submersible or pedestal-mount configurations designed for coolant sump installation.
Coolant-Compatible Materials
Constructed from materials compatible with water-soluble cutting fluids, synthetic coolants, and semi-synthetic coolants. Not designed for petroleum-based cutting oils — verify compatibility before use.
Continuous-Duty Motor
Motor is rated for continuous operation — the pump runs whenever the machine runs. Designed for the duty cycle of a production machine tool, not a general-purpose pump with intermittent operation.
Compact Sump-Mount Design
Compact design fits within standard machine tool coolant sumps. The pump mounts directly in the sump without additional support structure — minimizing footprint and simplifying installation.
Self-Priming from Shallow Sumps
Low net positive suction head requirements allow reliable priming even when coolant levels are low. Important for machines with small sumps where coolant level fluctuates during operation.
TEFC / Coolant-Sealed Motor
Sealed motor prevents coolant and mist intrusion into windings — the leading cause of coolant pump motor failure in machine tool applications where coolant splashing is unavoidable.
Technical Specifications
| Model Number | 4430-95 |
| Series | Heavy Duty Coolant Pumps |
| Category | Coolant Pumps |
| Horsepower | 1/3 HP |
| Motor Enclosure | TEFC |
| Motor Frame | 56C |
| Voltage | 115V |
| Casing Material | Cast Iron |
| List Price | $9 |
| Max Flow Rate | 67 GPM |
| Max Head | 32 Ft. |
| Max Temperature | 200° F |
Key Features
Cast Iron Casing and Column
1-1/4˝ and 1-1/2˝ NPT Discharge Port
Includes Universal Mounting Bracket
Dual Volute Design Reduces Radial Load
Maximum Temperature 200° F
Maximum Flow 67 GPM
Maximum Head 32 Ft.
Self-Cleaning, Semi-Open Stainless
Available with Single or Three Phase
1/3 to 3/4 HP Totally Enclosed Fan
Solids Handling and Dirty Liquid Design
1-1/4” and 1-1/2” NPT Discharge Port
Self-cleaning, Semi-open Stainless Steel Impeller
Single or Three Phase 56C Motor Available
1/3 to 3/4 HP TEFC Motor, 1725 RPM
QSP – Quick Ship Pumps
Performance Summary
| Max Flow Rate | 67 GPM |
| Max Head | 32 Ft. |
| Max Fluid Temperature | 200° F |
All Models — Heavy Duty Coolant Pumps
| Model | HP | Type | Frame | Voltage | Phase | Casing | Seal | Weight | List Price |
|---|---|---|---|---|---|---|---|---|---|
| 4421-95 | 1/3 HP | TEFC | 56C | 115 | Cast Iron | 8 | |||
| 4422-95 | 1/3 HP | TEFC | 56C | 230 | Cast Iron | 1 | |||
| 4430-95 | 1/3 HP | TEFC | 56C | 115 | Cast Iron | 9 | |||
| 4431-95 | 1/3 HP | TEFC | 56C | 230 | Cast Iron | 9 | |||
| 4440-95 | 3/4 HP | TEFC | 56C | 115 | Cast Iron | 1 | |||
| 4441-95 | 3/4 HP | ||||||||
| 4443-95 | 3/4 HP | TEFC | 56C | 230 | Cast Iron | 1 |
★ Highlighted = this product (4430-95). All models share the same casing and spare parts. QSP = ships within 24 hours.
Important Notices
| Fluid compatibility | For use with non-flammable, non-abrasive liquids compatible with pump component materials. Verify chemical compatibility before use. |
| Seal compatibility | Always verify seal material compatibility with your specific fluid and chemical conditions. |
| Electrical | Requires a properly sized, grounded branch circuit. Do not use an extension cord. Protect motor with a properly sized thermal overload relay. |
| Temperature limit | Maximum fluid temperature 200° F. Exceeding this limit will damage seals and motor insulation. |
Available Documentation
✓ Spec Sheet — Heavy Duty Coolant Pumps Series
✓ Repair Parts Manual — Specifications Information and Repair Parts Manual 4421-95 t
✓ Price Sheet — Current list pricing
Need the spec sheet, repair manual, or price sheet? Contact PumpStop and we'll send it over.
Before You OrderConfirm voltage, phase, and enclosure type are correct for your installation. All models in the Heavy Duty Coolant Pumps series share the same casing and impeller — only the motor configuration differs. For configuration guidance, chat or call (781) 281-8905. List pricing shown — contact PumpStop for distributor pricing.
