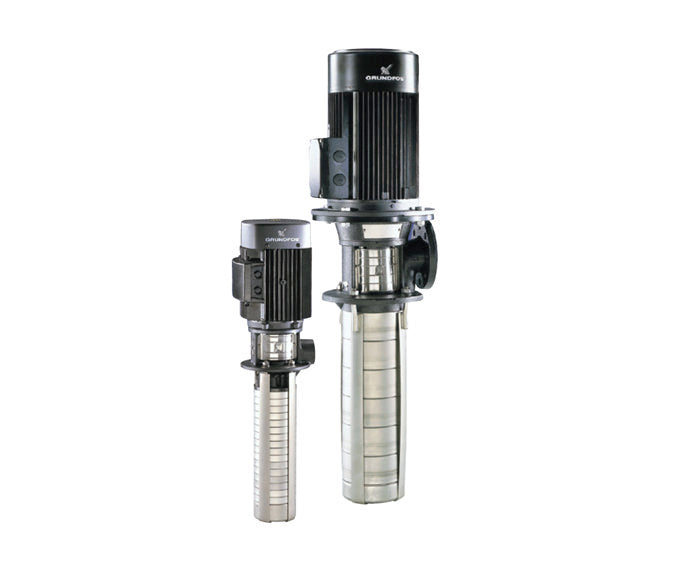

Grundfos Pumps MTC2-110/4 U-W-A-AQQV 3x 230/460V60Hz Multistage Coolant Condensate Pump 43634414

This item ships free!
GrundfosSKU: 43634414

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
43634414 · Grundfos Accessory / Spare Part / Control
ACC1.42HP208-230 YY/460 YV3-Phase60 HzIP54Stainless steel

The Grundfos 43634414 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 13.2US gpm at 120.4ft. Rated 208-230 YY/460 YV, 3-Phase, 60 Hz. Applications include Machining.

Power
1.42HP
Voltage
208-230 YY/460 YV
Phase
3-Phase
Max Flow
13.2US gpm
Max Head
120.4ft
Max Pressure
145.04psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 43634414
Series: ACC
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: AQQV
Technical Specifications
Model Number 43634414
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1.42HP
Voltage 208-230 YY/460 YV
Phase 3-Phase
Frequency 60 Hz
Motor Speed 0rpm
Full Load Current 4,35-4,05/2,02A
Insulation Class F
Protection Class (IP) IP54
Nominal Flow 13.2US gpm
Nominal Head 120.4ft
Max Operating Pressure 145.04psi
Max Fluid Temperature 194°F
Max Ambient Temperature 104°F
Outlet Connection 3/4inch
Pipe Standard NPT
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal AQQV
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230 YY/460 YV, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 43634414
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Applications Cooling Water Systems, Filtration Systems, Industrial Processes, Machining, Washing / Cleaning Systems
Rated power - P2 1 1/2
Voltage 208/230/460

Motor Curves
