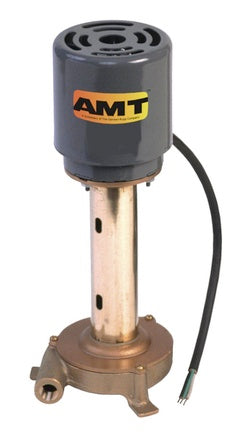

AMT Pumps Coolant / Recirculating Pump Bronze (4230-97)

This item ships free!
AMTSKU: 4230-97

Price:
Sale price$307.49
or Call for most up to date lead times. (781) 281-8905

Description

AMT Pump Company — A Gorman-Rupp Company · Royersford, PA
Model 4230-97 · Bronze Coolant Recirculating · Coolant Pumps
1/25 HPUL/CSA ListedQSP — Quick Ship

The AMT 4230-97 is a 1/25 HP pumps coolant / recirculating pump bronze. Delivers up to 8 GPM. the motor (See Figure 2) and put in 4 or 5 drops of SAE 20W oil or its equivalent every 6 months. Let pump lay on its side for a few minutes to let the oil saturate the bearing. Do not over-oil. Over-oiling can shorten motor life. Replace rubber

Horsepower
1/25 HP
Voltage
230V
Series
Bronze Coolant Rec
QSP — Quick Ship
Ships within 24 hours on standard configurations — no extended lead time
UL / CSA Listed
Listed for safe installation in US and Canadian electrical systems
NEMA 56J Frame
Standard NEMA frame — direct motor replacement with any off-the-shelf motor
Expert Support
Technical specialists available — call (781) 281-8905 or chat
Why This Product

Designed for Machine Tool Coolant Circulation

Purpose-built for continuous coolant circulation in CNC machine tools, lathes, mills, and grinding machines. Submersible or pedestal-mount configurations designed for coolant sump installation.

Coolant-Compatible Materials

Constructed from materials compatible with water-soluble cutting fluids, synthetic coolants, and semi-synthetic coolants. Not designed for petroleum-based cutting oils — verify compatibility before use.

Continuous-Duty Motor

Motor is rated for continuous operation — the pump runs whenever the machine runs. Designed for the duty cycle of a production machine tool, not a general-purpose pump with intermittent operation.

Compact Sump-Mount Design

Compact design fits within standard machine tool coolant sumps. The pump mounts directly in the sump without additional support structure — minimizing footprint and simplifying installation.

Self-Priming from Shallow Sumps

Low net positive suction head requirements allow reliable priming even when coolant levels are low. Important for machines with small sumps where coolant level fluctuates during operation.

TEFC / Coolant-Sealed Motor

Sealed motor prevents coolant and mist intrusion into windings — the leading cause of coolant pump motor failure in machine tool applications where coolant splashing is unavoidable.

Technical Specifications
Model Number 4230-97
Series Bronze Coolant Recirculating
Category Coolant Pumps
Horsepower 1/25 HP
Voltage 230V
Max Flow Rate 8 GPM
Max Head 10 Ft.
Max Temperature 200° F
Key Features
Cast Bronze Construction
No Bottom Bearing!!!
Brass Column and Impeller Shaft
Bronze Self-Cleaning Open Impeller
3/8˝ NPT Discharge Port
Fiber Gasket
Maximum Temperature 200° F
Maximum Flow 8 GPM
Maximum Head 10 Ft.
Available with 115 VAC Single Phase
1/25 HP Totally Enclosed Fan Cooled
Solids Handling and Fine
Available with 115 VAC or 230 VAC Single Phase
1/25 HP Totally Enclosed Fan Cooled (TEFC) Motor
Bronze Self-cleaning Open Impeller
QSP – Quick Ship Pumps
3/8” NPT Discharge Port
Performance Summary
Max Flow Rate 8 GPM
Max Head 10 Ft.
Max Fluid Temperature 200° F
All Models — Bronze Coolant Recirculating
Model HP Type Frame Voltage Phase Casing Seal Weight List Price
4230-97 1/25 HP 230
4231-97 1/25 HP TEFC 230 Bronze 230 lbs 4

★ Highlighted = this product (4230-97). All models share the same casing and spare parts. QSP = ships within 24 hours.

Important Notices
Fluid compatibility For use with non-flammable, non-abrasive liquids compatible with pump component materials. Verify chemical compatibility before use.
Seal compatibility Always verify seal material compatibility with your specific fluid and chemical conditions.
Electrical Requires a properly sized, grounded branch circuit. Do not use an extension cord. Protect motor with a properly sized thermal overload relay.
Temperature limit Maximum fluid temperature 200° F. Exceeding this limit will damage seals and motor insulation.
Available Documentation
✓ Spec Sheet — Bronze Coolant Recirculating Series
✓ Repair Parts Manual — Specifications Information and Repair Parts Manual 4230-97 a
✓ Price Sheet — Current list pricing
Need the spec sheet, repair manual, or price sheet? Contact PumpStop and we'll send it over.
Before You OrderConfirm voltage, phase, and enclosure type are correct for your installation. All models in the Bronze Coolant Recirculating series share the same casing and impeller — only the motor configuration differs. For configuration guidance, chat or call (781) 281-8905. List pricing shown — contact PumpStop for distributor pricing.
