Description

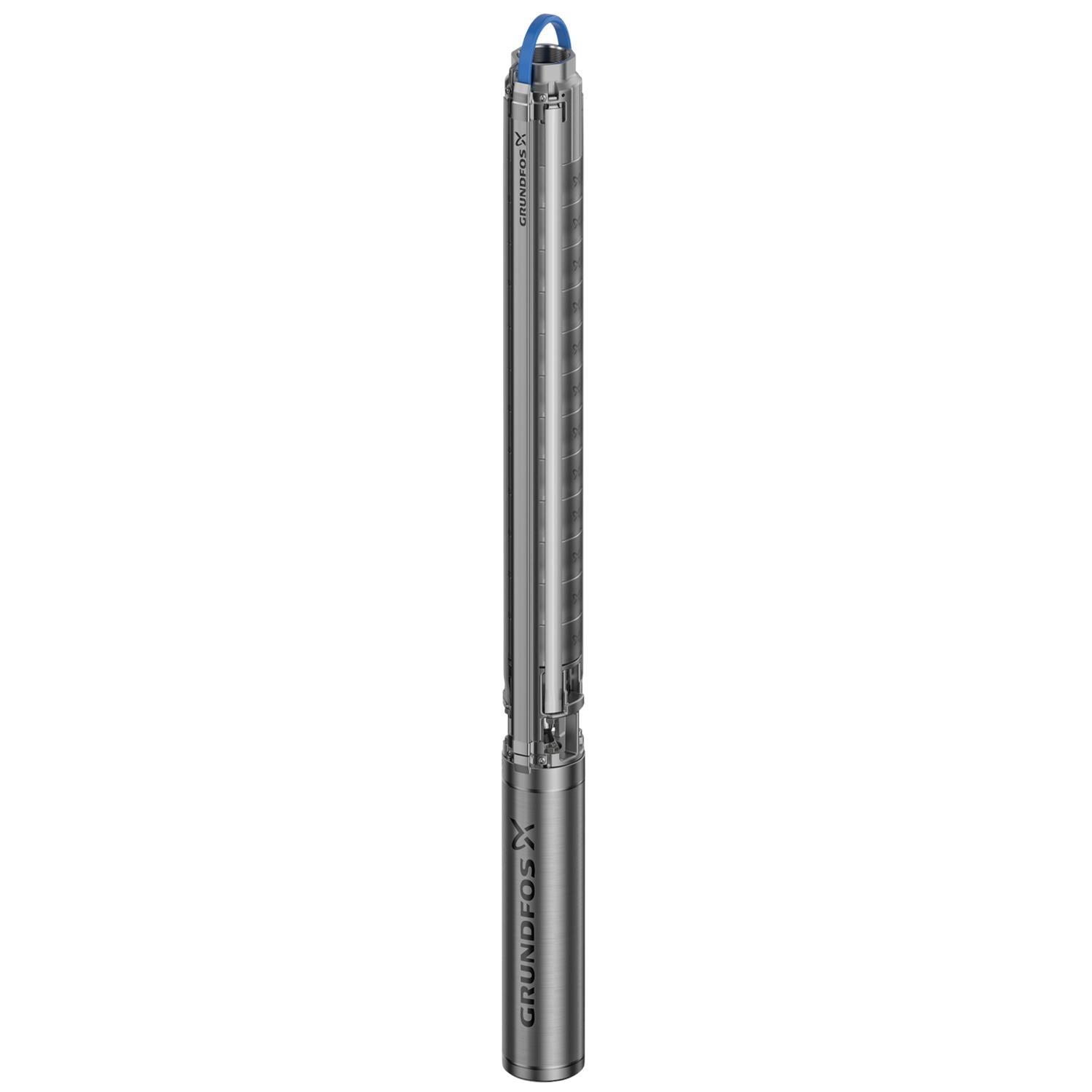

35S15-6 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.
Maximum operating pressure
217.56 psi
Power factor 1
0.72
Type of connection
NPT(F)
Rated voltage
3 x 460 V
Thermal protec
external
KVA code
M
Starting current
5.1
Liquid temperature range
5 .. 104 °F
Insulation class (IEC 85)
B
Built-in motor protection
NONE
Net weight
35.5 lb
Rated speed
3450 rpm
Axial load max
772 lb
Gross weight
38.8 lb
Rated power - P2
1.5 HP
Size of connection
1 1/2 inch
Maximum outlet pressure
78.32 psi
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
1.5 HP
Shaft
Product name:35S15-6
Rated current
3.65 A
Service factor
1.3
Windings
Enamelled
Motor type
MS402
Motor diameter
4 inch
Minimum borehole diameter
4.13 in
Motor flange design
NEMA
DOE Pump Energy Index CL
0.87
Pump speed on which pump data are based
3450 rpm
Stages
6
Shaft seal for motor
LIPSEAL
Approvals
CULDWUS,CCSAUS
Rated flow
36.5 US gpm
Model
A
Version
T40
Diameter
4.13 in
Motor
Stainless steel
Approvals for drinking water
PROP65
Return valve
YES
Rated head
125.3 ft
Type
MS402
Curve tolerance
ISO9906:2012 3B
Motor version
T40
Impellers
NONE
Valve
YES
Connection
1 1/2 inch
Impeller
Stainless steel
Number of reduced-diameter impellers
NONE
Pump
1.5 HP
